Connecting components with
digital audio input/output jacks

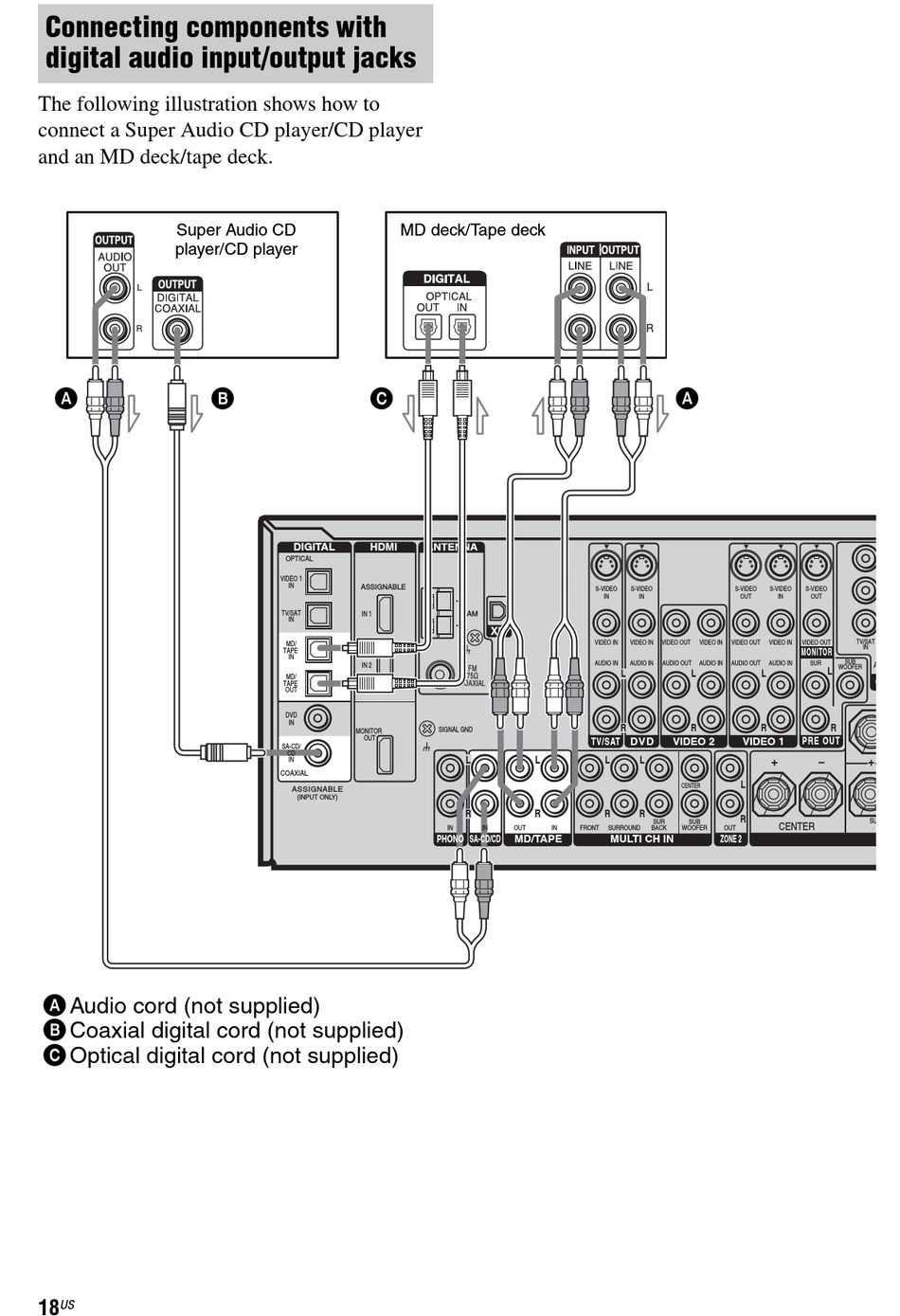

The following illustration shows how to
connect a Super Audio CD player/CD player
and an MD deck/tape deck.
Super Audio CD
player/CD player
A
A Audio cord (not supplied)
B Coaxial digital cord (not supplied)
C Optical digital cord (not supplied)
18
US
B
C
DIGITAL
HDMI
OPTICAL
VIDEO 1
IN
ASSIGNABLE
TV/SAT
IN 1
IN
MD/
TAPE
IN
IN 2
MD/
TAPE
OUT
DVD
IN
MONITOR
OUT
SA-CD/
CD
IN
COAXIAL
ASSIGNABLE
(INPUT ONLY)
MD deck/Tape deck
ANTENNA
AM
XM
SIGNAL GND
L
L
R
R
IN
IN
OUT
IN
PHONO SA-CD/CD
MD/TAPE
A
S-VIDEO
S-VIDEO
S-VIDEO
IN
IN
OUT
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO IN
AUDIO OUT
AUDIO IN
AUDIO OUT
L
L
R
R
TV/SAT
DVD
VIDEO 2
VIDEO 1
L
L
L
CENTER
R
R
R
SUR
SUB
FRONT
SURROUND
BACK
WOOFER
OUT
MULTI CH IN
ZONE 2
S-VIDEO
S-VIDEO
IN
OUT
VIDEO IN
VIDEO OUT
TV/SAT
IN
MONITOR
SUB
AUDIO IN
SUR
A
WOOFER
L
L
C
R
R
PRE OUT
+
+
SU
CENTER
S
