Hooking up a satellite tuner

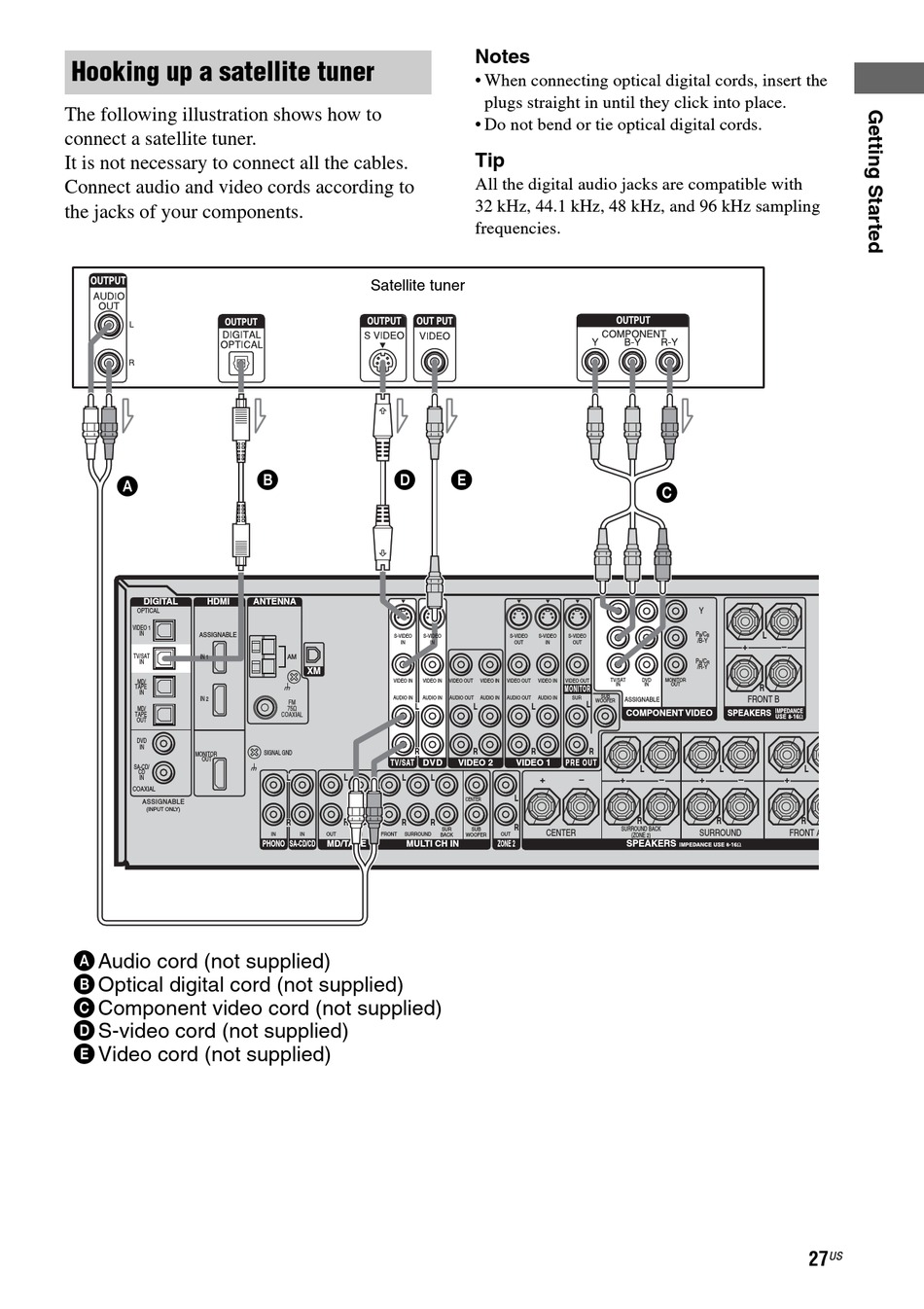

The following illustration shows how to
connect a satellite tuner.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
A
DIGITAL HDMI
OPTICAL
VIDEO 1
IN
ASSIGNABLE
TV/SAT
IN 1
IN
MD/
TAPE
IN
IN 2
MD/
TAPE
OUT
DVD
IN
MONITOR
OUT
SA-CD/
CD
IN
COAXIAL
ASSIGNABLE
(INPUT ONLY)
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D S-video cord (not supplied)
E Video cord (not supplied)

Satellite tuner

B D
ANTENNA
S-VIDEO S-VIDEO
IN
AM
XM
VIDEO IN VIDEO IN
AUDIO IN AUDIO IN
L
R
SIGNAL GND
TV/SAT DVD
L
L L
R R R
IN IN OUT IN FRONT SURROUND
PHONO SA-CD/CD MD/TAPE MULTI CH IN
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
