Bloomfield SS2 SERIES Program Manual

Dual headed satellite brewing system
Hide thumbs Also See for SS2 SERIES:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

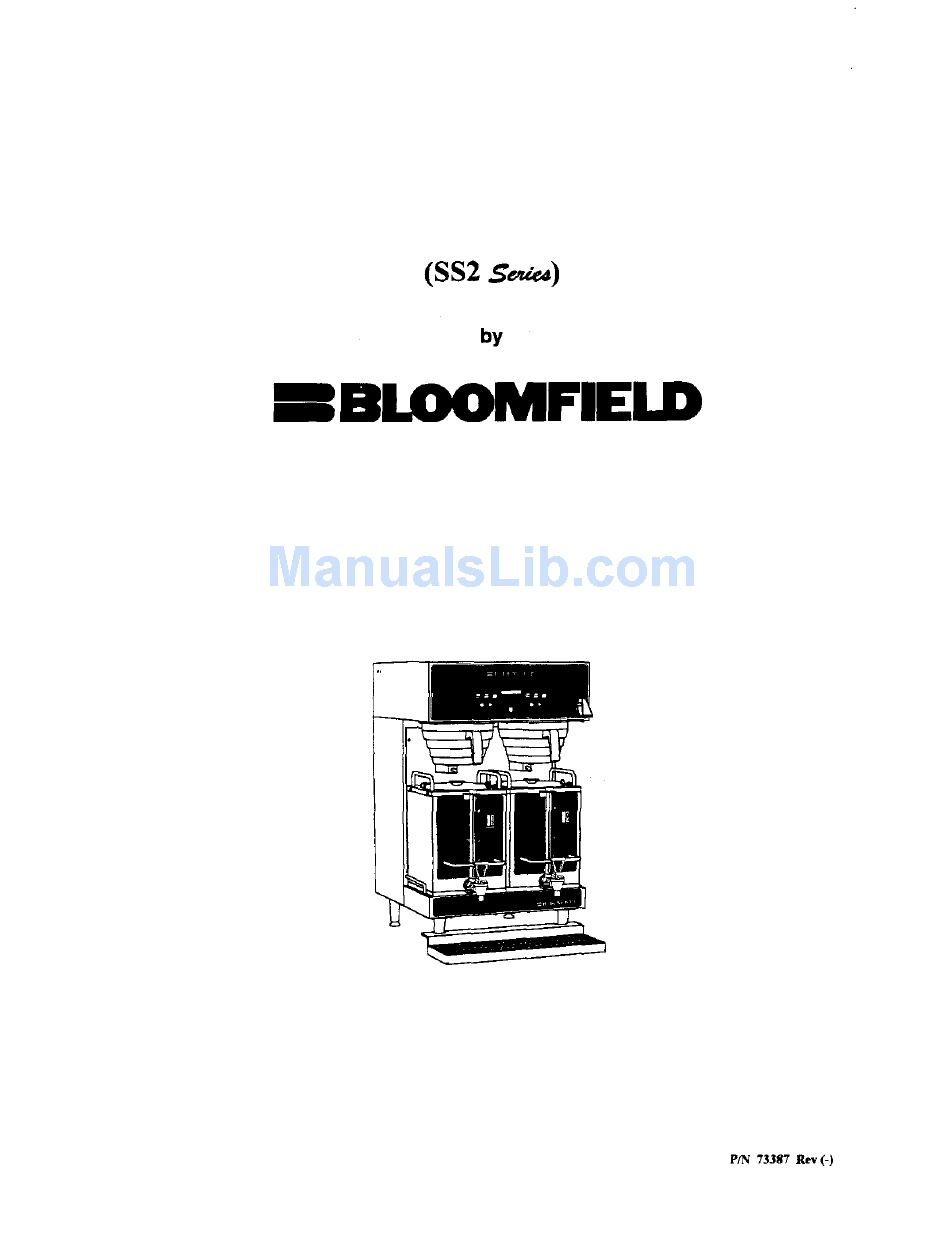

PROGRAM MANUAL
for
Dual Headed Satellite Brewing System
B l o o m f i e l d I n d u s t r i e s
2 Erik Circle
PO Box 280
Verdi, Nevada 89439 U.S.A.
Fax (800) 356-5142
Ph (702) 345-0444
All initial installation and setup should be performed on this model before using this Program Manual
(Refer to Installation Manual Bloomfield Part number 73386)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS2 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Bloomfield SS2 SERIES

Summary of Contents for Bloomfield SS2 SERIES

  • Page 1 2 Erik Circle PO Box 280 Verdi, Nevada 89439 U.S.A. Fax (800) 356-5142 Ph (702) 345-0444 All initial installation and setup should be performed on this model before using this Program Manual (Refer to Installation Manual Bloomfield Part number 73386)
  • Page 2 PO Box 280 Verdi, Nevada 89439 U.S.A. Fax (800) 356-5142 Ph (702) 345-0444 AU initial installation and setup should be performed on this model before using this Program Manual (Refer to Installation Manual Bloomfield Part number 73386) P/N 73387 Rev (-)
  • Page 3 Power: OFF mode Sequence: (Stop, Stop, Start, Start) When the system is first turned on, the following message is displayed along with a beep: Bloomfield Off Mode. then, after a short delay, four beeps are heard and the system enters Off Mode, the valves and the heater are turned off, and no message is displayed.
  • Page 4 Bloomfield Satellite System SS2 M a n u a l P r o g r a m C o n t e n t s Starting Up ................. . On Mode ................. Brewing Coffee ................Brewing ................Brew Cancellation ............

  • Page 5: Table Of Contents

    Bloomfield Satellite System SS2 M a n u a l P r o g r a m C o n t e n t s Starting Up .............. .;....On Mode ................Brewing Coffee ................Brewing ................Brew Cancellation ............

  • Page 6: Brewing

    When the system is turned on, the time is flashing. This indicates that the time is invalid and requires adjustment. This can be accomplished via the Service Mode Menus (see p.4: Changing the Current Day of Week and Time). From On Mode, the user can press the Left or Right Start key to initiate a brew, the Brew Volume keys to select the brew volume, or Power key to turn off the system (Off Mode).

  • Page 7: Fault Detection

    Brew Cancellation Brewing can be canceled at any time by pressing the Stop key. Once canceled, there will not be any indication as to when it will be safe to begin another brew. If brewing canceled, the valves close and the Brew LED turns off, two beeps are heard and “Cncl”...
  • Page 8 Changing the Current Day of Week and Time The current day and time are used for display in On mode, and are needed for the After-Hours and Timer On/Off functions. To change the day or time, press Power to go to Off Mode, then press (Left-Side) Stop-Stop-Start-Start. Changing the Current Day of the Week Day: Mon When (+) or (-) is pressed, the day changes.

  • Page 9: Initial Settings

    There are a total of 4 menus in service mode: Description Menu Initial Settings Language, temperature unit, volume unit Brew Settings Brew temperature, current temperature, max. water temperature, brewing volumes/times, coffee quality time, heater element, After Hours mode options, timer, keypad lockout Total water used through system, in flow rate, service number Service &...

  • Page 10: Brew Settings

    Changing Brew Settings (Service Mode) Initial Settings To arrive at this menu, first arrive at the menu, then press the Menu key. Brew Settings This menu is intended for changing the brew temperature, brewing volumes/times, heater element, After-Hours mode options, timer options,. and keypad lockout. Again, these are intended for advanced users only. defaults Reloading By pressing the Item key, we arrive at the-first menu item:.

  • Page 11: Brewing Volumes/Times

    Changing the brewing temperature Proper brew temperature is prerequisite to high quality coffee. 187°F Brew Temp.: By pressing (+)/(-) the value can be adjusted from 185°F to 206°F. The value will “wrap-around” if (-) is pressed at 185°F and jump to 206’F. Likewise, if (+) is pressed at 206'F, the value will jump to 185°F. All value-related adjustments will have this characteristic.
  • Page 12 Brew time settings For Standard Brew [A] and [D] must be set the same time and [E] will be the total of [AD] plus additional time to drip out. For optional (varying) Brew times, each volume [A] through [E] must be set. Description Menu Setting time in which the dump...

  • Page 13: Setting Symmetric Brew Settings

    Pressing the Item key brings the user to the settings for volume #2, #3, and so on until #6. Recall that volumes #1,2 and 3 correspond to the ½ gallon, 1 gallon and 1½ gallon selections for the left satellite, and that volumes #4, 5 and 6 correspond to the ½ gallon, 1 gallon and 1½...

  • Page 14: Keypad Lockout

    Timer: Off If Timer is Off, then the following four menu items (with their defaults) used for setting time and date of the timer are skipped when the Item key is pressed. The first two are used to set the on and off times of the brewer during the weekdays: wkday on 07:OOa wkday off 11:OOp...

  • Page 15: Inflow Rate

    Inflow Rate InflRate:0.75G/m Allows adjustment of the inflow rate in gallons per minute. This is used to calculate the total brew volume using the total time in which the inlet valve has been left opened. Service Phone Number implemented) (not Service phone number can be changed using a password.
