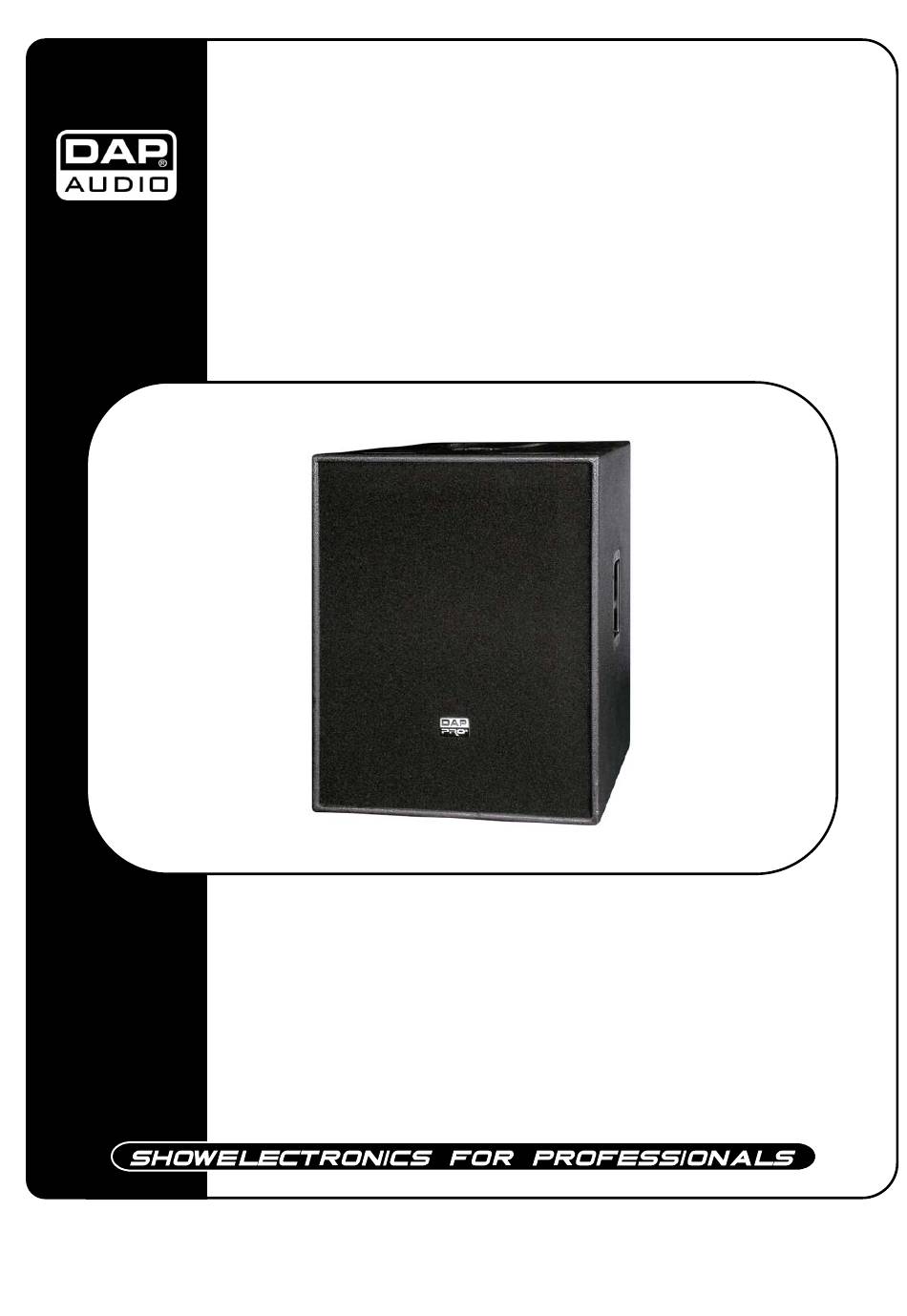

- Page 1 X-18BA ORDERCODE D3255...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio X-18BA brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
- Page 3 DAP Audio DAP Audio X-18BA Product Guide Warning..…...................…………………………………………...... Unpacking Instructions………………………………………………………………………………………………...….. Safety-instructions………………………………………………………………………………………………………...… Operating Determinations.……………………………………………………………………………………………..Return Procedure..............................Claims..................................Description..…................……….…………………………………..... Features………………………………………………………………………………….………………….…....Overview ..…………………………………………………………………………………..……........ControlPanel..…………………………………………………………………………………….……......Installation..............……………………………..…………………………....Set Up and Operation..............……..…………………………….……....Connection Cables......…........………..………….…….………….…..... Maintenance………......…........………..………….…….………….…....Replacing the Fuse................…………………….…………………....Troubleshooting………......…........………..………….…….………….…....... Product Specifications..............……………….…….………………….......
- Page 4 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP X-18BA • IEC cable • User manual...
- Page 5 • Do not switch the system on and off in short intervals, as this would reduce the system’s life. • Do not open the device and do not modify the device. • Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
-
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

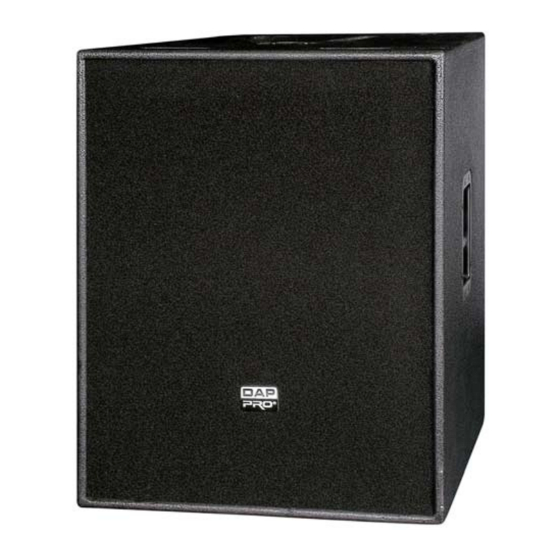

Description of the device Features The X-18BA is an active 18" Sub/ Bass speaker: • Lightweight amplifier and power supply. • Full 2-way active crossover inside. • User variable crossover frequency from 60-250Hz, 24dB/oct. • Auxiliary High Out for other active full range speaker systems. -
Page 8: Control Panel
Controlpanel Fig. 2 Volume Use to adjust the input volume level for the X-18BA. 2) Limiter LED We suggest you to set the input level with the Volume (1) control in such way that the LED blinks occasionally yellow. If the LED blinks red or lights red continuously we strongly suggest you to lower the Volume (1) control. -
Page 9: Installation
This is the main Power switch. Press to turn the X-18BA on. Installation Remove all packing materials from the X-18BA. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Troubleshooting
Maintenance The X-18BA requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 12: Product Specifications
Product Specifications 18" Active Vented PA Subwoofer Loudness Switch Ground Lift Switch Auxiliary XLR High Out Built-in Subsonic Filter Built-in Soft Limiters Woofer: ER-1899L-6 6 Ohm, 100 mm Voice Coil Amplifier Output Power Low: 600 Watt RMS Freq. Response (-3, -6 dB): 35 – 250 Hz Freq. - Page 13 2010 Dap Audio.
