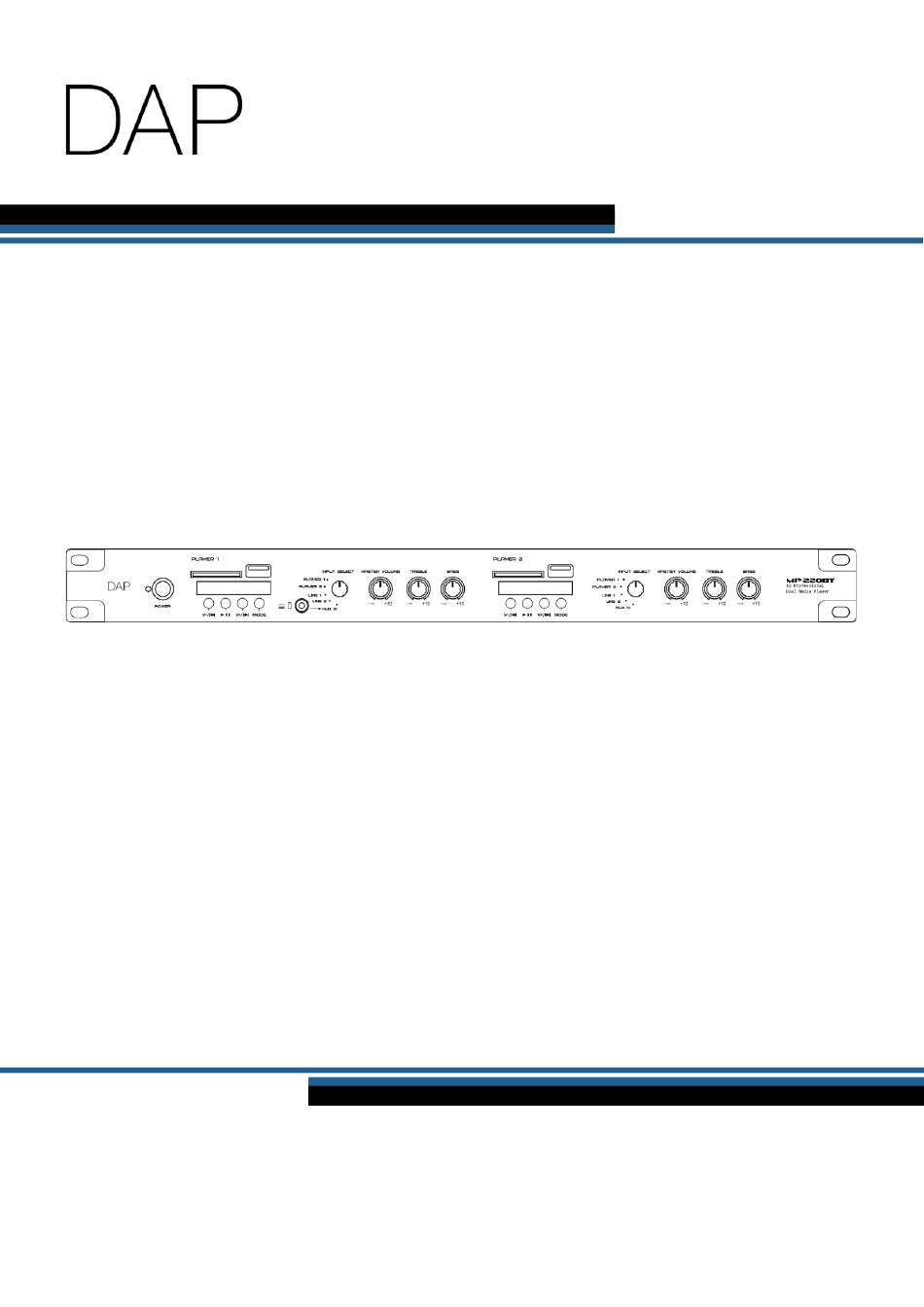

- Page 1 USER MANUAL ENGLISH MP-220BT Product code: D1245 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 MP-220BT Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
MP-220BT Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................6 Requirements for the User .......................... - Page 4 MP-220BT Signal Priority ............................22 Operation ..............................22 Adjusting Settings ..........................22 Troubleshooting ..............................23 Maintenance ..............................23 Safety Instructions for Maintenance ......................23 Preventive Maintenance ..........................23 Basic Cleaning Instructions ........................24 Corrective Maintenance ..........................24 Deinstallation, Transportation and Storage ....................24 Disposal ................................24 10. Approval ................................24...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP MP-220BT ● Schuko to IEC power cable (1,3 m) ● FM antenna ●... -
Page 6: Symbols And Signal Words
MP-220BT Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
MP-220BT Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 8: Requirements For The User
MP-220BT Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device. -
Page 9: Description Of The Device

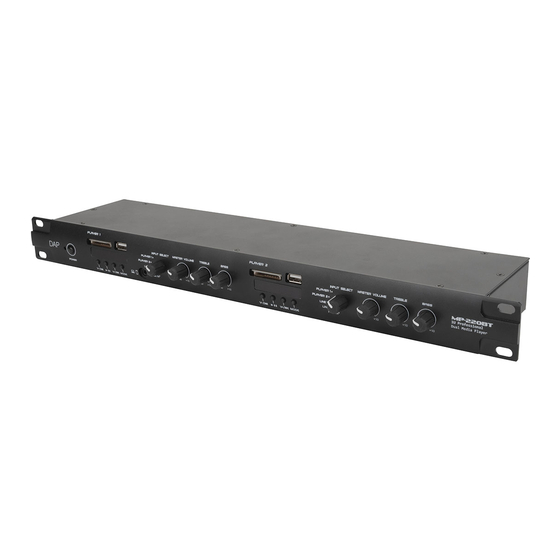

Description of the Device The MP-220BT is a dual media player. It can be installed in a standard 19-inch rack. It supports multiple media sources, such as FM radio, line-level input devices, USB/SD card and Bluetooth. The device can be operated manually or with the supplied IR remote control. -
Page 10: Media Player
MP-220BT Media Player Fig. 04 20) SD card connector IN 21) USB-A connector IN 22) Input selector 23) Master volume control 24) Treble level control 25) Bass level control 26) LED display and control buttons Product Specifications Model: MP-220BT Electrical: Input voltage: 220–240 V AC, 50 Hz... -
Page 11: Optional Accessories
MP-220BT Operation and control: Control panel: LED display and buttons Connections: Power connections: Schuko cable (1,3 m) Stereo input connections: Auxiliary input connections: balanced 3,5 mm TRS jack Main output connections: RCA, Phoenix terminal connectors Paging microphone input connections: 5-pin XLR... -
Page 12: Installation And Setup
MP-220BT Installation and Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Safety Instructions for Installation Attention Make sure there is enough space for ventilation around the device. -
Page 13: Connecting To Power Supply
MP-220BT Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage or frequency to the device. The device is equipped with the input voltage selector (17) that can be used for selecting of the input voltage. -
Page 14: Setup Example
MP-220BT Setup Example Fig. 06 Switching On/Off The device has a power button. ● Press the power button (03) to switch on the device. If the power LED indicator (Blue) (02) is on, the device is powered. ● Release the power button (03) to switch off the device. -
Page 15: Operation
MP-220BT Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for use as a professional dual media player. It is suitable only for indoor installation. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 16: Fm Radio Mode
Press the MODE button (B) until the display shows: The display will be blinking continuously. For this function to work, you need to pair your mobile device and the MP-220BT via Bluetooth. Note: Bluetooth can only be used as a means to receive wireless audio signals. It is not possible to pair the device with other devices via Bluetooth. -
Page 17: Usb/Sd Mode
To use the device in the Bluetooth mode: Start Bluetooth on your mobile device. 02) On your mobile device, scan for the available Bluetooth devices. The IDs of the MP-220BT are “DAP PLAYER 1” (for media player 1) and “DAP PLAYER 2” (for media player 2). -
Page 18: Adjusting Bass/Treble/Volume
MP-220BT Adjusting Bass/Treble/Volume Turn the master volume control (23) to the left/right to decrease/increase the master volume. The adjustment range is from –∞ to +10 dB. Turn the treble level control (24) to the left/right to decrease/increase the treble level. The adjustment range is from –∞... -
Page 19: Fm Radio Mode
MP-220BT Button Description Function Mute Switch mute on/off (all functions) On/Off Switch the stand-by mode on/off ● Press to select presets (FM) ● Press to select music files (USB/SD) Toggle Toggle functions Store Save FM presets Play/Pause Press to start/stop playback (Bluetooth, USB/SD) -
Page 20: Saving Presets
The display shows: The display will be blinking continuously. For this function to work, you need to pair your mobile device and the MP-220BT via Bluetooth. See 5.2.2. Bluetooth Mode on page 15 for more information. On your mobile device, search for and play any music/video file or visit streaming services. -
Page 21: Usb/Sd Mode
MP-220BT USB/SD Mode In this menu you can play music files from a USB flash drive or an SD card. Insert an SD card into the SD card connector IN (20) or a USB flash drive into the USB-A connector IN (21). -
Page 22: Setting The Equalizer
Connect the paging microphone to the 3-pin XLR paging microphone connector IN (27) (Fig. 13). Fig. 13 Connect the 5-pin XLR connector OUT (31) of the paging microphone holder to the 5-pin XLR paging microphone connector IN (07) of the MP-220BT. Product code: D1245... -
Page 23: Dip Switches
MP-220BT DIP Switches Use the DIP switches (08) to set the signal priority and to activate phantom power. Fig. 14 Phantom Power To be able to use the paging microphone, you need to activate phantom power. Move the DIP switch 3 to ON position, to activate phantom power. - Page 24 MP-220BT Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. Refer servicing to instructed or skilled persons.
- Page 25 Approval Hereby, Highlite International declares that the device MP-220BT, product code D1245, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available at the respective product page on the website of Highlite International (www.highlite.com).
- Page 26 MP-220BT Product code: D1245...
- Page 27 MP-220BT Product code: D1245...
- Page 28 ©2022 DAP...
