MANUAL V2
ENGLISH
DRX Active Series
Productcode:
D3634
D3635
D3636
D3637
D3640
D3641
D3642
D3647
Productname:
DRX-8A
DRX-10A
DRX-12A
DRX-15A
DRX-10BA
DRX-12BA
DRX-15BA
DRX-18BA
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRX Active Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DAPAudio DRX Active Series

  • Page 1 MANUAL V2 ENGLISH DRX Active Series Productcode: D3634 D3635 D3636 D3637 D3640 D3641 D3642 D3647 Productname: DRX-8A DRX-10A DRX-12A DRX-15A DRX-10BA DRX-12BA DRX-15BA DRX-18BA Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    DRX Active Series Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Connection with the mains ............................4 Return Procedure ................................4 Claims ....................................4 Features ....................................5 Accessories ..................................5 Rear Panel Description ..............................6 DRX-1OBA/12BA/15BA/18BA SUB ..........................
  • Page 3: Warning

    DRX Active Series Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4 DRX Active Series Do not open this device. Risk: hazardous radiation exposure. • Do not run the output of any amplifier channel, back into another channel’s input. • Do not switch the system on and off in short intervals, as this would reduce the system’s life.
  • Page 5: Connection With The Mains

    DRX Active Series Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE...
  • Page 6: Features

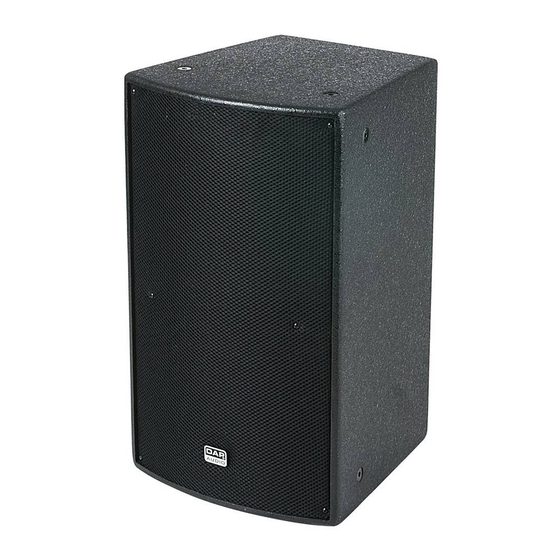

    DRX Active Series Features These series products include active speaker cabinets and subwoofer. ACTIVE SPEAKERS: 1. DRX-8A 2. DRX-10A 3. DRX-12A 4. DRX-15A SUBWOOFER: 1. DRX-10BA 2. DRX-12BA 3. DRX-15BA 4. DRX-18BA These products are design to provide a cost effective high grade solution, and they can be used for all kinds of applications, such as churches, conference center, disco, etc.
  • Page 7: Rear Panel Description

    DRX Active Series Rear Panel Description DRX-1OBA/12BA/15BA/18BA SUB ON-OFF main power switch LINK LEFT/RIGHT ON XLR CONNECTOR Input AC power socket with main fuse SIGNAL/LIMIT, Red LED, indicate ON status POWER, Green LED, indicate ON status VOLUME main power amplifier control...
  • Page 8: Drx-8A/10A/12A/15A

    DRX Active Series DRX-8A/10A/12A/15A DRX-8A DRX-10A/12A/15A POWER LED INDICATOR GND Switch MIC IN with balanced XLR & TRS for AC Input Voltage Selector Microphone LINE OUT at 0dB on XLR & TRS connector Main Power Switch Signal Limit LED AC Power Inlet with AC Fuse...
  • Page 9: Connection Examples

    DRX Active Series Connection Examples Two Active Subwoofers & Two Active Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT of your active subwoofers.
  • Page 10: One Active Subwoofer & Two Active Satellite Speakers

    DRX Active Series One Active Subwoofer & Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT LEFT/RIGHT of your active subwoofer.
  • Page 11: Two Active Satellite Speakers

    DRX Active Series Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT LEFT/RIGHT of your active satellite speakers.
  • Page 12: Frequency Response Diagram

    DRX Active Series Frequency Response Diagram DRX-10BA/12BA/15BA/18BA...
  • Page 13: Drx-8A/10A/12A/15A

    DRX Active Series DRX-8A/10A/12A/15A...
  • Page 14: Connection Cables

    DRX Active Series Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.
  • Page 15: Technical Specifications

    DRX Active Series Technical Specifications DRX-10BA Sub Model Active System Type 10" Active subwoofer Speaker Cabinet Continuous Power 600W Frequency Response 50Hz-120Hz(- 6dB) SPL (1W1M) 94 dB /121. 8dB Max Transducer Low 10" woofer -2.5" Voice Coil . with ventilation...
  • Page 16: Drx-15Ba Sub

    DRX Active Series DRX-15BA Sub Model Active System Type 15" Active subwoofer Speaker Cabinet Continuous Power 600W Frequency Response 45Hz - 125Hz (-6dB) SPL (1W1M) 97 dB /124.8 dB Max Transducer Low 15" woofer - 2.5" Voice Coil. with ventilation...
  • Page 17: Drx-8A

    DRX Active Series DRX-8A Model System Bi-Amp. Continuous power LOW: 150W / HIGH: 25W LOW-input/-5dBu 100Hz, out load 40, THD<O.5% Total harmonic distortion HI-input/-8dBu 15kHz, out load 80, THD<0.5% S/N Ratio LOW: > 80dBu / HI: > 65dBu Line input Level -5dBu ±1 dBu...
  • Page 18: Drx-12A

    DRX Active Series DRX-12A Model System Bi-Amp. Continuous power LOW: 200W / HIGH:30 W LOW-input/-5dBu 100Hz, out load 40, THD<O.S% Total harmonic distortion HI-input/-5dBu 1SkHz, out load SO, THD<O.S% S/N Ratio LOW: > 80dBu / HI: > 65dBu Line input Level -5dBu ±1dBu...
  • Page 19: Troubleshooting

    DRX Active Series Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
  • Page 20: Notes

    DRX Active Series Notes...
  • Page 21 ©2015 DAP Audio...
