Summary of Contents for DAPAudio RX-12

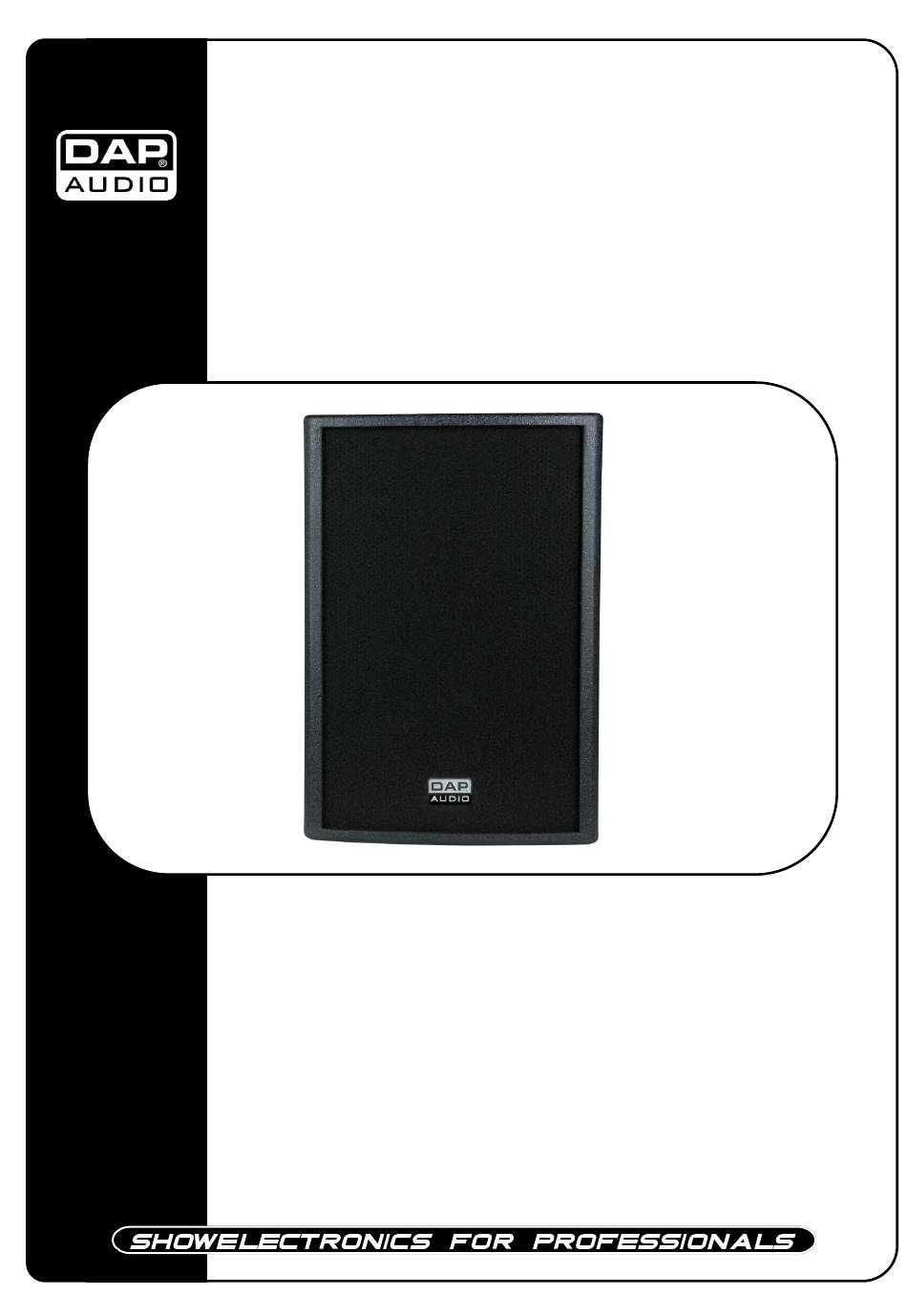

- Page 1 RX-12 ORDERCODE D3312 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio RX-12 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
- Page 3 DAP Audio DAP Audio RX-12 Product Guide Warning ..................................2 Safety-instructions ..............................2 Operating Determinations ..........................3 Return Procedure ..............................3 Claims ..................................3 Description of the device ............................4 Features ................................. 4 Back panel ................................5 Installation ................................... 5 Maintenance ................................
-
Page 4: Safety Instructions
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • RX-12 • User manual CAUTION! -
Page 5: Operating Determinations
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. Prevent distortion! Make sure that all components connected to the RW-15 MKII have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. -
Page 6: Description Of The Device

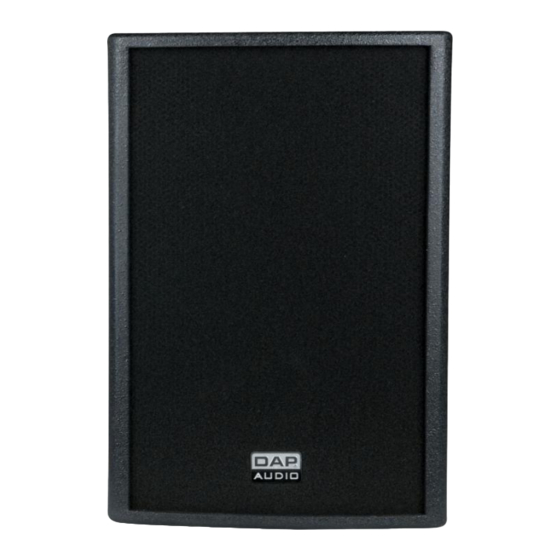

Description of the device Features The DAP RX-12 is a passive 12/1.4" speaker. • High driver with 1.375" Titanium Dome • Stylish design with structure paint finish • More sound pressure due to new woofer • Engineered in the Netherlands The DAP RX series is the upgrade of the popular RW series. -
Page 7: Back Panel
Only the 1+ and 1- terminal of the Speakon sockets are connected. Installation Remove all packing materials from the RX-12. Check that all foam and plastic padding is removed. Connect all cables. Damages caused by non-observance are not subject to warranty. -
Page 8: Product Specifications
90° x 50° • Dimensions (W x H x D): 422 x 613 x 373 mm • Net Weight: 21.2 kg Spare parts • SPZOM3006 RX-12 Bass speaker 12" • SPZOM30391 RX-12 High driver • SPZOM3022 RX-12 Crossover • SPZOM3022 RX-12 Horn Website: www.Dap-audio.info... - Page 9 2011 Dap Audio.
