Summary of Contents for DAPAudio WCSS-230

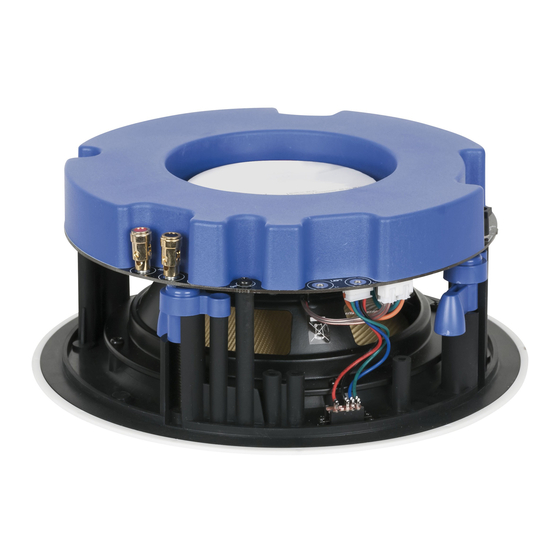

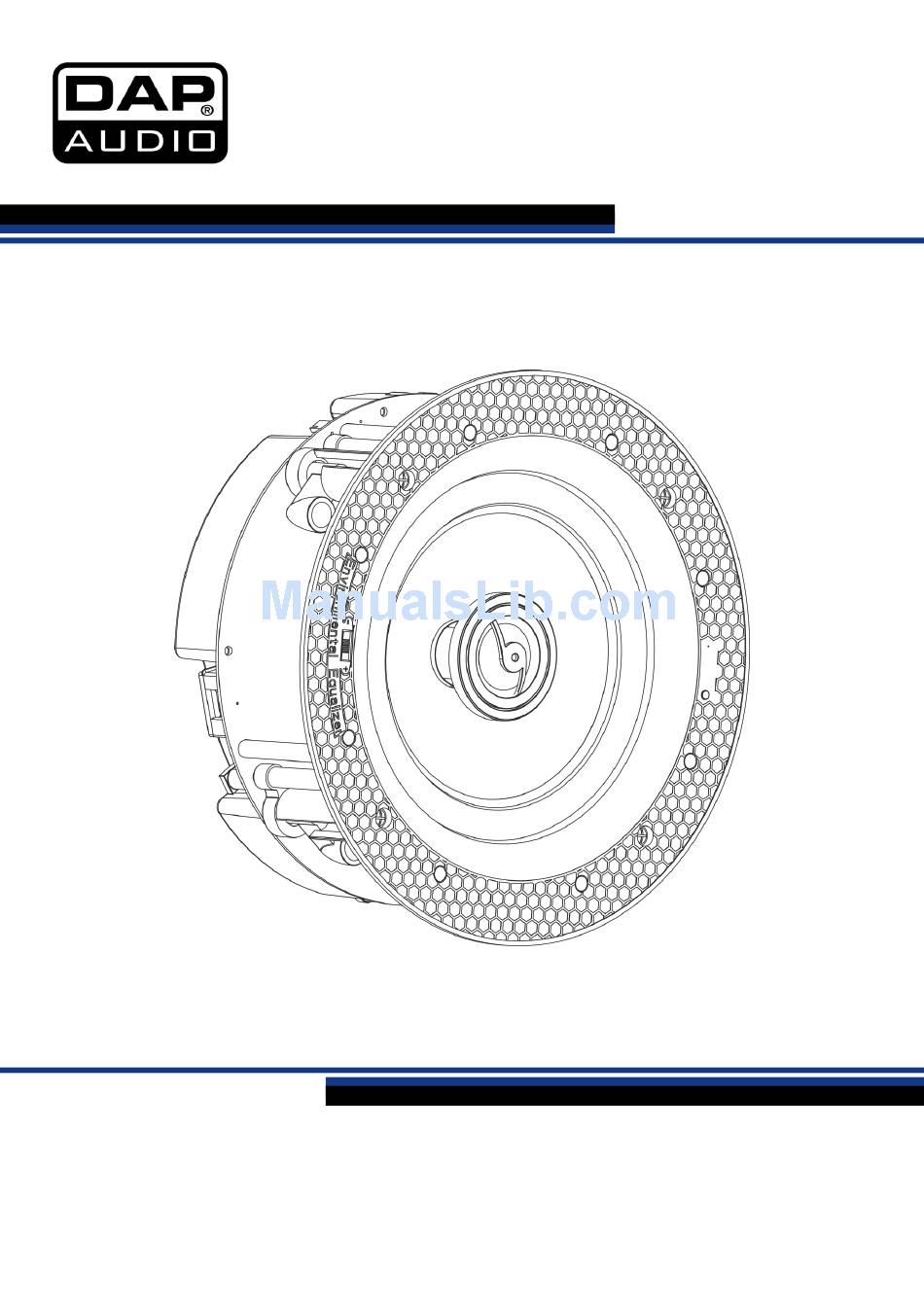

- Page 1 MANUAL ENGLISH WCSS-230 WiFi Speaker V1 Ordercode: D6450 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
WCSS-230 WiFi Speaker Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 6 Set Up and Operation ............................... 6 Software Test .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio WCSS-230 WiFi Speaker 24V DC/2,5A power adapter ... -
Page 4: Operating Determinations
Clean only with dry cloth. When making the hole in your ceiling to mount the WCSS-230, make sure there is sufficient clearance behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in poor sound quality and can damage amplifiers. -
Page 5: Return Procedure
WCSS-230 WiFi Speaker Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
Weight (Wi-Fi speaker): 1,8 kg Overview Fig. 01 LED indicator The LED indicates whether the WCSS-230 is paired with a Wi-Fi device or not. WPS button Press the button to pair devices or restore the default settings. 24V DC power IN Connect the speaker to the power supply, by means of the included power adapter. -
Page 7: Installation
R – (Black) Connect the device to stream stereo sound. Installation Remove all packing materials from the WCSS-230. Check if all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Software Test
WCSS-230 WiFi Speaker Software Test 01) Download Smart Sonix control software from Google Play(Android) or Apple App Store (IOS). 02) Before installation, test the Wi-Fi speaker to see if it functions properly. 03) Connect the Wi-Fi speaker to the power supply, by means of the included 24V DC power adapter. - Page 9 WCSS-230 WiFi Speaker 05) Run Smart Sonix and click “Add Device.” Fig. 04 06) Insert the router’s password and click “Next.” Make sure that the router is available. Fig. 05 Ordercode: D6450...
- Page 10 WCSS-230 WiFi Speaker 07) Press the WPS button (02) to configure network and click “Next.” Fig. 06 08) Wait briefly until the device is connected to the router. In case of connection failure, click “Retry” and repeat steps 6 and 7.
- Page 11 WCSS-230 WiFi Speaker 09) Name the device, according to the room in which the speaker is going to be placed. Fig. 08 10) You should now be able to find the speaker on the device list. If you have multiple Wi-Fi speakers, add and name all the devices accordingly.
- Page 12 WCSS-230 WiFi Speaker 11) Choose the device and play a song, using your phone, in order to test whether the device functions properly. If the test was successful, proceed to the installation of the speaker. Fig. 10 Ordercode: D6450...
-
Page 13: Installation Of The Speaker
WCSS-230 WiFi Speaker Installation of the Speaker 01) Use the included mounting hole template to cut out a hole in the ceiling. Fig. 11 02) Place the power adapter inside the wall/ceiling. Make sure that the adapter is not connected to the power supply. -
Page 14: Reset The Speakers
WCSS-230 WiFi Speaker 04) If you want to enjoy stereo sound, you can connect the passive speaker to the Wi-Fi speaker. Connect the passive speaker to the R+ and R- connectors (06/07) on the Wi-Fi speaker. Fig. 14 05) Connect the speakers to a TV set. Please connect the cables before installing the Wi-Fi speaker. -
Page 15: Personal Settings
WCSS-230 WiFi Speaker Personal Settings If your Wi-Fi speaker was named improperly, it is possible to rename it. Each Wi-Fi speaker sends wireless signal. In order to prevent your speakers from being jammed by others, you can protect them by installing a password. -
Page 16: Troubleshooting
WCSS-230 WiFi Speaker Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. Reset the speakers and check your software. 01) If your Wi-Fi connection is not of good quality, try connecting the Wi-Fi speaker to your router by means of a CAT-5 cable. -
Page 17: Dimensions
WCSS-230 WiFi Speaker Dimensions Ordercode: D6450... -
Page 18: Notes
WCSS-230 WiFi Speaker Notes Ordercode: D6450... - Page 19 WCSS-230 WiFi Speaker Ordercode: D6450...
- Page 20 ©2016 DAP Audio...
