- Page 1 MANUAL ENGLISH Xi Series Ordercode: D3540/D3541 D3542/D3543 D3544/D3545 D3546/D3547 Product name: Xi-5 Xi-6 Xi-8 Xi-10 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Xi-5/6/8/10 Table of contents Warning ....................................2 Safety Instructions ................................. 3 Operating Determinations ............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................7 Back ....................................8 Installation ................................... 8 Installation of the Phoenix Terminal Connector ...................... 8 Setup and Operation ................................ -
Page 3: Warning
Xi-5/6/8/10 Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Safety Instructions
Xi-5/6/8/10 Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: ● be qualified ● follow the instructions of this manual Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the system. -
Page 5: Operating Determinations
Xi-5/6/8/10 Operating Determinations If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The Xi speakers can be placed on a flat stage floor or mounted to any kind of truss with the mounting... -
Page 6: Return Procedure
Xi-5/6/8/10 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the... -
Page 7: Description Of The Device

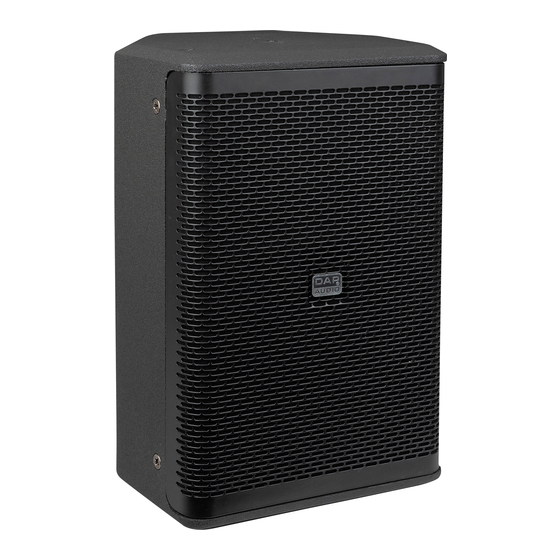

Description of the device Features The Xi series is a loudspeaker range for fixed audio installations. The series uses a Celestion HF Driver which extensively enhances the sound performance of the device. The Xi offers versatile installation possibilities: optional U-shape brackets, screw threads for the use of flying eyes or wall mount brackets. -
Page 8: Overview
Xi-5/6/8/10 Optional accessories: D3422HB – Hanging bracket for Xi-5 (black) D3422WHB – Hanging bracket for Xi-5 (white) D3423HB – Hanging bracket for Xi-6 (black) D3423WHB – Hanging bracket for Xi-6 (white) D3424HB – Hanging bracket for Xi-8 (black) D3424WHB – Hanging bracket for Xi-8 (white) D3425HB –... -
Page 9: Back
Xi-5/6/8/10 Back Fig. 02 01) Speakon connector IN 02) Speakon connector OUT 03) 4-pin Phoenix terminal connector Installation Remove all packing materials from the Xi. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Setup And Operation
Xi-5/6/8/10 Setup and Operation Before plugging the device in, always make sure that the power supply matches the product specification voltage. 01) Connect the devices to each other in one of the 2 ways: ● With Speakon cables. See Fig. 04 and Fig. 05 on pages 9–10 for more information. ●... -
Page 11: Xi-8/Xi-10 Setup
Xi-5/6/8/10 Xi-8/Xi-10 Setup Fig. 05... -
Page 12: Phoenix Terminal Connection Examples
Xi-5/6/8/10 Phoenix Terminal Connection Examples Xi-5/Xi-6 Setup Fig. 06... -
Page 13: Xi-8/Xi-10 Setup
Xi-5/6/8/10 Xi-8/Xi-10 Setup Fig. 07... -
Page 14: Maintenance
Xi-5/6/8/10 Maintenance The DAP Audio Xi requires almost no maintenance. However, you should keep the device clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 15: Product Specifications
Xi-5/6/8/10 Product Specifications Xi-5 (D3540/D3541) Xi-6 (D3542/D3543) ● ● Speaker system: 2-way Speaker system: 2-way ● ● Continuous power: 125 W Continuous power: 175 W ● ● Program power: 250 W Program power: 300 W ● ● Peak power: 500 W Peak power: 700 W ●... -
Page 16: Dimensions
Xi-5/6/8/10 Dimensions D3540/D3541 – Xi-5 D3542/D3543 – Xi-6 D3544/D3545 – Xi-8 D3546/D3547 – Xi-10... -
Page 17: Notes
Xi-5/6/8/10 Notes... - Page 18 Xi-5/6/8/10...
- Page 19 Xi-5/6/8/10...
- Page 20 ©2021 DAP Audio...
