Related Manuals for DAPAudio Xi-28 MKII
Summary of Contents for DAPAudio Xi-28 MKII

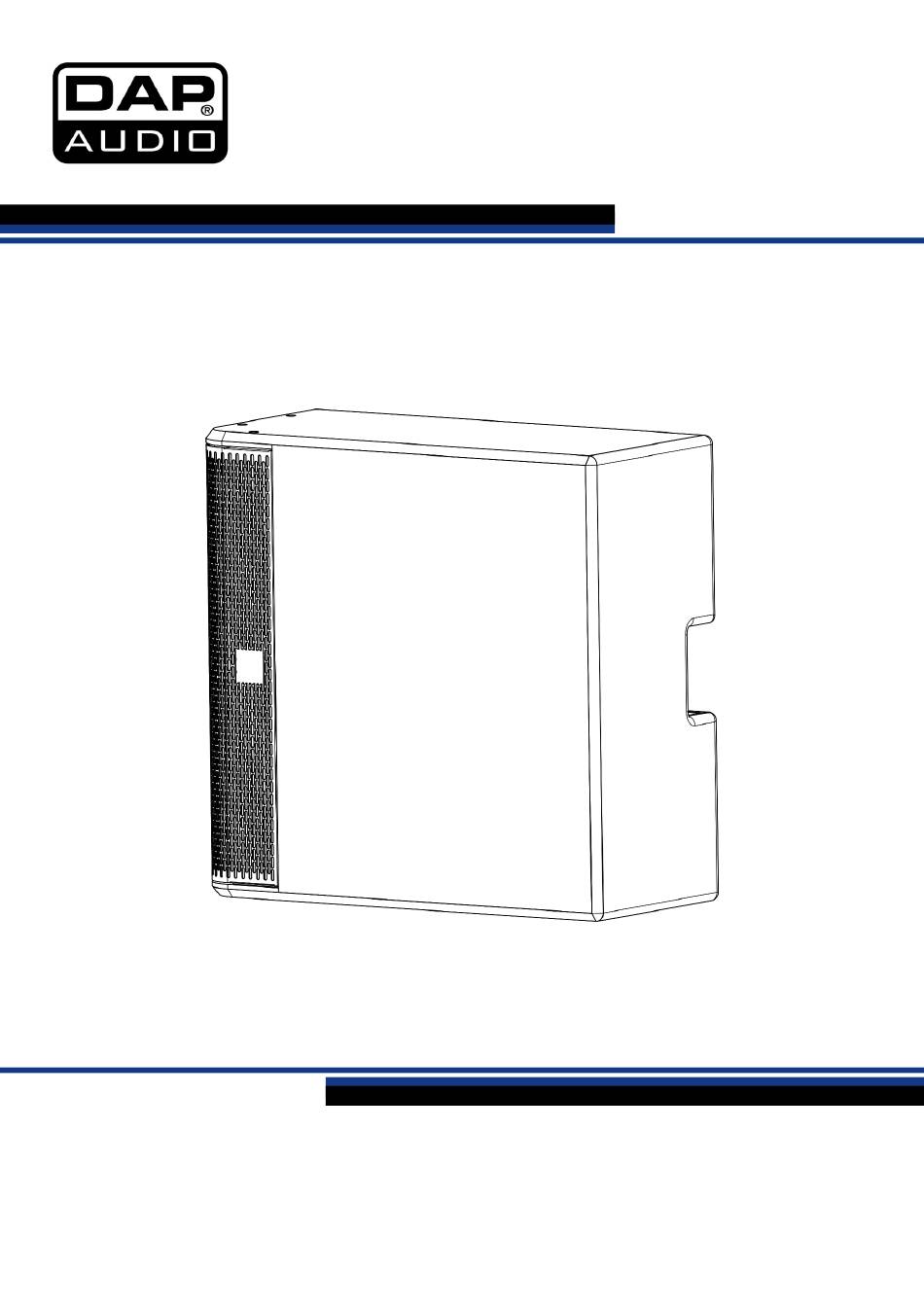

- Page 1 MANUAL ENGLISH Xi-28 MKII Ordercode: D3452/D3453 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Xi-28 MKII Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Features ..................................5 Overview ..................................6 Installation ................................... 6 Set Up and Operation ............................... 7 Bracket Assembly Instructions (D3426HB) ......................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Xi-28 MKII ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: ●... -
Page 4: Operating Determinations
Xi-28 MKII IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Never remove warning or informative labels from the unit. ● Never leave any cables lying around. -
Page 5: Return Procedure
Xi-28 MKII Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
Xi-28 MKII Description of the device Features The Xi MKII series is a loudspeaker range for fixed audio installations. The series uses a Celestion HF Driver which extensively enhances the sound performance of the unit. The Xi MKII offers versatile installation possibilities: optional U-shape brackets, screw threads for the use of flying eyes or wall mount brackets. -
Page 7: Overview
Overview Fig. 01 Installation Remove all packing materials from the Xi-28 MKII. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Set Up And Operation
Xi-28 MKII Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Bracket Assembly Instructions (D3426HB) Fig. -
Page 9: Setup Example
Xi-28 MKII Setup Example Fig. 03 Ordercode: D3452/D3453... -
Page 10: Maintenance
03) If both appear to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not open the Xi-28 MKII, as this may damage the unit and the warranty will become void. -
Page 11: Product Specifications
Xi-28 MKII Product Specifications ● Speaker system: Dual bass reflex sub ● Continuous power: 400W ● Program power: 800W ● Peak power: 1600W ● Impedance: 4 Ω ● Sensitivity W/m (half space): 100 dB ● Peak SPL @ 1 m (theoretical): 132 dB ●... - Page 12 ©2019 DAP Audio...
