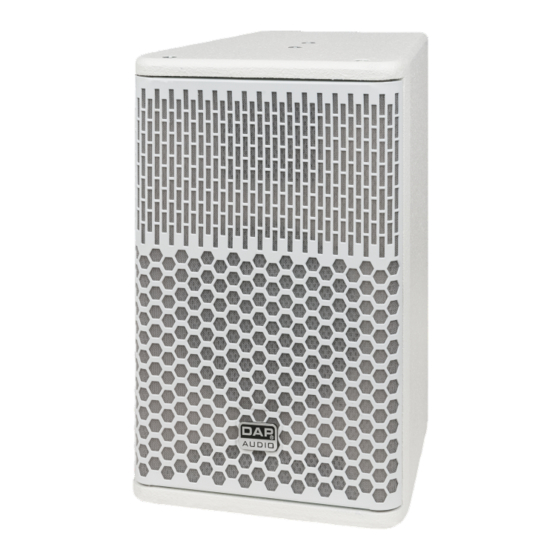

- Page 1 MANUAL ENGLISH Xi-6 Ordercode: D3423/D3423W Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Xi-6 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 5 Set Up and Operation ............................... 6 Maintenance .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio Xi-6 6,5” / 1” full range installation cabinet black • User manual •... -
Page 4: Operating Determinations
Improper installation can cause serious injuries and damage of property ! The Xi-6 can be placed on a flat stage floor or mounted to any kind of truss by means of the mounting bracket (D3423HB). It can also be mounted to a wall by means of the Compact speaker wall bracket (D8429). -
Page 5: Return Procedure
Xi-6 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
Overview Fig. 01 Installation Remove all packing materials from the Xi-6. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 7: Set Up And Operation
Xi-6 Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Fig. 02 01) Connect the speakers to each other, using Speakon cables. -
Page 8: Maintenance
03) If both appear to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not open the Xi-6, as this may damage the unit and the warranty will become void. -
Page 9: Dimensions
Xi-6 Dimensions Ordercode: D3423/D3423W... -
Page 10: Notes
Xi-6 Notes Ordercode: D3423/D3423W... - Page 11 Xi-6 Ordercode: D3423/D3423W...
- Page 12 ©2015 DAP Audio...
