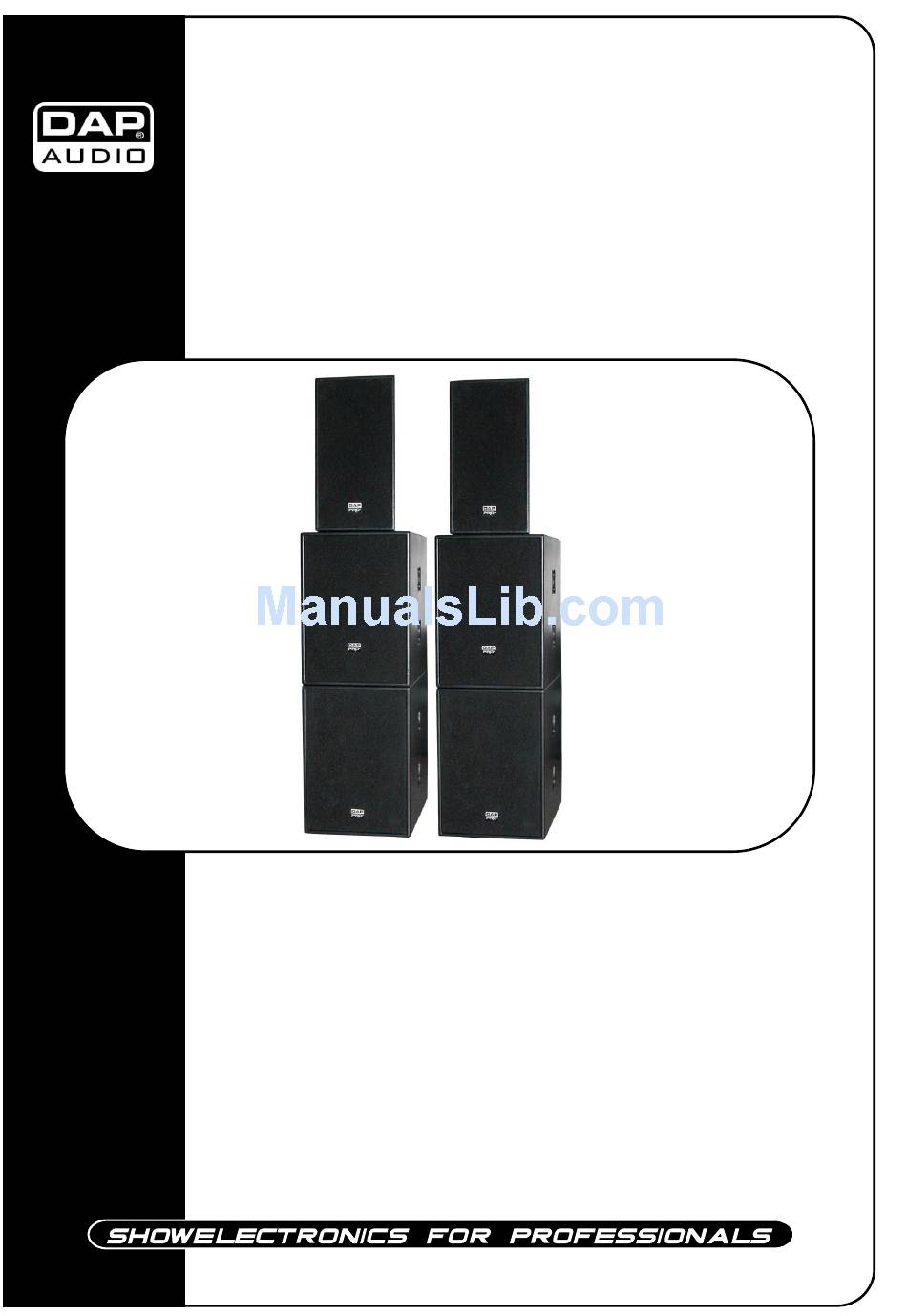

- Page 1 Soundmate Active 3 MK-II ORDERCODE D3222...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio SoundMate Active 3 MKII brings excitement to any venue. Whether you want simple plug- &-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio SoundMate Active 3 MK-II™ Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview…………………………………………………………………………………………………..…… Set Up and Operation..............……..………………………………… Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Prevent distortion! Make sure that all components connected to the SoundMate have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. Avoid ground loops! Always be sure to connect the power amps from the SoundMate cabinets and the mixing console to the same electrical circuit to ensure the same phase! If system is dropped or struck, disconnect mains power supply immediately. -
Page 6: Description Of The Device

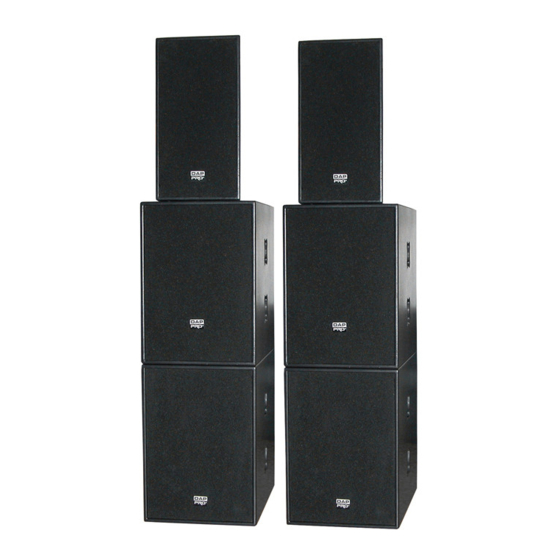

Description of the device Features SoundMate Active 3 MKII is a fullrange active system with : • 4 subwoofers 15” 600 watt • 2 mid/high (fullrange) 1” CD horn + 12” satellite speakers 600 Watt. • 4 x 1,5 m XLR - cable •... - Page 7 Overview Subwoofer Fig. 2 Ground Lift Signal Through Signal Input Volume / Gain IEC Power Connector Fuse T5A Power Switch Fuse T5A Air Cooling Window...
-
Page 8: Set Up And Operation
Set Up and Operation The DAP SoundMate Active MKII systems are expanding in a unstoppable manner. In addition to the already existing SoundMate Active 1 & 2 MKII, we present to you the SoundMate Active 3 MKII! Every day more users find their way to these amazing active soundsystems, which are powerful, versatile and last but not least affordable! This system is the biggest active set so far and is designed for live acts and bigger playback situations. - Page 9 Mains Socket (5 +13) Plug one end of the electric mains power cord into the IEC socket on the unit. Then plug the other end of the cord into a proper electric power supply socket. Make sure that the available voltage is not higher than stated on the rear panel.
-
Page 10: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are in good condition: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Troubleshooting
Compensation of interference with balanced connections Maintenance DAP Audio SoundMate Active 3 MKII requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 12: Product Specifications
Specifications Inputs Subwoofer Line IN Connector XLR / jack combo socket female Input design electronically balanced & floating Input impedance 47 kΩ Sensitivity 0 dB Satellite Line IN Connector XLR / jack combo socket female Input design electronically balanced & floating Input impedance 47 kΩ... - Page 13 Included 4x 1,5 m Speakon - cable 1 carrying bag for cables 4 rain / dustcovers Design and product specifications are subject to change without prior notice. Website: www.Highlite.nl Email: service@highlite.nl...
