- Page 1 X-12MA ORDERCODE D3258 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP X-12MA brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP X-12MA Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Claims ..................................5 Description of the device ............................. 6 Features ..................................6 Controlpanel ................................7 Backpanel .................................. -
Page 4: Dap X-12Ma
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP X-12MA • IEC cable • User manual... -
Page 5: Operating Determinations
Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains. Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

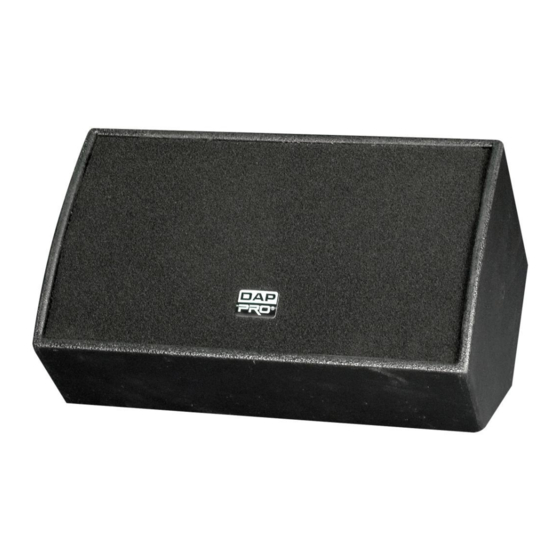

Description of the device Features The X-12MA is a 12", 1,75" active monitor speaker. • Neutrik Powercon input & link output • Engineered in the Netherlands • Built-in class-D amplifier • Link output • Lightweight amplifier and power supply • Two amplifiers for low/mid and high speaker •... -
Page 8: Controlpanel
Use to set the optimal crossover frequency for the active subwoofer connected to the low output. 5. Satellite/ fullrange button Allows you to switch the X-12MA as either a satellite speaker (in combination with an optional active subwoofer) or as a full range speaker. -
Page 9: Operation
This is the main Power switch. Press to turn the X-12MA on. Operation Installation Remove all packing materials from the X-12MA. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Maintenance
Maintenance The X-12MA requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 12: Product Specifications
Product Specifications 12/1 Active Vented PA Monitor Speaker System Loudness Switch Auxiliary XLR Low Out Built-in Subsonic Filter Multiband Limiters Amplifier Output Power Low: 200 Watt RMS Amplifier Output Power High: 100 Watt RMS Freq. Response (-3 dB): 60 – 16.000 Hz Freq.
