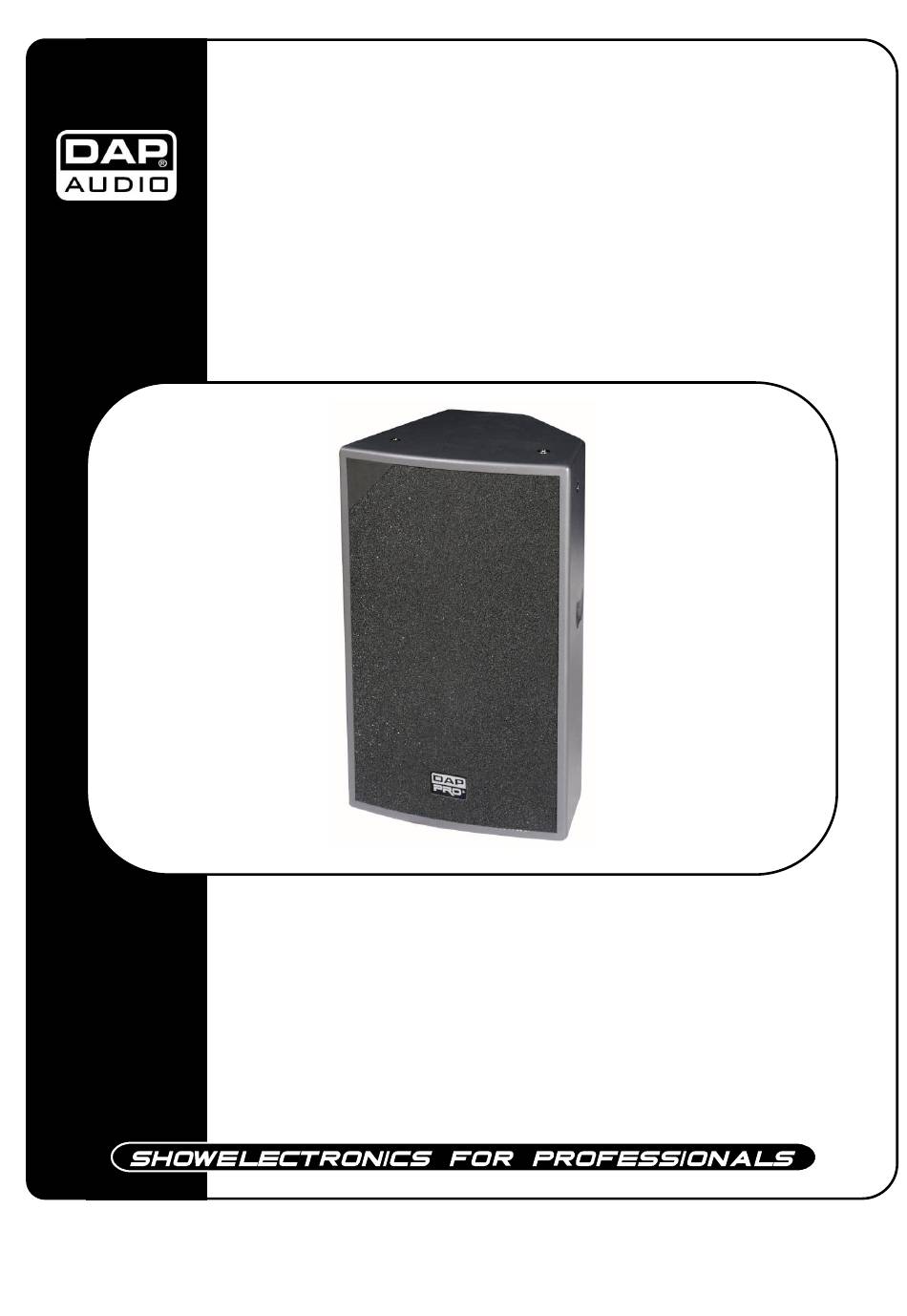

- Page 1 X-15A ORDERCODE D3253...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio X-15A brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio X-15A Product Guide Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations……………………………………………………………………………………....Description..…................……….…………………………………....Features………………………………………………………………………………….………………….…....Overview ..…………………………………………………………………………………..……......... ControlPanel..…………………………………………………………………………………….……......Operation..............……….……………………..…………………………....Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Replacing the Fuse................…………………….…………………....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP X-15A • IEC cable • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description

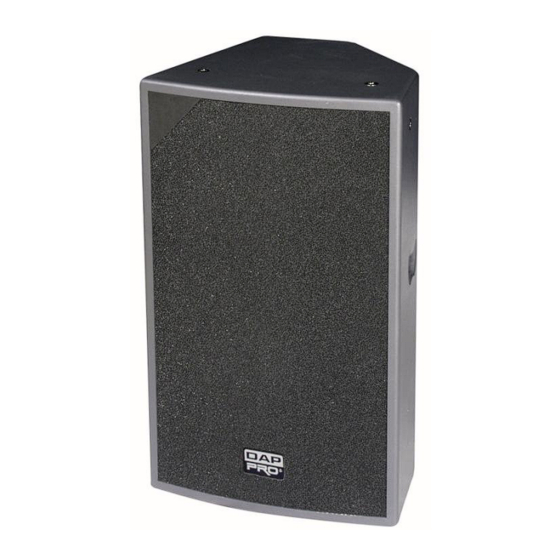

Description of the device Features The X-15A is an active 2-way Fullrange speakersystem: • Lightweight switched mode power supply • Separate amplifiers for mid and high speaker • Active 2 way crossover network • User adjustable crossover frequency 60Hz-250Hz, 24dB/oct. -
Page 8: Controlpanel
Use to set the optimal crossover frequency for the active subwoofer connected to the low output. 5) Sattelite/ Fullrange Button Allows you to switch the X-15A as either a satellite speaker (in combination with an additional Subwoofer) or as a full range speaker. -
Page 9: Operation
Operation Installation Remove all packing materials from the X-15A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Maintenance
Maintenance The X-15A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 11: Product Specifications
Product Specifications Power supply: 230V 50/60Hz Fuse: T4A Loudness Switch Ground Lift Switch Auxiliary XLR Low Out Build In Subsonic Filter Multiband Limiters Woofer: ER-1576F-4, 8 Ohm, 76 mm Voice Coil High Driver: CT-518CS, 8 Ohm, 2" Titanium Dome 51 mm Voice Coil Amplifier Output Power Low: 400 Watt RMS Amplifier Output Power High: 100 Watt RMS Freq. - Page 12 2009 Dap Audio.
