Summary of Contents for DAPAudio LT-215A

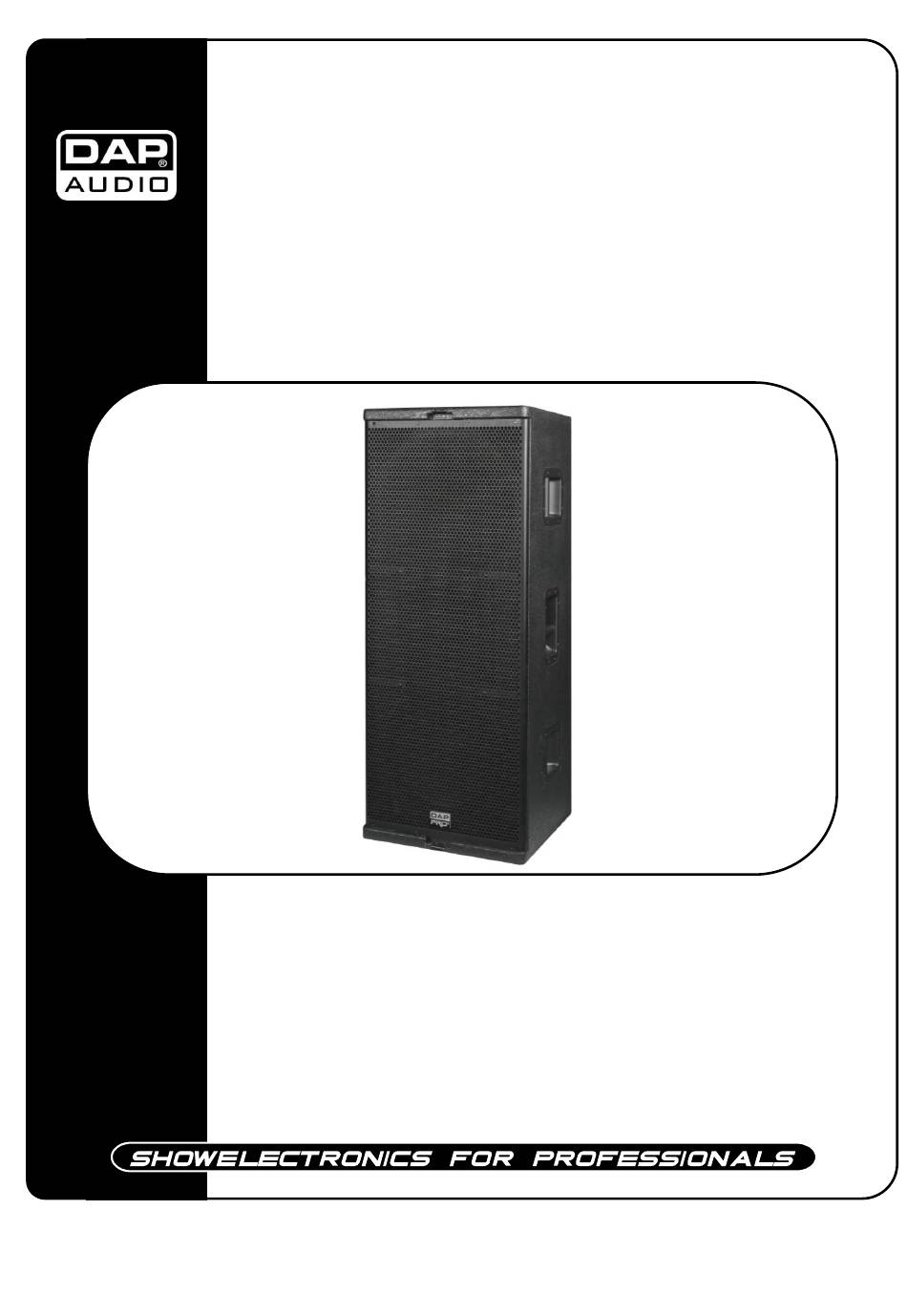

- Page 1 LT-215A ORDERCODE D3474...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio LT-215A brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio LT-215A™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..…................……….…………………………………...... Features………………………………………………………………………………….………………….…..... Overview ..…………………………………………………………………………………..……........Control Panel.…………………………………………………………………………………….……......Marani Dig Amp Software........……….……………………..…………………………...... Operation..............……….……………………..…………………………..... Connection Cables......…........………..………….…….………….…..... Maintenance………......…........………..………….…….………….…....Replacing the Fuse................…………………….…………………....Troubleshooting………......…........………..………….…….………….…....... Product Specifications..............……………….…….…………………....... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP LT-215A • IEC cable • User manual... -
Page 5: Operating Determinations
Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description

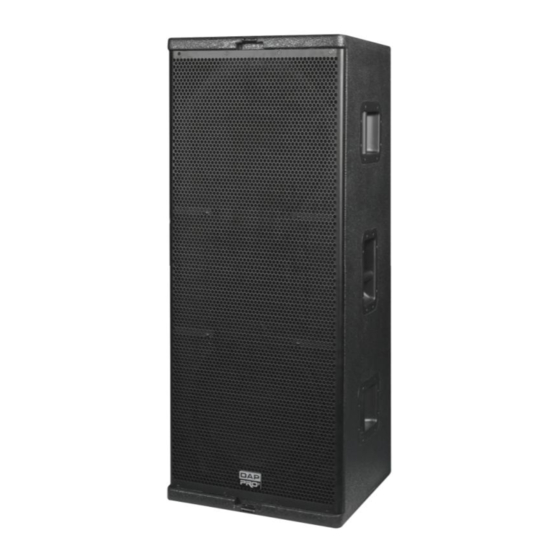

Description of the device • High performance fullrange enclosure • 2 high power 15 inch drivers • 3 inch compression driver • Built in DSP • Bang & Olufsen ICE- power amplifiers • Strong metal handles • Multiple flying system •... -
Page 8: Controlpanel
LT218BA bass cabinet. Each group has 8 presets: Flat, indoor, outdoor, square, grass, theatre, hall and user. If you own the optional interface and software, the LT-215A offers you the ability to program/ edit your presets to your own specific requirements. - Page 9 This connector is meant for the connection of the supplied main cord. Connect one end of the power cord to the connector, the other end to the mains, then turn on the power switch (14) to operate the unit. 13) AC Power Switch This is the main Power switch. Press to turn the LT-215A on.
-
Page 10: Marani Dig Amp Software
Marani Dig Amp software The LT-series gives you the opportunity to edit the Factory preset programs to your own preferences or back them up. Note: You’ll have to buy the optional USB to RS485 interface first. You can download the software from our website. - Page 11 High Pass Filter The High Pass field allows the user to adjust the parameters of a High Pass filter. 1. Low Cut Frequency, click the entry field below the slider and use your computers keyboard to enter the desired frequency. 2.
- Page 12 The “Save Preset to Device” on the top of the screen, allows the user to SAVE an edited setting as preset into the LT-215A. It is enough to click on the Icon, to chose the location (from 01 to 16) and to enter a name for the preset you wish to save, then click the “store”...
-
Page 13: Operation
Operation Installation Remove all packing materials from the LT-215A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 14: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Maintenance
Maintenance The LT-215A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 16: Product Specifications
Product Specifications Power supply: 230V 50/60Hz Fuse: Woofers: 2x ER-A1576F-B, Alu Basket 8 Ohm, 76 mm Voice Coil. High Driver: JC-7238, 8 Ohm, 3" Poly Carbonate Dome, 76 mm Voice Coil Amplifier Module Low: B&O ICEpower1000ASP Amplifier Module High: B&O ICEpower500A Amplifier Output Low: 1000 Watt RMS in 4 Ohm Amplifier Output High:... - Page 17 2011 Dap Audio.
