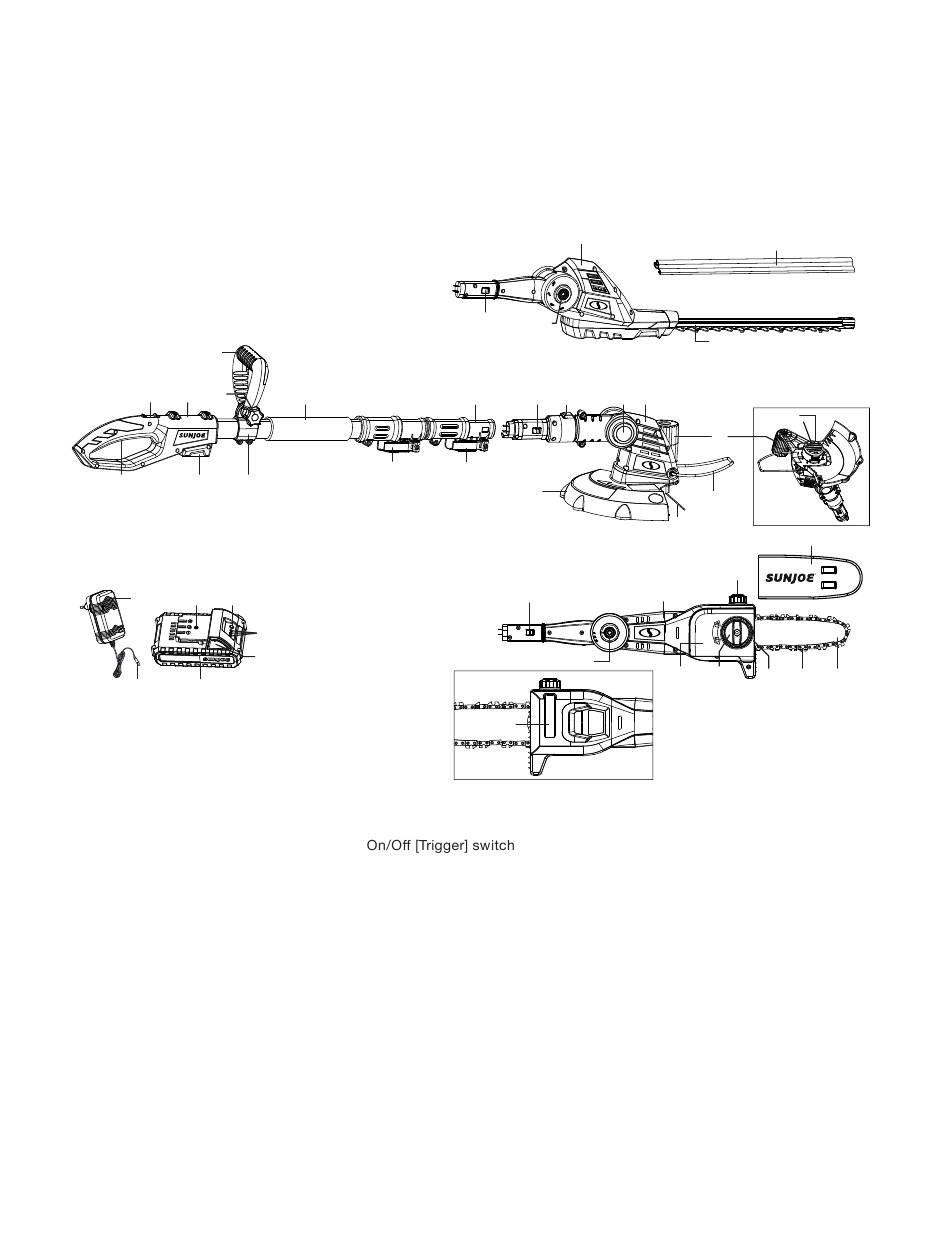

Know Your Cordless Lawn + Garden Multi-tool System
Read the owner's manual and safety instructions carefully before operating the cordless multi-tool system. Compare the
illustration below to the cordless multi-tool system in order to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
11
12
14 13
R
15 16
38 37 36
39 33
1. Hedge trimmer blade cover
2. Hedge trimmer head
3. Lock tab
4. Rotating button
5. Hedge trimmer blade
6. Edging wheel
7. Grass trimmer + edger head
8. Converting switch
9. Telescoping pole
10. Soft grip
11. Auxiliary handle
12. Auxiliary Handle lock knob
13. Handle
14. Safety lock switch
10
18
17
35
34
15.
16. Battery compartment
17. Auxiliary handle loop
18. Telescoping lock
19. Assembly lock
20. Safety guard
21. Trimmer line
22. Flower guard
23. Spool
24. Chain bar cover
25. Oil tank cap
26. Chain saw head
27. Chain/sprocket end cover
28. Chain/sprocket end cover knob
2
3
4
9 3 8 4
19
20
3
4
24
32
VOLT
Back of the chain saw head
29. Chain tensioner ring
30. 8-inch cutting chain
31. 8-inch guide bar
32. Oil level window
33. 24V iON+ lithium-ion battery
34. Push lock button
35. Battery indicators
36. Push button for battery indicator
37. Charge socket
38. 24V iON+ lithium-ion charger
39. Charger plug
8
1
5
Bottom of the grass
trimmer head
7
23
6
22
21
24
25
R
26
27 28 29 30
(24VBAT-LTE) featuring exclusive
EcoSharp technology
®
(24VCHRG-AC)
31
