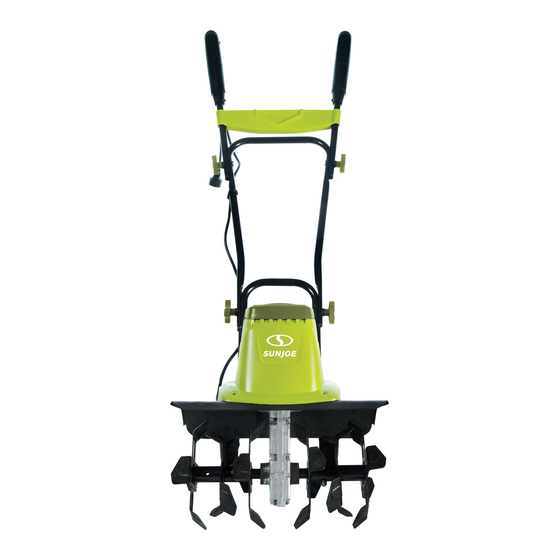

Sun Joe TJ604E 16-Inch 13.5-Amp Electric Garden
Tiller/Cultivator, 3-Position Wheel Adjustment, 6-Steel Angled
Tines, Maintenance-Free
User Manual of Product 2:
Sun Joe SWJ806E 8-Inch 7.5 Amp Electric Pole Chain Saw,
2-in-1 Convertible to Handheld Chainsaw, Automatic
Lubrication, Extends to 8.6-Feet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun Joe TJ604E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOWJOE Sun Joe TJ604E

Summary of Contents for SNOWJOE Sun Joe TJ604E

  • Page 1 User Manual of Product 1: Sun Joe TJ604E 16-Inch 13.5-Amp Electric Garden Tiller/Cultivator, 3-Position Wheel Adjustment, 6-Steel Angled Tines, Maintenance-Free User Manual of Product 2: Sun Joe SWJ806E 8-Inch 7.5 Amp Electric Pole Chain Saw, 2-in-1 Convertible to Handheld Chainsaw, Automatic...

  • Page 2: General Safety Warnings

    ELECTRIC TILLER + CULTIVATOR 16-INCH | 13.5-AMP OPERATOR’S MANUAL Model TJ604E A Division of Snow Joe , LLC ® Form No. SJ-TJ604E-880E-MR2 IMPORTANT! 9. Do not abuse the cord – Never carry the garden tiller + cultivator by the cord or yank the cord to disconnect it Safety Instructions from the receptacle.
  • Page 3 + Sun Joe customer service ® ® cultivating. center at 1-866-SNOWJOE (1-866-766-9563) for • Hold onto the tiller + cultivator with both hands during assistance. operation. Ensure the grips are dry. Training • Contact with rotating parts can amputate hands and feet.

  • Page 4: Maintenance & Storage

    SJTW-A 14-gauge 50-foot extension cord ® (OEM) parts only. Replacement parts that do not meet with lighted end (Model PJEXT50-B). Visit snowjoe. the original equipment specifications may lead to com to purchase this extension cord online or, to improper performance and compromise safety.
  • Page 5 4. To prevent the appliance cord from disconnecting from the extension cord during operation, use the onboard extension cord restraint hook and/or make a knot with the two cords as shown in Table 1. Table 1. Method of Securing Extension Cord Cord set Appliance cord (A) Tie cord as shown...
  • Page 6 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S Wear eye protection, breathing MANUAL(S) –...
  • Page 7 Know Your Electric Tiller + Cultivator Read the owner’s manual and safety instructions carefully before operating the electric tiller + cultivator. Compare the illustration below to the electric tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 8 + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). Middle handle NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric tiller + cultivator. The packaging is made of recyclable materials.

  • Page 9: Intended Use

    SJTW-A 14-gauge 50- ® ® foot extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to order online or call 1-866-SNOWJOE (1-866-766-9563) to order by phone. 2. Make a loop in the extension cord and push it up through Cable clip the hole in the handle and around the cord restraint hook (Fig.

  • Page 10: Wheel Adjustment

    Operating Tips WARNING! Check the voltage to ensure it complies with the information on the rating label. • Before each use, check the product, its power cord and Wheel Adjustment plug, and any other accessories for damage. Do not use the product if it is damaged or shows wear.

  • Page 11: General Cleaning

    + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for repair before using the product again. • Pay special attention when changing direction. Apply light Cleaning the Underbody + Working Tool pressure to the handle in order to lift the tines and facilitate the turn.

  • Page 12: Changing The Tines

    ® ® ® each use. Check that safety features (i.e. labels, guards, etc.) service center at 1-866- SNOWJOE (1-866-766-9563). are in place. Check that nuts, bolts, and screws are tight. Repair Changing the Tines This product does not contain any parts that can be repaired NOTE: The machine is fitted with six tilling blades that can by the consumer.

  • Page 13: Recycling + Disposal

    NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Wearing parts like belts, augers, chains and tines are not covered This Warranty is extended by Snow Joe + Sun Joe to the owner under this warranty, and can be purchased at snowjoe.com or ® ® by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are of this Machine (a “Machine”...
  • Page 17 WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.

  • Page 18: General Power Tool Safety Warnings

    ELECTRIC POLE + CHAIN SAW 8-INCH | 8-AMP OPERATOR’S MANUAL Model SWJ806E A Division of Snow Joe , LLC ® Form No. SJ-SWJ806E-880E-MR7 IMPORTANT! 3. Do not expose power tools to rain or wet conditions – Water entering a power tool will increase the risk of Safety Instructions electric shock.

  • Page 19: Chain Saw Safety Warnings

    Power Tool Use and Care • Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is 1. Do not force the power tool. Use the correct power recommended. Adequate protective clothing will reduce tool for your application – The correct power tool will personal injury by flying debris or accidental contact with do the job better and safer at the rate for which it was the saw chain.

  • Page 20: Electrical Safety

    • Maintain a firm grip (right hand on the rear handle and • Do not cut small brush and saplings with the pole chain left hand on the front handle with thumbs and fingers saw. Small branches may catch in the chain and be encircling the respective handles) and position your whipped towards the operator, which could pull the body and arms to allow you to resist kickback forces.
  • Page 21 4. To prevent the appliance cord from disconnecting from the respective handles) and position your body and arms to allow you to resist kickback forces. Kickback forces can extension cord during operation, make a knot with the two cords as shown in Table 1. be controlled by the operator if proper precautions are taken.

  • Page 22: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, Keep bystanders and children and follow all instructions in the a safe distance away.

  • Page 23: Technical Data

    Know Your Electric Pole + Chain Saw Read the owner’s manual and safety instructions carefully before operating the electric pole + chain saw. Compare the illustration below to the electric pole + chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

  • Page 24: Carton Contents

    Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563). Chain/sprocket end WARNING! Unpacking and assembly should be cover completed on a flat and stable surface, with adequate space for moving the machine and its packaging.
  • Page 25 Fig. 3 Fig. 6 Cutting bar Chain Loop 6. Hold the chain in position on the bar and place the loop 3. Remove the old chain from the bar. around the sprocket. Fit the bar flush against the mounting surface so that the bar studs are in the long slot of the bar 4.
  • Page 26 9. Remove all slack from the chain by turning the chain 2. While pulling the handle lock, use the other hand to grasp tensioner screw clockwise until the chain seats snugly the front hand grip and slide the removable cutting head against the bar with the drive links in the bar groove up to remove it (Fig.

  • Page 27: Chain Saw Assembly

    Operation Chain Saw Assembly 1. To remove the cutting head from the telescoping pole, Starting and Stopping PULL the cutting head lock back to release, and grasping the front hand grip, SLIDE UP to remove the cutting head CAUTION! (Fig. 14). •...
  • Page 28 WARNING! Do not operate the electric pole + chain Extension cord Fig. 18 saw in a tree, on a ladder, or on a scaffold. Using the tool restraint hook under such circumstances is extremely dangerous. CAUTION! The chain will continue to run for several seconds after turning off the tool.
  • Page 29 3. Extend the pole to the desired length (Fig. 21). Fig. 23 NOTE: Push poles toward each other to shorten the pole or pull them away from each other to lengthen the pole. Only extend the pole to the minimum length required to reach the limb to be cut.
  • Page 30 Basic Cutting Procedure • Release the trigger ON/OFF switch as soon as the cut is completed. Failure to follow proper cutting procedures will This unit is designed for trimming small branches and limbs up result in the bar and chain binding and becoming pinched to recommended 6.5 in.

  • Page 31: Bucking A Log

    Basic Cutting Procedures Bucking a Log WARNING! WARNING! Do not cut limbs or trees that are larger Do not buck logs that are larger than the than the maximum cutting thickness. maximum cutting thickness. • Practice cutting a few small logs using the following Bucking is the process in which a log is cut into lengths.

  • Page 32: Maintenance

    + Sun Joe customer service center ® ® at 1-866-SNOWJOE (1-866-766-9563) for all maintenance operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualified Chain Needs Tensioning personnel will completely invalidate the warranty.

  • Page 33: Chain Sharpening

    Snow Joe + Sun Joe dealer or call the Snow Joe ® ® ® Sun Joe customer service center at 1-866-SNOWJOE ® Inspection tool Depth (1-866-766-9563). limiter Sharpening is necessary when: tooth •...

  • Page 34: Troubleshooting Tips

    OFF immediately. Remove the to experience problems or need repairs beyond these minor power cord and check the saw for any damage. adjustments, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. If you cannot find the cause of the problem or are uncertain...

  • Page 35: Model And Serial Numbers

    Support If your Sun Joe SWJ806E electric pole + chain saw requires ® service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit.
  • Page 36 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 37 This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com.
