Fig. 19
Front Side
Rotating button
2. Release the buttons when the chain saw head is set to the
desired angle.
NOTE: Failure to properly secure the chain saw head may
result in personal injury and/or property damage.
m
WARNING!
Always ensure the chain saw head is
securely locked! Do not attempt to use the pole chain saw with
the head in any other position or unlocked!

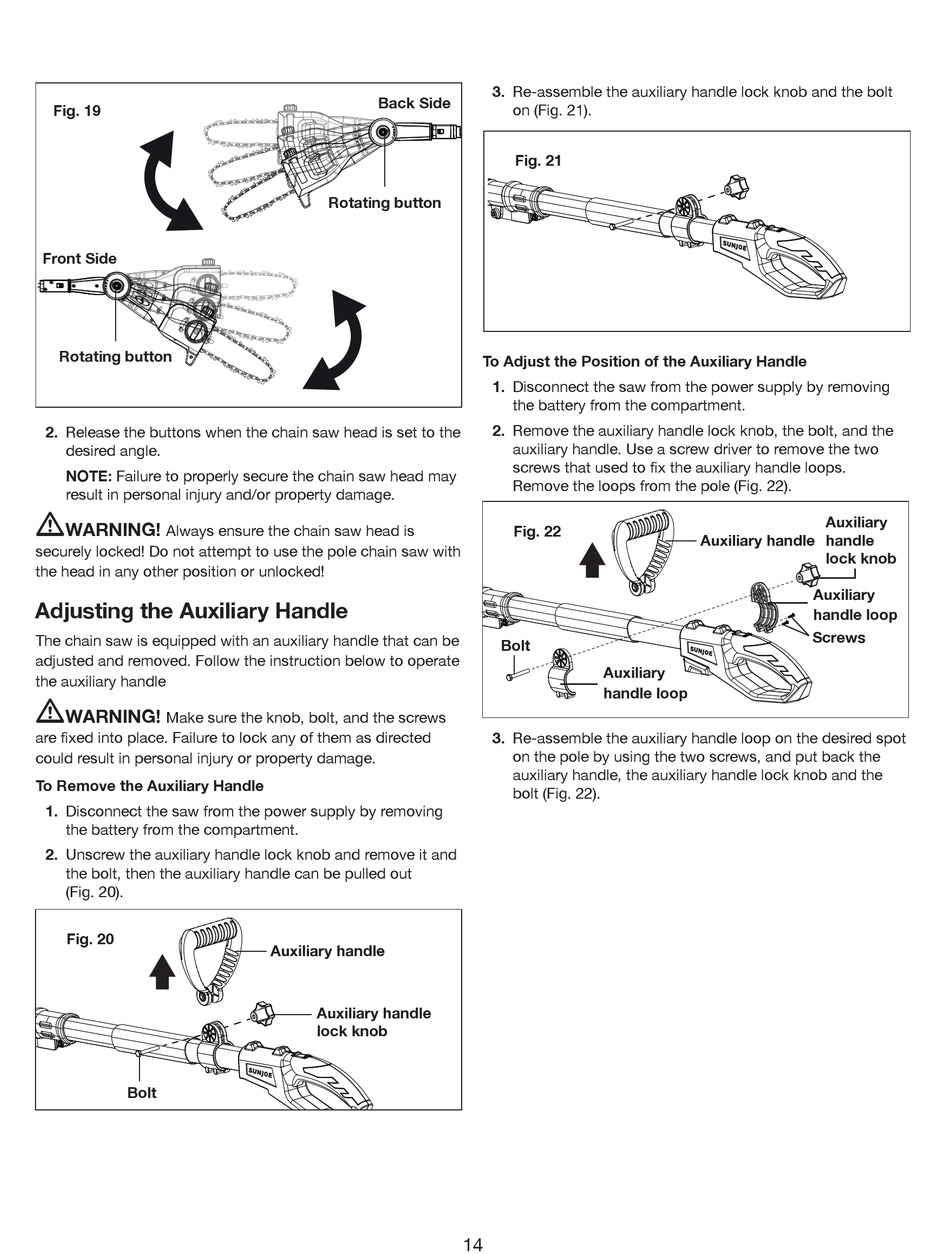

Adjusting the Auxiliary Handle

adjusted and removed. Follow the instruction below to operate
the auxiliary handle
m
WARNING!
Make sure the knob, bolt, and the screws
could result in personal injury or property damage.
To Remove the Auxiliary Handle
1. Disconnect the saw from the power supply by removing
the battery from the compartment.
2. Unscrew the auxiliary handle lock knob and remove it and
the bolt, then the auxiliary handle can be pulled out
(Fig. 20).
Fig. 20
Bolt
Back Side
Rotating button
Auxiliary handle
Auxiliary handle
lock knob
3. Re-assemble the auxiliary handle lock knob and the bolt
on (Fig. 21).
Fig. 21
To Adjust the Position of the Auxiliary Handle
1. Disconnect the saw from the power supply by removing
the battery from the compartment.
2. Remove the auxiliary handle lock knob, the bolt, and the
auxiliary handle. Use a screw driver to remove the two
Remove the loops from the pole (Fig. 22).
Fig. 22
Bolt
Auxiliary
handle loop
3. Re-assemble the auxiliary handle loop on the desired spot
on the pole by using the two screws, and put back the
auxiliary handle, the auxiliary handle lock knob and the
bolt (Fig. 22).
14
Auxiliary
Auxiliary handle handle
lock knob
Auxiliary
handle loop
Screws
