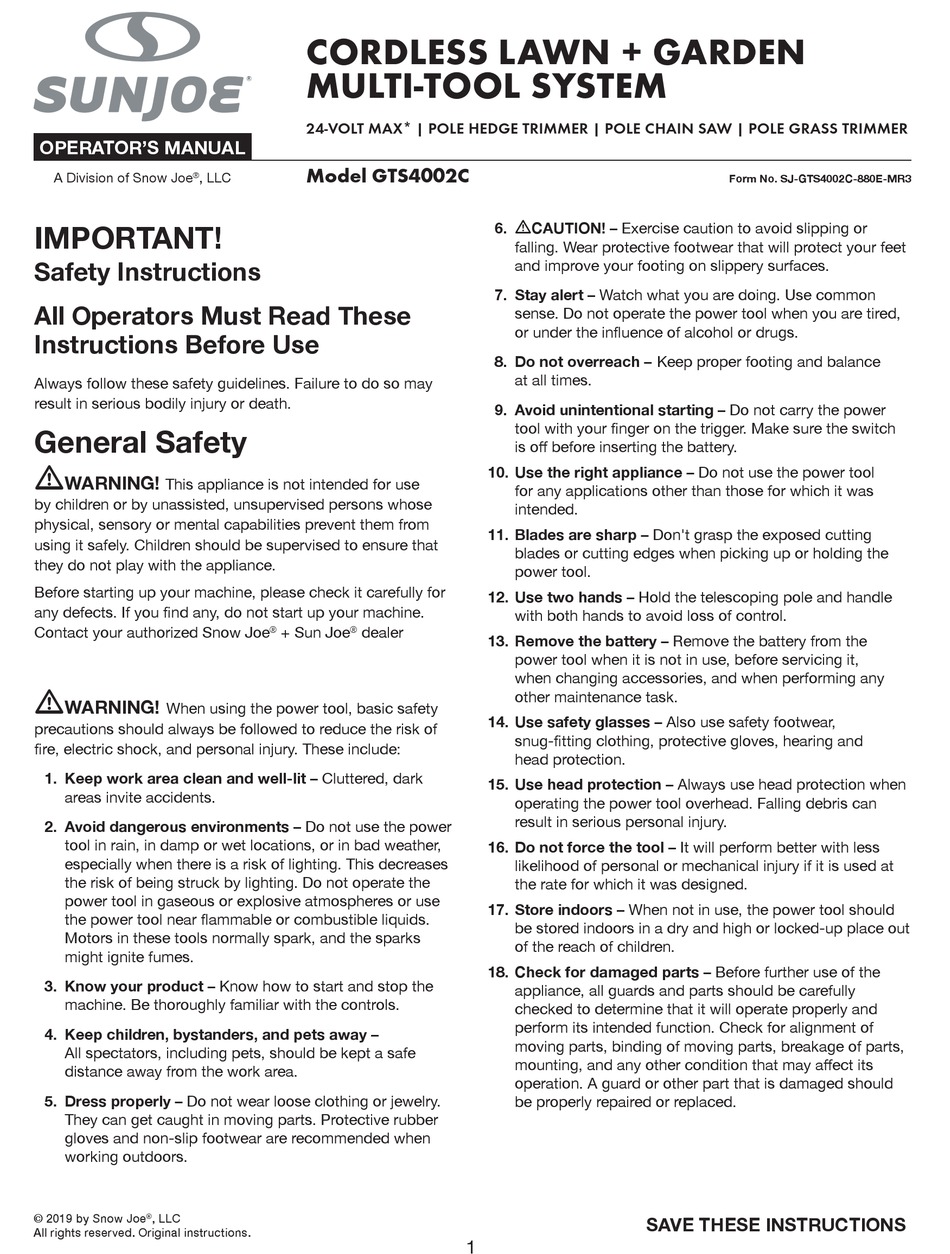

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
Contact your authorized Snow Joe
m
WARNING!
When using the power tool, basic safety
precautions should always be followed to reduce the risk of
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Avoid dangerous environments – Do not use the power
tool in rain, in damp or wet locations, or in bad weather,
especially when there is a risk of lighting. This decreases
the risk of being struck by lighting. Do not operate the
power tool in gaseous or explosive atmospheres or use
Motors in these tools normally spark, and the sparks
might ignite fumes.
3. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
4. Keep children, bystanders, and pets away –
All spectators, including pets, should be kept a safe
distance away from the work area.
5. Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS LAWN + GARDEN
MULTI-TOOL SYSTEM
R
24-VOLT MAX* | POLE HEDGE TRIMMER | POLE CHAIN SAW | POLE GRASS TRIMMER
Model GTS4002C
+ Sun Joe
dealer
®
®
m
6.
CAUTION! – Exercise caution to avoid slipping or
falling. Wear protective footwear that will protect your feet
and improve your footing on slippery surfaces.
7. Stay alert – Watch what you are doing. Use common
sense. Do not operate the power tool when you are tired,
8. Do not overreach – Keep proper footing and balance
at all times.
9. Avoid unintentional starting – Do not carry the power
10. Use the right appliance – Do not use the power tool
for any applications other than those for which it was
intended.
11. Blades are sharp – Don't grasp the exposed cutting
blades or cutting edges when picking up or holding the
power tool.
12. Use two hands – Hold the telescoping pole and handle
with both hands to avoid loss of control.
13. Remove the battery – Remove the battery from the
power tool when it is not in use, before servicing it,
when changing accessories, and when performing any
other maintenance task.
14. Use safety glasses – Also use safety footwear,
head protection.
15. Use head protection – Always use head protection when
operating the power tool overhead. Falling debris can
result in serious personal injury.
16. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
17. Store indoors – When not in use, the power tool should
be stored indoors in a dry and high or locked-up place out
of the reach of children.
18. Check for damaged parts – Before further use of the
appliance, all guards and parts should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
operation. A guard or other part that is damaged should
be properly repaired or replaced.
1
Form No. SJ-GTS4002C-880E-MR3
SAVE THESE INSTRUCTIONS
