3. Lock the pole in position by closing the telescoping lock
(Fig. 64), and ensure that the pole is secured.

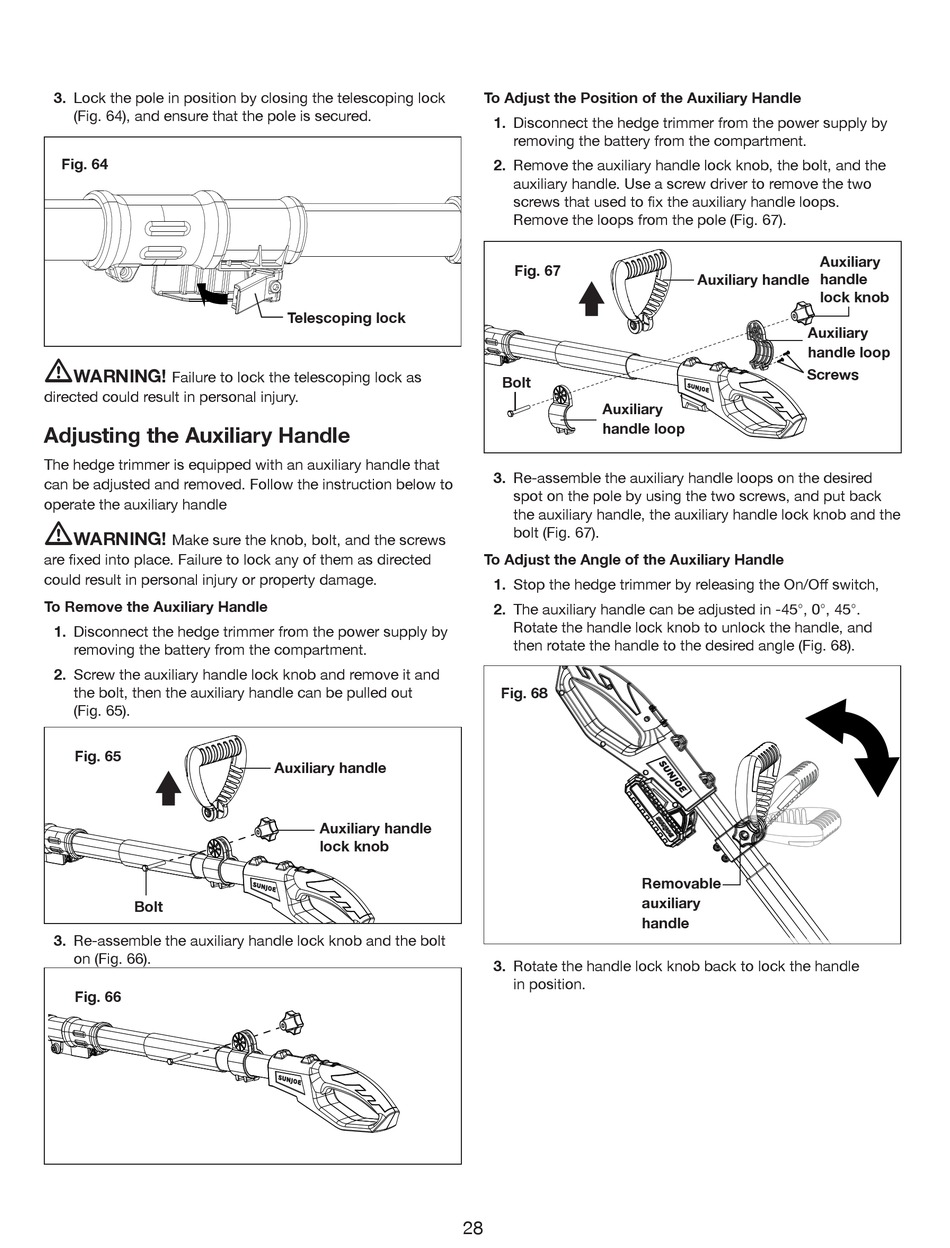

Fig. 64
m
WARNING!
Failure to lock the telescoping lock as
directed could result in personal injury.
Adjusting the Auxiliary Handle
can be adjusted and removed. Follow the instruction below to
operate the auxiliary handle
m
WARNING!
Make sure the knob, bolt, and the screws
could result in personal injury or property damage.
To Remove the Auxiliary Handle
1. Disconnect the hedge trimmer from the power supply by
removing the battery from the compartment.
2. Screw the auxiliary handle lock knob and remove it and
the bolt, then the auxiliary handle can be pulled out
(Fig. 65).
Fig. 65
Bolt
3. Re-assemble the auxiliary handle lock knob and the bolt
on (Fig. 66).
Fig. 66
Telescoping lock
Auxiliary handle
Auxiliary handle
lock knob
To Adjust the Position of the Auxiliary Handle
1. Disconnect the hedge trimmer from the power supply by
removing the battery from the compartment.
2. Remove the auxiliary handle lock knob, the bolt, and the
auxiliary handle. Use a screw driver to remove the two
Remove the loops from the pole (Fig. 67).
Fig. 67
Bolt
Auxiliary
handle loop
3. Re-assemble the auxiliary handle loops on the desired
spot on the pole by using the two screws, and put back
the auxiliary handle, the auxiliary handle lock knob and the
bolt (Fig. 67).
To Adjust the Angle of the Auxiliary Handle
1.
2. The auxiliary handle can be adjusted in -45°, 0°, 45°.
Rotate the handle lock knob to unlock the handle, and
then rotate the handle to the desired angle (Fig. 68).
Fig. 68
Removable
auxiliary
handle
3. Rotate the handle lock knob back to lock the handle
in position.
