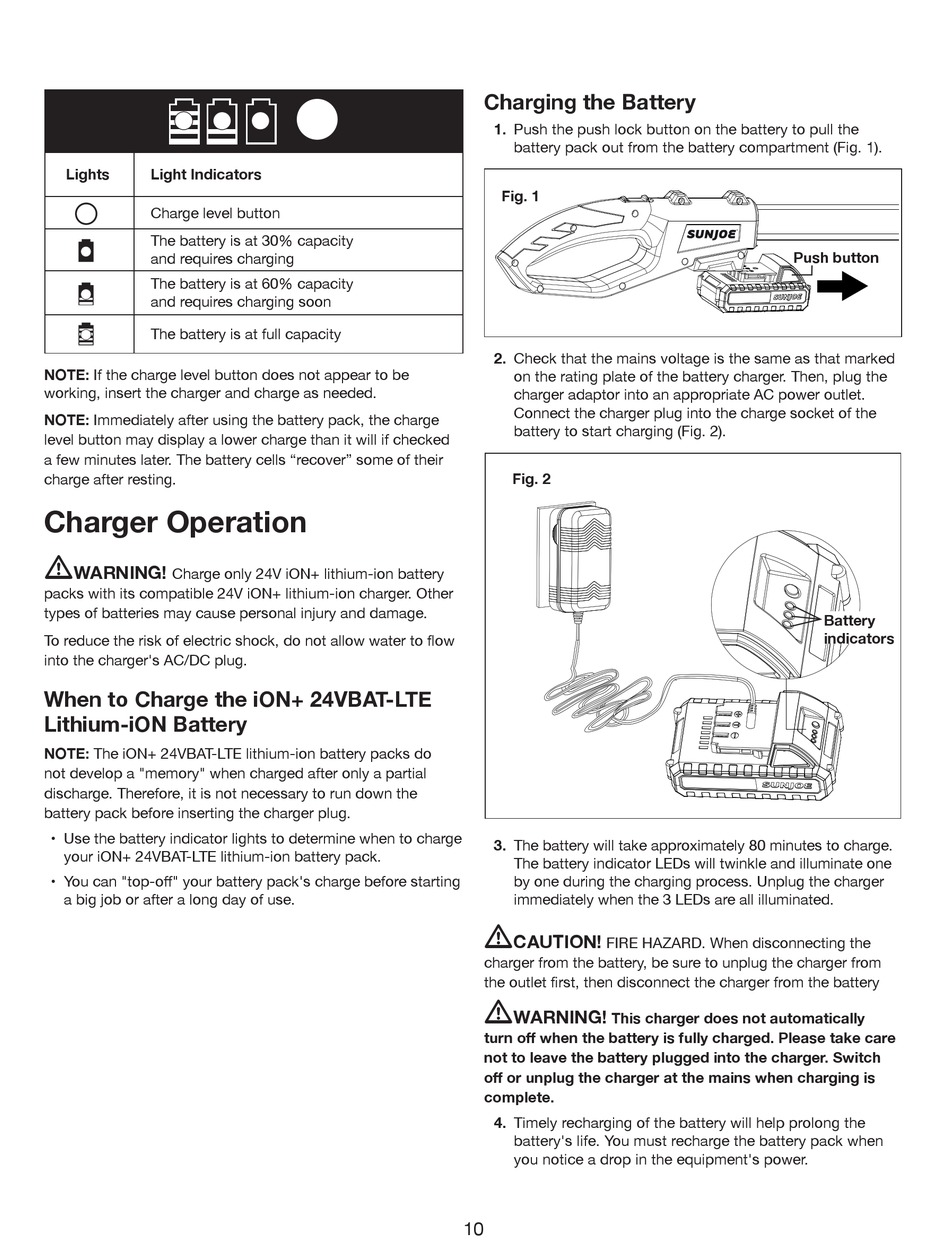

Charging The Battery; Charger Operation - SNOWJOE Sunjoe GTS4002C Operator's Manual

Lights Light Indicators
Charge level button
The battery is at 30% capacity
The battery is at 60% capacity
The battery is at full capacity
NOTE: If the charge level button does not appear to be
working, insert the charger and charge as needed.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells "recover" some of their
charge after resting.

Charger Operation

m
WARNING!
Charge only 24V iON+ lithium-ion battery
packs with its compatible 24V iON+ lithium-ion charger. Other
types of batteries may cause personal injury and damage.
into the charger's AC/DC plug.
When to Charge the iON+ 24VBAT-LTE
Lithium-iON Battery
NOTE: The iON+ 24VBAT-LTE lithium-ion battery packs do
not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before inserting the charger plug.
your iON+ 24VBAT-LTE lithium-ion battery pack.
a big job or after a long day of use.

Charging the Battery

1. Push the push lock button on the battery to pull the
battery pack out from the battery compartment (Fig. 1).
Fig. 1
2. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, plug the
charger adaptor into an appropriate AC power outlet.
Connect the charger plug into the charge socket of the
battery to start charging (Fig. 2).
Fig. 2
3. The battery will take approximately 80 minutes to charge.
The battery indicator LEDs will twinkle and illuminate one
by one during the charging process. Unplug the charger
immediately when the 3 LEDs are all illuminated.
m
CAUTION!
FIRE HAZARD. When disconnecting the
charger from the battery, be sure to unplug the charger from
m
WARNING!
This charger does not automatically
not to leave the battery plugged into the charger. Switch
complete.
4. Timely recharging of the battery will help prolong the
battery's life. You must recharge the battery pack when
10
R
Push button
Battery
indicators
Please take care
