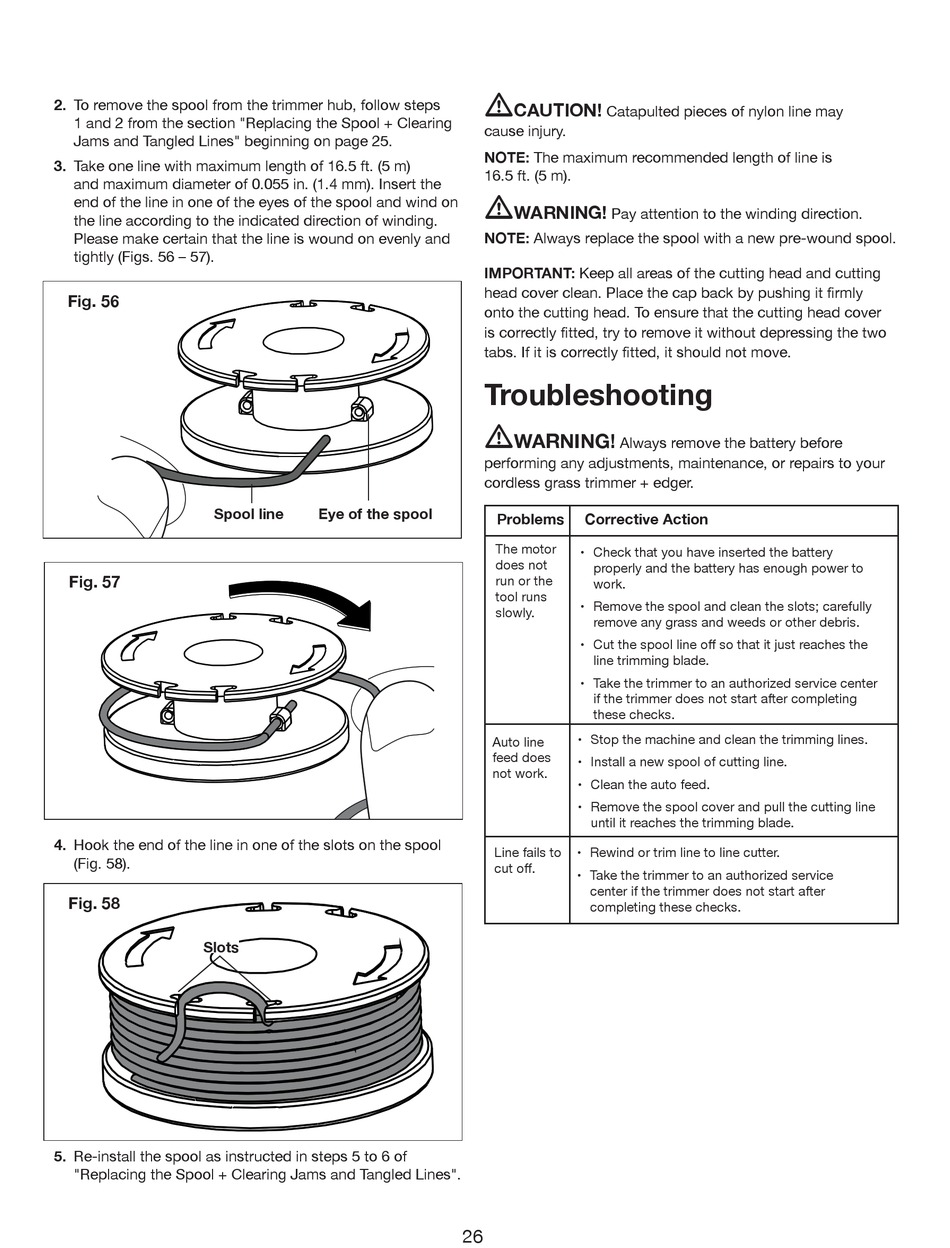

SNOWJOE Sunjoe GTS4002C Operator's Manual page 26

2. To remove the spool from the trimmer hub, follow steps
1 and 2 from the section "Replacing the Spool + Clearing
Jams and Tangled Lines" beginning on page 25.
3. Take one line with maximum length of 16.5 ft. (5 m)
and maximum diameter of 0.055 in. (1.4 mm). Insert the
end of the line in one of the eyes of the spool and wind on
the line according to the indicated direction of winding.
Please make certain that the line is wound on evenly and
tightly (Figs. 56 – 57).
Fig. 56
Spool line
Fig. 57
4. Hook the end of the line in one of the slots on the spool
(Fig. 58).
Fig. 58
Slots
5. Re-install the spool as instructed in steps 5 to 6 of
"Replacing the Spool + Clearing Jams and Tangled Lines".
m
cause injury.
NOTE: The maximum recommended length of line is
16.5 ft. (5 m).
m
NOTE: Always replace the spool with a new pre-wound spool.
IMPORTANT: Keep all areas of the cutting head and cutting
onto the cutting head. To ensure that the cutting head cover
Troubleshooting
m
performing any adjustments, maintenance, or repairs to your
cordless grass trimmer + edger.
Eye of the spool
Problems
The motor
does not
run or the
tool runs
slowly.
Auto line
feed does
not work.
Line fails to
26
CAUTION!
Catapulted pieces of nylon line may
WARNING!
Pay attention to the winding direction.
WARNING!
Always remove the battery before
Corrective Action
properly and the battery has enough power to
work.
Remove the spool and clean the slots; carefully
remove any grass and weeds or other debris.
line trimming blade.
Take the trimmer to an authorized service center
if the trimmer does not start after completing
these checks.
Stop the machine and clean the trimming lines.
Install a new spool of cutting line.
Clean the auto feed.
Remove the spool cover and pull the cutting line
until it reaches the trimming blade.
Take the trimmer to an authorized service
center if the trimmer does not start after
completing these checks.
