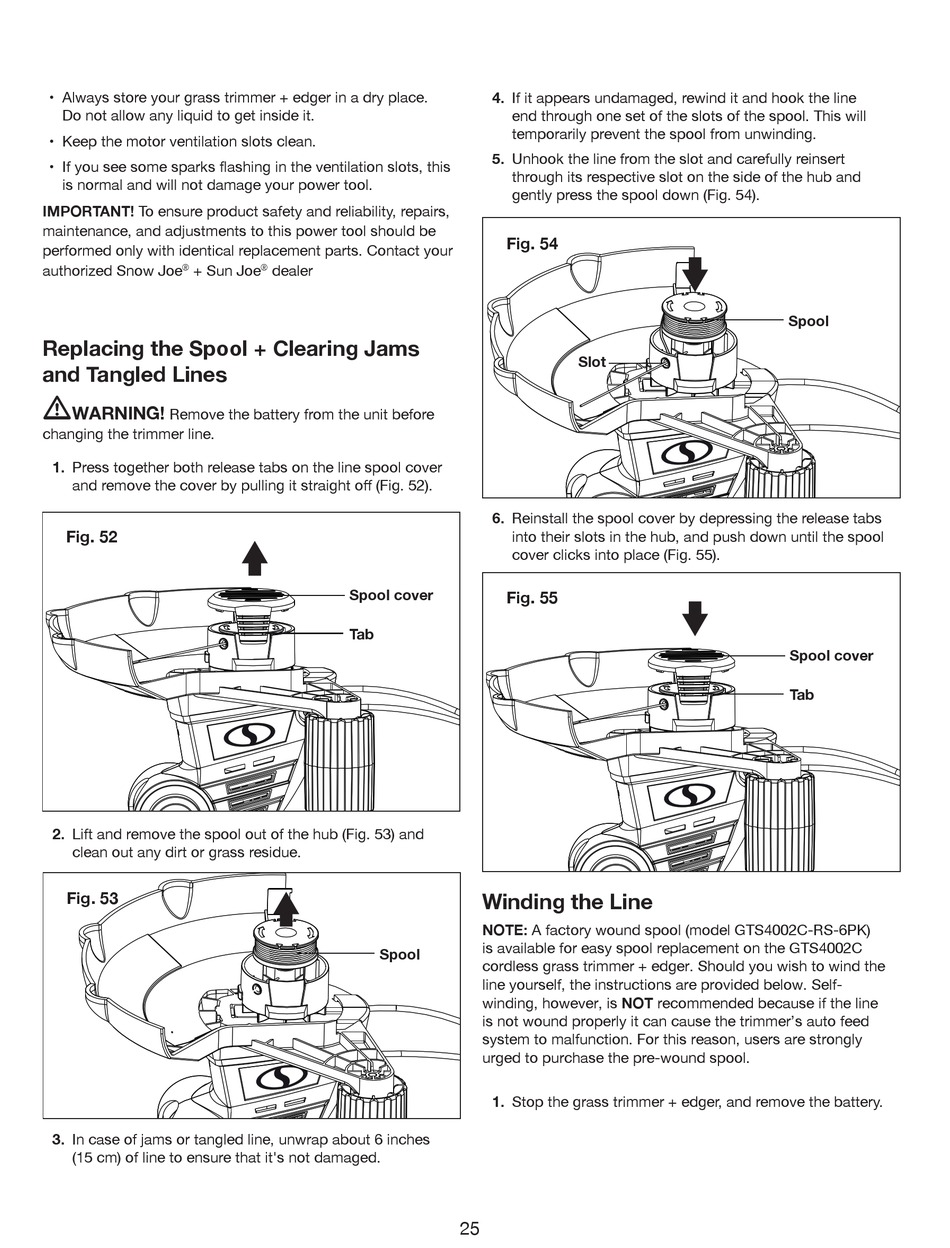

SNOWJOE Sunjoe GTS4002C Operator's Manual page 25

Always store your grass trimmer + edger in a dry place.
Keep the motor ventilation slots clean.
is normal and will not damage your power tool.
IMPORTANT! To ensure product safety and reliability, repairs,
maintenance, and adjustments to this power tool should be
performed only with identical replacement parts. Contact your
authorized Snow Joe + Sun Joe
®
Replacing the Spool + Clearing Jams
and Tangled Lines
m
WARNING!
Remove the battery from the unit before
changing the trimmer line.
1. Press together both release tabs on the line spool cover
Fig. 52
2. Lift and remove the spool out of the hub (Fig. 53) and
clean out any dirt or grass residue.
Fig. 53
3. In case of jams or tangled line, unwrap about 6 inches
(15 cm) of line to ensure that it's not damaged.
dealer
®
Spool cover
Tab
Spool
4. If it appears undamaged, rewind it and hook the line
end through one set of the slots of the spool. This will
temporarily prevent the spool from unwinding.
5. Unhook the line from the slot and carefully reinsert
through its respective slot on the side of the hub and
gently press the spool down (Fig. 54).
Fig. 54
Slot
6. Reinstall the spool cover by depressing the release tabs
into their slots in the hub, and push down until the spool
cover clicks into place (Fig. 55).
Fig. 55
Winding the Line
NOTE: A factory wound spool (model GTS4002C-RS-6PK)
is available for easy spool replacement on the GTS4002C
cordless grass trimmer + edger. Should you wish to wind the
line yourself, the instructions are provided below. Self-
winding, however, is NOT recommended because if the line
is not wound properly it can cause the trimmer's auto feed
system to malfunction. For this reason, users are strongly
urged to purchase the pre-wound spool.
1. Stop the grass trimmer + edger, and remove the battery.
25
Spool
Spool cover
Tab
