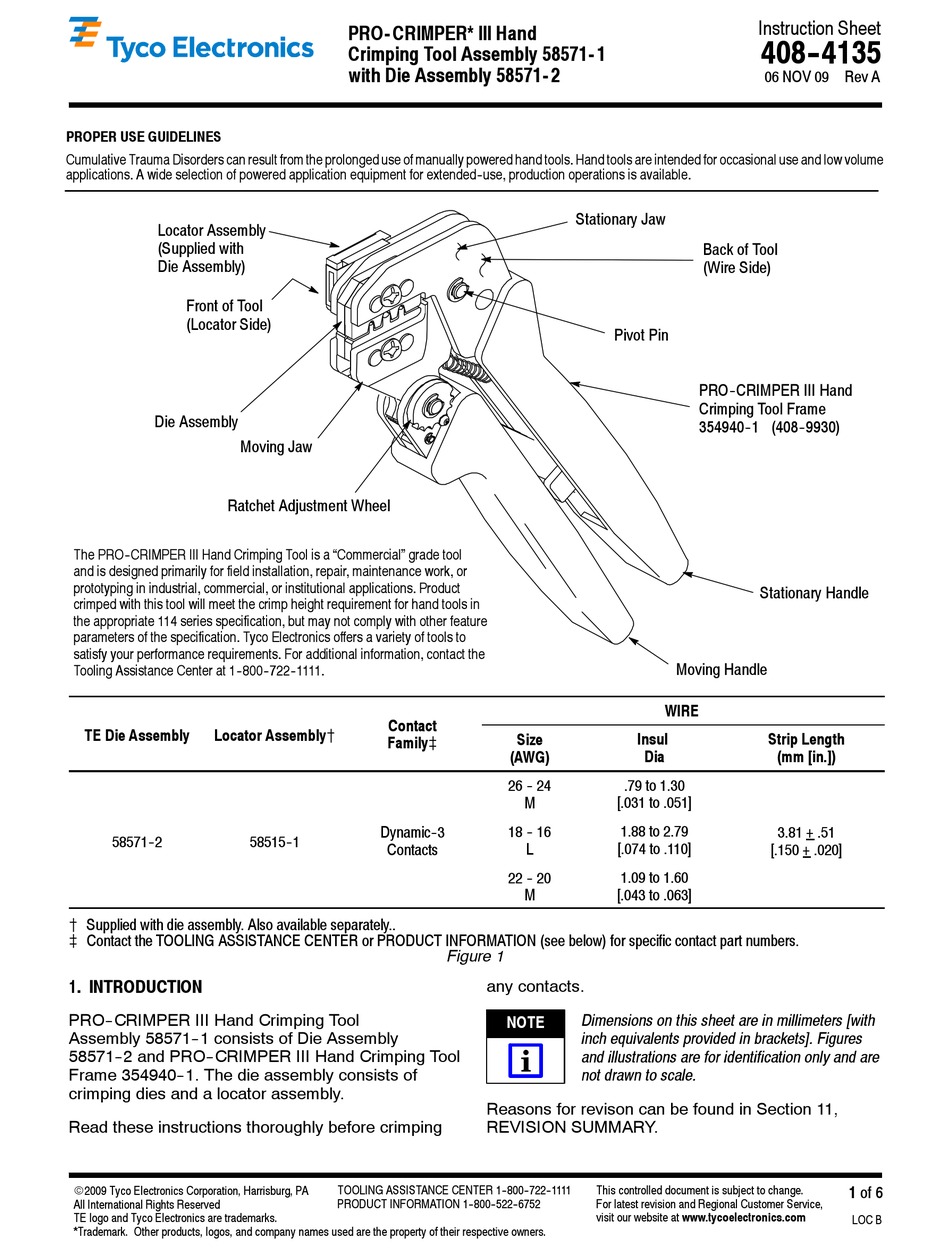

Tyco Electronics 58571-1 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Locator Assembly
(Supplied with
Die Assembly)
Front of Tool
(Locator Side)
Die Assembly
Moving Jaw
Ratchet Adjustment Wheel
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1- - 800- - 722- - 1111.
TE Die Assembly Locator Assembly{
58571--2
{ Supplied with die assembly. Also available separately..
} Contact the TOOLING ASSISTANCE CENTER or PRODUCT INFORMATION (see below) for specific contact part numbers.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool
Assembly 58571--1 consists of Die Assembly
58571--2 and PRO--CRIMPER III Hand Crimping Tool
Frame 354940--1. The die assembly consists of
crimping dies and a locator assembly.
Read these instructions thoroughly before crimping
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand
Crimping Tool Assembly 58571- 1
with Die Assembly 58571- 2
Contact Contact
Family}
Dynamic--3
58515--1
Contacts
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Pivot Pin
Size
(AWG)
.79 to 1.30
26 -- 24
M [.031 to .051]
1.88 to 2.79
18 -- 16
L [.074 to .110]
1.09 to 1.60
22 -- 20
M [.043 to .063]
Figure 1
any contacts.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
Reasons for revison can be found in Section 11,
REVISION SUMMARY.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4135
06 NOV 09 Rev A
Back of Tool
(Wire Side)
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Stationary Handle
Moving Handle
WIRE
Insul Strip Length
Dia (mm [in.])
3.81 + .51
[ [.150 + .020] ]
1 of 6
LOC B
