QUICK START GUIDE
FEATURES
• 1/3" 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• Motorized 3.3-12mm Varifocal Lens
• 2 High Power Infrared LED's with 100' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object
Removal/Museum Search, Line Crossing, and Area
Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS &
Android Apps
• IP66 Weather Resistance
• ONVIF Compliant
• Optional Wall (VT-TWM03) & Junction Box (VT-TJB01)
Mounts Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Gray

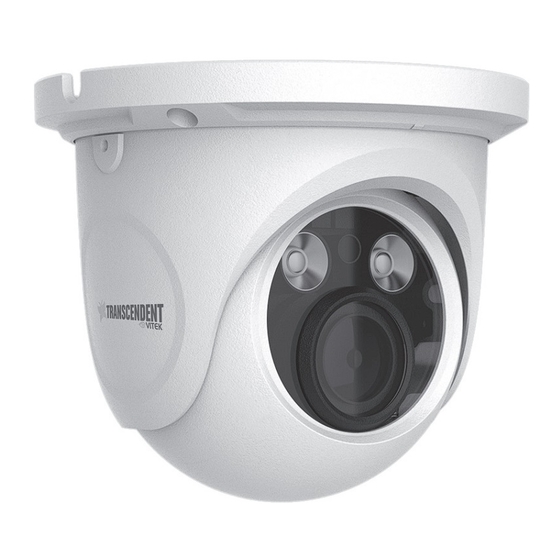

VTC-TNT4RMS
Megapixel H.265 Indoor/
Outdoor WDR IP Turret Camera with
2 High Power IR LED Illumination &
Motorized Varifocal Lens
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 4
Advertisement
Related Manuals for Vitek Transcendent VTC-TNT4RMS
Summary of Contents for Vitek Transcendent VTC-TNT4RMS
- Page 1 VTC-TNT4RMS Transcendent Series 4 Megapixel H.265 Indoor/ Outdoor WDR IP Turret Camera with 2 High Power IR LED Illumination & Motorized Varifocal Lens QUICK START GUIDE FEATURES • 1/3” 4.0 Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Product Manual CD Screws Waterproof Cap Hex Wrench Overview Lens Audio Input RJ-45 Ethernet Power Input CVBS Output Lock (Hex) - Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. Network Cable 12VDC Optional 12VDC Power Connection.
-
Page 4: Installation
Installation Before start, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the... - Page 5 Installation 4. Tighten the lock screws to secure the viewing angle adjustments. 6. Carefully remove the protective film from the lens to complete the installation.
-
Page 6: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool... - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 8: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
