Savant® ProAV 7 Source Audio Input IP Transmitter with Control (PAV-AIM7C)
Quick Reference Guide
Box Contents
(1) 7 Source Audio Input IP Transmitter (PAV-AIM7C-xx)
(1) Installation Kit (075-0194-xx)
(2) 6-pin Control Connector (028-9352-xx)
(1) 5V DC 3A Power Supply (025-0216-xx)
(1) Product Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° C (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)
Dimensions and Weight
Height
1.6 in
Device
(4.15 cm)
2.2 in
Shipping
(5.58 cm)
Power
Input 5V DC 3A
Maximum 15 Watts
Power over
(PAV-AIM7C-10 and -20 Only) IEEE 802.3af
Ethernet (PoE)
Networking
Supported IEEE 802.1 AVB/TSN switches
Standard IEEE 802.3 Ethernet
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Supported Releases
PAV-AIM7C-00
da Vinci 8.10.2 and higher
PAV-AIM7C-10
PAV-AIM7C-20 da Vinci 9.4.3 and higher
Network Requirements
For networking guidelines and recommendations, refer to the Savant
Device Networking Guidelines available on the
Knowledge Base.
PAV-AIM7C Quick Reference Guide | 009-1945-01
Copyright 2021 Savant Systems, Inc | 210901
Width Depth Weight
8.5 in 3.7 in 1.4 lb
(21.50 cm) (9.33 cm) (0.64 kg)
12.0 in 7.3 in 2.3 lb
(30.48 cm) (18.54 cm) (1.05 kg)
CE C-Tick
Savant Community

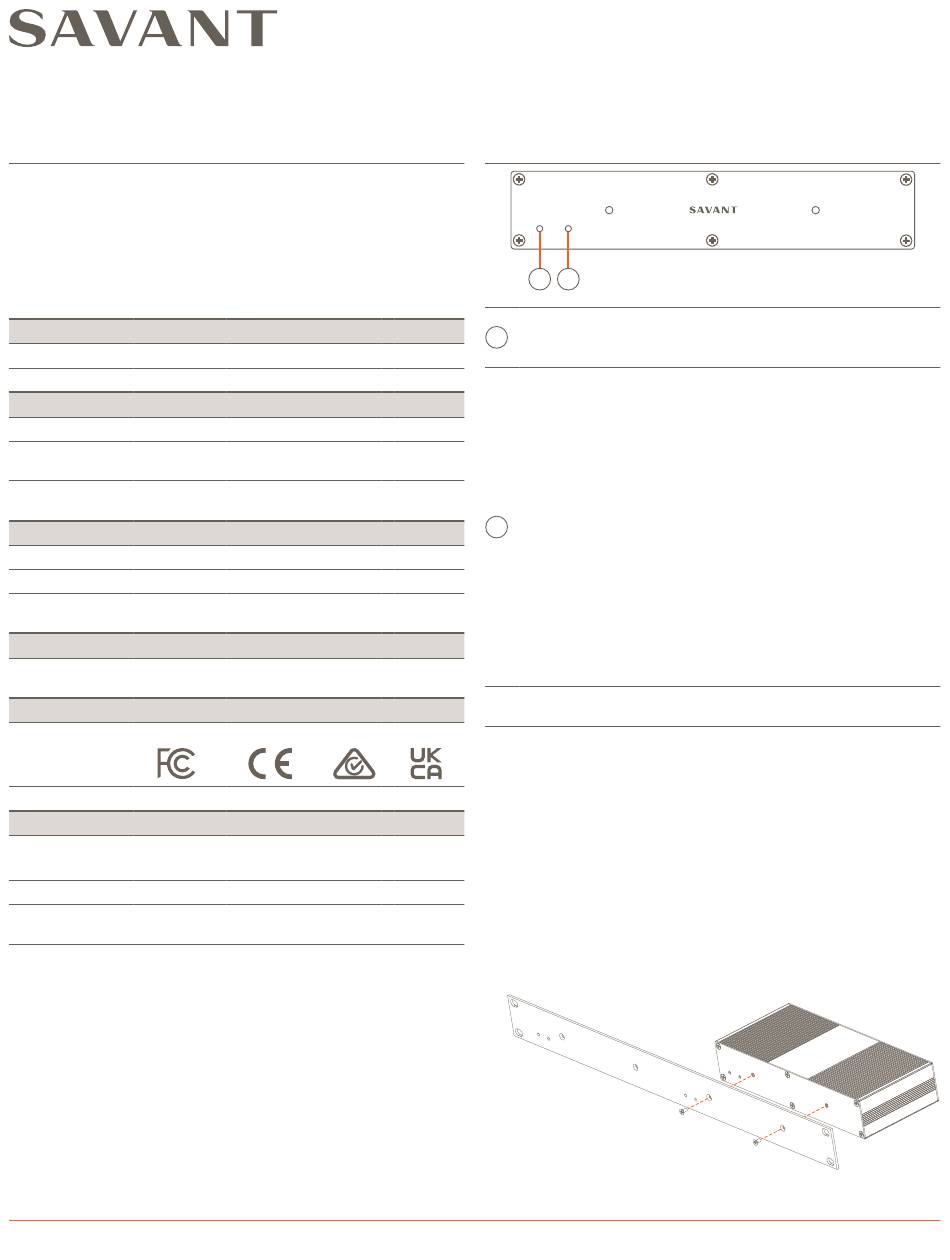

Front Panel
Power Status
A B
A
Power LED
B
Status LED
Installation
UKCA
The PAV-AIM7C should be installed on a solid, flat, level surface. The
device will fit on a 1U rack shelf. The location should be dry, well
ventilated, and out of direct sunlight.
IMPORTANT! The PAV-AIM7C must to be connected to an AVB Switch.
A Savant AVB audio output device is also required.
Rack
The optional RMB-PAVAM2F-xx or RMB-PAVAM2-xx allows two
devices to be mounted side by side. This rack is compatible with all
standard 19-inch National Electrical Manufacturers Association (NEMA)
rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way, face opposite directions.
1. Align the bracket with the device's mounting points.
2. Attach using the screws provided with the bracket.
1 of 2
Green: System has power and is operating
normally.
Off: System is not receiving power.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Green: Host has established communications with
the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link-local IP Address and is connecting to the
host.
