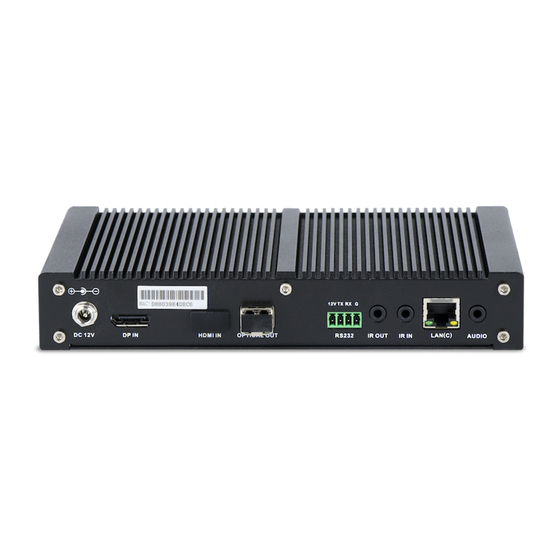

Savant® IP Video Single Input IP Transmitter 4K UHD
with Control (PAV-VIMVP1F/PAV-VIMVP1C)
Quick Reference Guide
Box Contents
(1) Savant IP Video Transmitter (PAV-VIMVP1F/PAV-VIMVP1C)
(1) SFP+ module (PAV-VIMVP1F only)
(1) Installation Kit (075-0199-xx)
(2) Mounting Brackets
(4) Screws
(1) IR Emitter (4ft long)
(1) Power Cord
(1) Power Adapter
(1) 4-pin Control Connector
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height 1.38 in (35.0 mm)
Width 8.27 in (210.0 mm)
Depth 5.47 in (139.0 mm)
Weight Net: 3.3lb (1.5 kg) | Shipping 4.8lb (2.2 kg)
Power
Input Power 12V 3A DC
16 W (PAV-VIMVP1F)
Nominal Power
19 W (PAV-VIMVP1C)
36 W (PAV-VIMVP1F)
Maximum Power
36 W (PAV-VIMVP1C)
Audio
Supported Pass-though of all HDMI audio formats are
Formats supported.
Video
HDR Supported
640x480
720x480
4
720x576
800x600
Supported
1024x768
Formats
1280x720
1280x720
1280x1024
1920x1080
1 = at 24 Hz 3 = at 30 Hz
2 = at 25 Hz 4 = at 50 Hz
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.8
PAV-VIMVP1F/PAV-VIMVP1C | 009-1603-00 | 180411
Copyright 2018 Savant Systems, LLC
5 3
1920x1080
5 4
1920x1080
5
1920x1080
5 5
1920x1200
5 1
3840x2160
4 2
3840x2160
5 3
3840x2160
5 4
3840x2160
1 5
3840x2160
5 = at 60 Hz
CE C-Tick
Required Components
Savant IP Video Receiver
Savant System Host
Savant qualified 10G Managed Network Switch
Savant User Interface
Savant Design and Configuration Tools

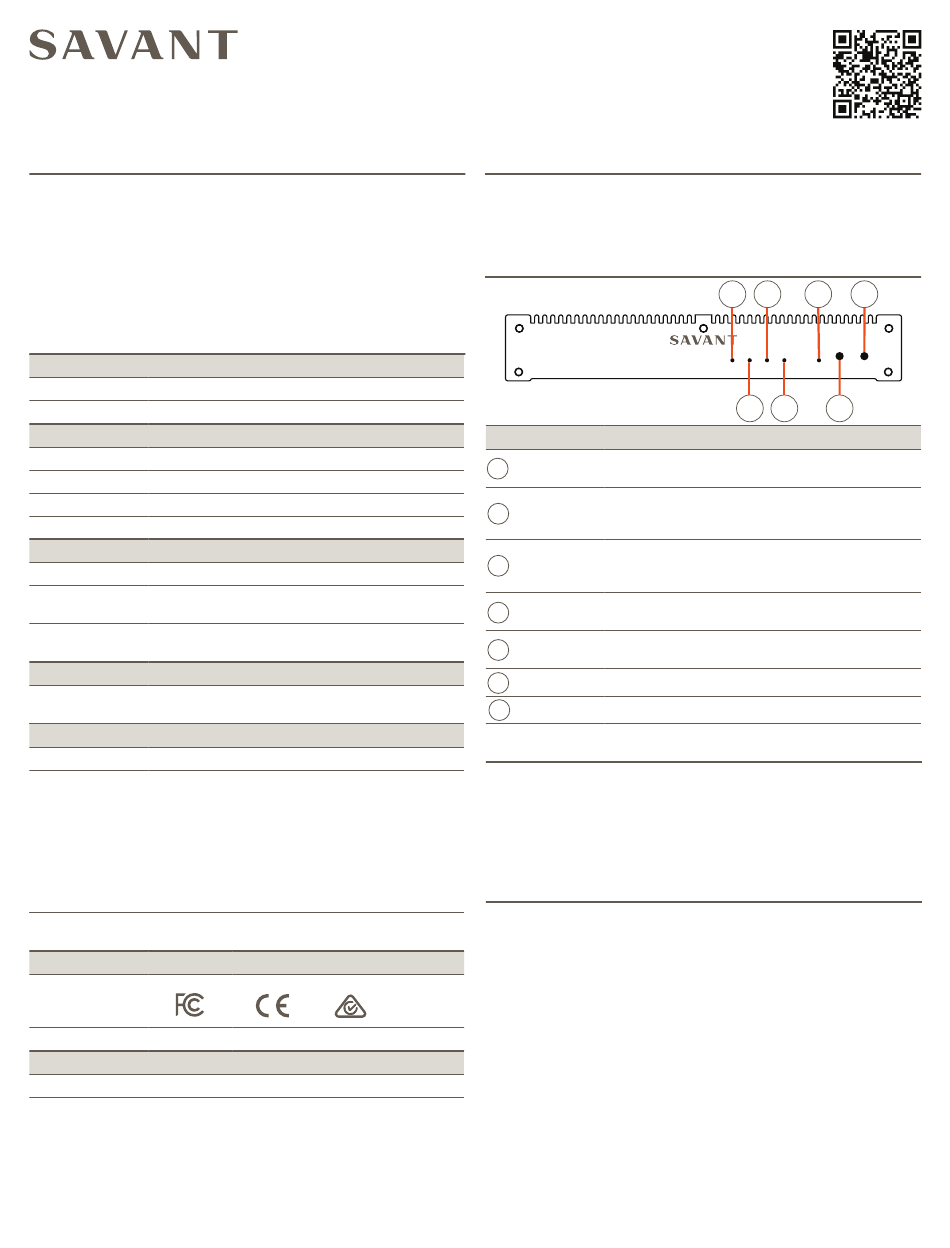

Front Panel
Item Description
Reserved for future use.
A
RSVD LED
Blue - LED on by default.
Off - No valid connection
B
Blue - Valid link
Link TX LED
Blinking - Sending Ethernet Data
Off - No valid connection
C
Link RX LED Blue - Valid link
Blinking - Receiving Ethernet
Off - No video signal detected.
D
Video LED
Blue - Video signal detected.
Off - Device is off. No power applied.
E
Power LED
Red - Main board is powered
F
P1 Reserved for future use.
G
RSVD Reserved for future use.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
Network Requirements
The A/V over IP Device requires a Savant qualified 10G managed
switch. This switch must be configured for the A/V over IP devices. For
more information on this see the Savant Audio/Video over IP Network
Configuration Guide on the Savant Customer Community.
1 of 2
For Product Info
A C E
B D F
