Savant ProAV Quick Reference Manual

ProAV 8 or 4 Input Transmitter 4K UHD with Control Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch (PAV-VIM8S-xx/PAV-VIM4S-xx)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) Power Cord (part number varies based on country)
(16) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM8S
(8) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM4S
(1) Product Regulatory Statement (009-1950-xx)
Required Components
–
Savant IP Video Output Receiver
– Savant System Host
– Savant qualified 10G Managed Network Switch
– Savant User Interface
– Savant Design and Configuration Tools
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended.
BTU 1365 BTU/hr
Dimensions and Weights
Device
Height 5.21 in (13.23 cm)
Width 17.30 in (43.94 cm)
Depth 14.24 in (36.17 cm)
Weight 14.5 lb (6.59 kg)
Rack Space 3U
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
Nominal Power N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
International - 156VA - (.68 A @ 240V AC 50Hz)
Maximum Power N. America - 400VA - (4 A @ 120V AC, 60Hz)
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card.
Compliance
Safety and FCC part 15
Emissions
RoHS Compliant
Supported Releases
PAV-VIM8S-00 da Vinci 8.7 and higher
PAV-VIM4S-00
PAV-VIM8S-10 da Vinci 9.3.4 and higher
PAV-VIM4S-10
PAV-VIM8S-xx/PAV-VIM4S-xx QRG | 009-1480-05
Copyright 2022 Savant Systems, Inc | 221003
Shipping
22.0 in (55.88 cm)
22.0 in (55.88 cm)
10.0 in (25.4 cm)
18.25 lb (8.27 kg)
CE C-Tick ETL

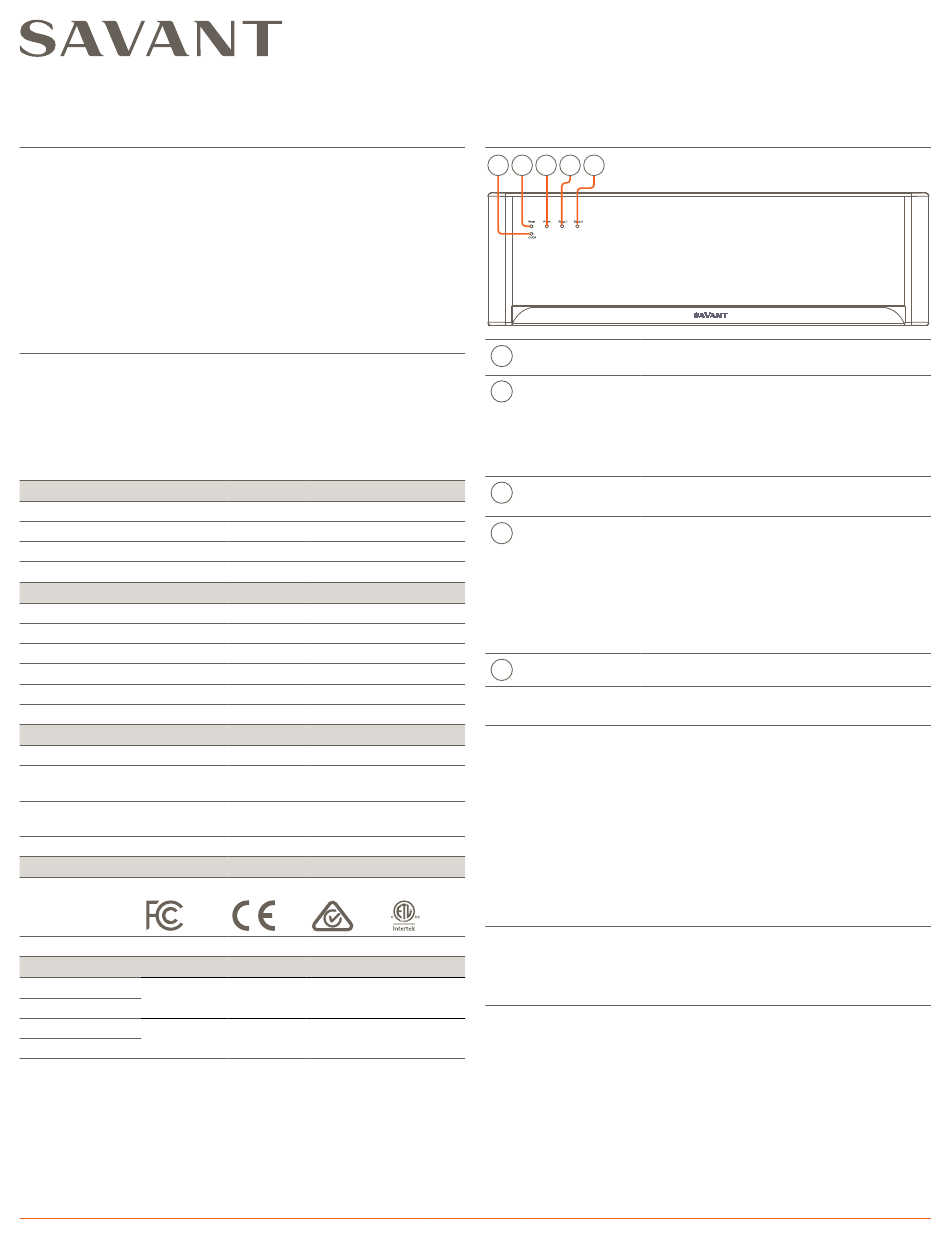

Front Panel
A B C D E
On/Off Button
A
Reset Button
B
Power LED
C
Status 1 LED
D
Status 2 LED
E
Optional Accessories (sold separately)
–1m OM3 Fiber Optic Patch Cable (CBL-OM3MM1M-xx)
–3m OM3 Fiber Optic Patch Cable (CBL-OM3MM3M-xx)
–5m OM3 Fiber Optic Patch Cable (CBL-OM3MM5M-xx)
–Fiber Transceiver Module (CON-FSFPNG1-xx)
–Duplex OM3 Indoor/Outdoor Plenum Rated Multi-Mode Fiber - 1000ft
(CBL-F2500-00)
–Fiber Termination Kit (FTK-F2000-xx)
–Fiber Test Kit (FTK-FTEST-xx)
Network Requirements
For more information, see the Savant Device Networking Guidelines
on the Savant Customer
Additional Information
Refer to the following documents located on the Savant Customer
Community for additional information.
– Savant Video over IP Deployment Guide (009-1977-xx)
–
Savant Video over IP Network Configuration Guide (009-1552-xx)
– Savant IP Audio Deployment Guide (009-1571-xx)
1 of 3
Reboots the main board (mcu) and power
cycles the IP Video transmit (Tx) cards.
Press and Release - Resets the IP Video
transmit (Tx) cards.
Press and hold – Clears the network
settings. Press and hold the button for 5
seconds until the Status LED blinks red
rapidly; then release.
Off – Device is off. No power applied.
Green – Main board is powered.
Blinks Twice – Provisioned to the local
network and is trying to connect to the
Host.
Rapid Blink (green) – The reset button was
pressed and held for five seconds, and the
device is performing a factory reset. All
network settings get cleared.
Short Off Blink – Firmware is updating.
Reserved for future use.
Community.
