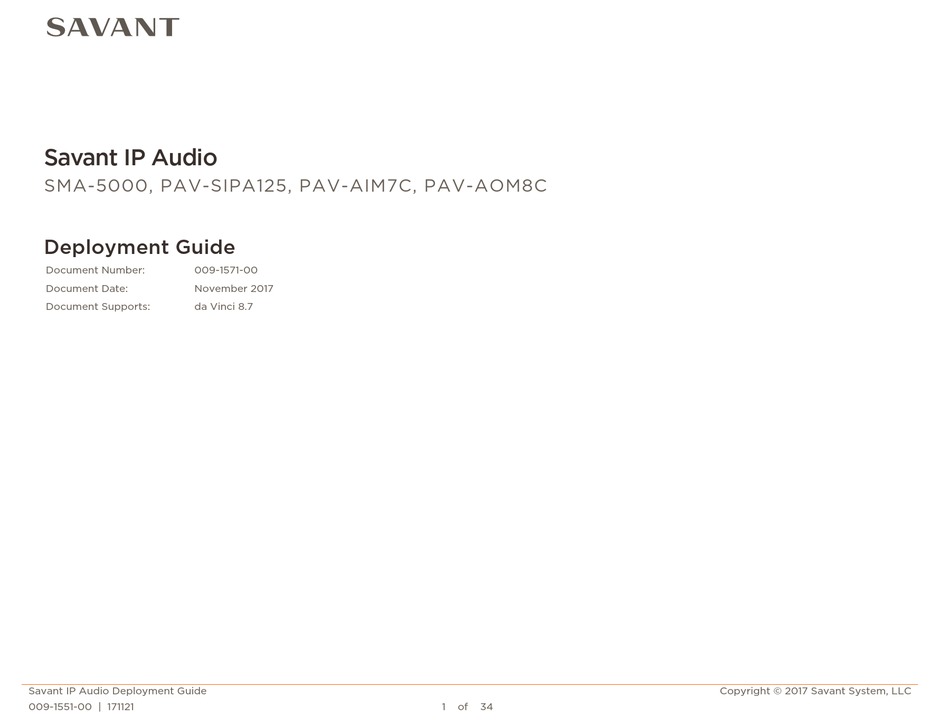

- Page 1 Savant IP Audio SMA-5000, PAV-SIPA125, PAV-AIM7C, PAV-AOM8C Deployment Guide Document Number: 009-1571-00 Document Date: November 2017 Document Supports: da Vinci 8.7 Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121...
-
Page 2: Table Of Contents
PAV-AIM7C/PAV-AOM8C ................17 Blueprint Configuration ................18 6.1. Basic Blueprint Layout .................. 18 6.2. Adding a Savant IP Audio to a Configuration ........19 6.3. Assigning Inputs and Outputs (I/Os) ............. 20 Web User Interface (Web UI) ..............21 7.1. - Page 3 13. Unplug this apparatus during lightning storms or when unused for WEIGHT INJURY! long periods of time. Installing some of the Savant equipment requires two installers to 14. Refer all servicing to qualified service personnel. Servicing is ensure safe handling during installation. Failure to use two installers required when the apparatus has been damaged in any way, such may result in injury.
-
Page 4: Introduction
1. Introduction This document will guide the installer through the process of installing, configuring, and adding Savant IP Audio devices to a RacePoint Blueprint® configuration. 1.1. Before You Begin Read through this document in its entirety and ensure that the following required items are available: Savant IP Audio device(s) .............................. -
Page 5: Deployment Steps
2. Deployment Steps Follow these steps to successfully deploy a Savant IP Audio devices. This page can be used as a checklist to record which steps have been completed. 1. Review product specifications and connection details ..................Savant IP Audio Equipment Overview 2. -
Page 6: Savant Ip Audio Equipment Overview
3. Savant IP Audio Equipment Overview 3.1. Box Contents and Specifications Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications. 3.2. SMA-5000 Front Panel Green: System has power and is operating normally. - Page 7 250V 3A Slow Blow fuse field replaceable. Power Input 100/240V 50/60 Hz 2.7A I (On): Powers On the controller. (power switch) O (Off): Powers Off the controller. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121...
-
Page 8: Pav-Sipa125
Red: Protection mode has been enabled to protect a zone/channel; typically indicates thermal protection, clipping or over current. Off: Zone is off and protection mode has not been enabled. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... - Page 9 100/240V AC (50/60 Hz) 5.7A Fuse: 250V 10A slow blow fuse; field replaceable I/O (power switch): Power Input I (On): Powers On the chassis. O (Off): Powers Off the chassis. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121...
-
Page 10: Pav-Aim7C
Green Blinking: Activity (Rx/Tx). Activity LED Off: No Activity. Green Solid: Ethernet Link is established. Ethernet Link LED Off: Ethernet link is not established. Power Input 5V DC 3A Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 11: Pav-Aom8C
Green Blinking: Activity (Rx/Tx). Activity LED Off: No Activity. Ethernet Green Solid: Ethernet Link is established. Link LED Off: Ethernet link is not established. Power Input 5V DC 3A Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 12: Wiring And Connections
4. Wiring and Connections The Savant IP Audio control connections send data to control a device and receive data to display current status on the user interfaces or trigger a system action. Each port type may support multiple protocols that are determined by the logical connection within Blueprint. -
Page 13: Ir Wiring
4.3. Speaker Wiring The SMA-5000 and the PAV-SIPA125 use the same Speaker wiring. Speaker wiring is made using 4-pin Speaker Connectors supplied with the IP Audio devices. The wire slips into the hole and locks with a screw located at the top of the connector. Speaker connectors accept up to 12AWG speaker cable. -
Page 14: Gpio
Power Management Recommendations Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut down the Savant Host before the battery runs out of power. Never remove power from the Savant devices before shutting them down. See Appendix E for more information. -
Page 15: Checking And Replacing The Fuse
If any resistance is encountered during seating the cartridge, DO NOT apply more pressure. Stop pressing on the cartridge, remove it, verify the orientation, and repeat step. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 16: Installation
5.1. SMA-5000 Rack Installation The SMA-5000 can be mounted in a 2U rack style enclosure and is compatible with all standard 19-inch NEMA rack mounts. The rack bracket needs to be attached prior to placing in a rack. Enclosure Installation The SMA-5000 device can be mounted in a structured media panel. -
Page 17: Pav-Sipa125
The PAV-AIM7C/PAV-AOM8C can be placed on a solid flat surface such as a table or shelf. Also, the PAV-AIM7C/PAV-AOM8C can be placed on any generic 1U NEMA rack shelf. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 18: Blueprint Configuration
6. Blueprint Configuration 6.1. Basic Blueprint Layout Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 19: Adding A Savant Ip Audio To A Configuration
6.2. Adding a Savant IP Audio to a Configuration This example shows adding a PAV-SIPA125, the basic process is the same no matter with IP Audio devices is being added to the configuration. In an open Blueprint configuration. 1. Click Show Library. -
Page 20: Assigning Inputs And Outputs (I/Os)
5. Move the outputs that need to be combined into the same Audio Output. For more information on the use of this feature please refer to Support for Multiple Audio Outputs Active Simultaneously in a Zone Application Note on the Savant Customer Community. Savant IP Audio Deployment Guide Copyright ©... -
Page 21: Web User Interface (Web Ui)
Current assigned IP Address. Firmware Version Current Firmware Version number. Uptime Amount of time the unit has been powered without a restart. Restart Restarts the software of the unit. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 22: Network Tab
Router Gateway. Revert Select to erase entered settings and revert back to saved settings. Apply and Restart Select to apply entered settings, and restart the device. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 23: Inputs & Outputs Tab
7.4. Inputs & Outputs Tab This tab is available on SMA-5000 and PAV-SIPA125. Analog Inputs: Stereo RCA, Digital Inputs (TosLink), Connector Type Media Server. Adjusts the gain of the input from -10 dB to +10 dB. Channel Trim Input List List of the inputs on the device. -
Page 24: Expansion
8. Expansion Up to sixteen Savant IP Audio devices can be connected using a MOTU AVB switch or a compatible switch certified for AVB/TSN switching. 8.1. Blueprint Layout 5 IP Audio devices This image shows just the IP Audio devices and the AVB/TSN switch to illustrate how to have these devices work as a “single switch”. - Page 25 4. Name the Device. 5. Place the MOTU switch in the layout window and make AVB connections. The Savant IP Audio devices Ethernet port must be connected to the MOTU AVB switch. Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC...
-
Page 26: Savant Music
9. Savant Music The SMA-5000 and PAV-SIPA125 both have a single stream of Savant Music. This allows the use of popular music streaming services such as Pandora or Spotify (streaming music service fee may apply). For a full list of supported services, see Savant Media Server/Savant Music Supported Streaming Services on the Savant Customer Community. -
Page 27: System Monitor
AVB/TSN Master/Slave notations display AVB Stations here. If “Freewheeling” displays AVB connections will not work. All active AVB/TSN connections that Connections originate on the selected device Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 28: Savant Music
10.2. Savant Music Savant Music Devices – List of devices in the configuration that have an enabled Savant Music stream. Firmware – Displays the current installed firmware version. Licensing – Displays the Autonomic license serial number. Airplay – Airplay settings, there is a limit of 32 characters for the Airplay name. -
Page 29: Appendix A: Network Requirements
Managing IP Addresses To ensure that the IP Address will not change due to a power outage, a static IP Address or DHCP reservation should be configured. Savant recommends using DHCP reservation within the router. By using this method, static IP Addresses for all devices can be managed from a single UI avoiding the need to access devices individually. -
Page 30: Appendix B: Document Revision History
Appendix B: Document Revision History 009-1571-00 – November 2017 Section Update Initial releases of this Deployment Guide Savant IP Audio Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171121... -
Page 31: Appendix C: Retrieving And Setting Ip Address
Appendix C: Retrieving and Setting IP Address The SDE must be connected to the same network as the Savant system in order to the devices to appear in rpmEmbSnanner. NOTE: The UID is needed to verify that the correct IP Address is being checked. Record the UID from the sticker located on the rear of the unit. -
Page 32: Appendix D: Dns (Add, Remove, Query)
Appendix D: DNS (Add, Remove, Query) Setting a DNS is only relevant to devices with a built in Savant Music stream. Follow the instructions below to, add, remove, or query the DNS servers configured on the IP Audio devices. Open a terminal window on a MacBook/SDE. -
Page 33: Appendix E: Uninterruptible Power Supply (Ups)
Appendix E: Uninterruptible Power Supply (UPS) Savant does not recommend any particular brand or model UPS, however there are a couple of factors that should be considered. It is important that the UPS does not only work during complete power loss but protects devices and their functionality during events like surges and brownouts. It is not uncommon for a residence or small business to see variations in power service that do not result in a complete black-out. - Page 34 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
