Savant PAV-VIM8S Quick Reference Manual

Savant® IP Video 8 or 4 Input Transmitter 4K UHD
with Control (PAV-VIM8S/PAV-VIM4S)
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch (PAV-VIM8S-00/PAV-VIM4S-00)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) Power Cord (064-0079-xx N. America)
or Power Cord (International can vary)
(16 or 8) 3-pin Control Connectors (028-9351-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended
BTU 1365 BTU/hr
Dimensions and Weights
Height 5.21 in (132.3 mm)
Width 17.30 in (439.4 mm)
Depth 14.24 in (361.7 mm)
Weight Net: 14.5lb (6.59 kg) | Shipping 18.25lb (8.27 kg)
Rack Space 3U
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Nominal Power
International - 156VA - (.68 A @ 240V AC 50Hz)
N. America - 400VA - (4 A @ 120V AC, 60Hz)
Maximum Power
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card
Audio
Supported Pass-though of all HDMI audio formats are
Formats supported.
Video
HDR Supported
640x480
720x480
4
720x576
800x600
Supported
1024x768
Formats
1280x720
1280x720
1280x1024
1920x1080
1 = at 24 Hz 3 = at 30 Hz
2 = at 25 Hz 4 = at 50 Hz
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.7
PAV-VIM8S-00/PAV-VIM4S-00 | 009-1480-02 | 180205
Copyright 2018 Savant Systems, LLC
5 3
1920x1080
5 4
1920x1080
5
1920x1080
5 5
1920x1200
5 1
3840x2160
4 2
3840x2160
5 3
3840x2160
5 4
3840x2160
1 5
3840x2160
5 = at 60 Hz
CE C-Tick
Required Components
Savant Audio/Video over IP Device (PAV-VOMVP1F/PAV-VOMVP1C)
Savant System Host
Savant qualified 10G Managed Network Switch
Savant User Interface
Savant Design and Configuration Tools

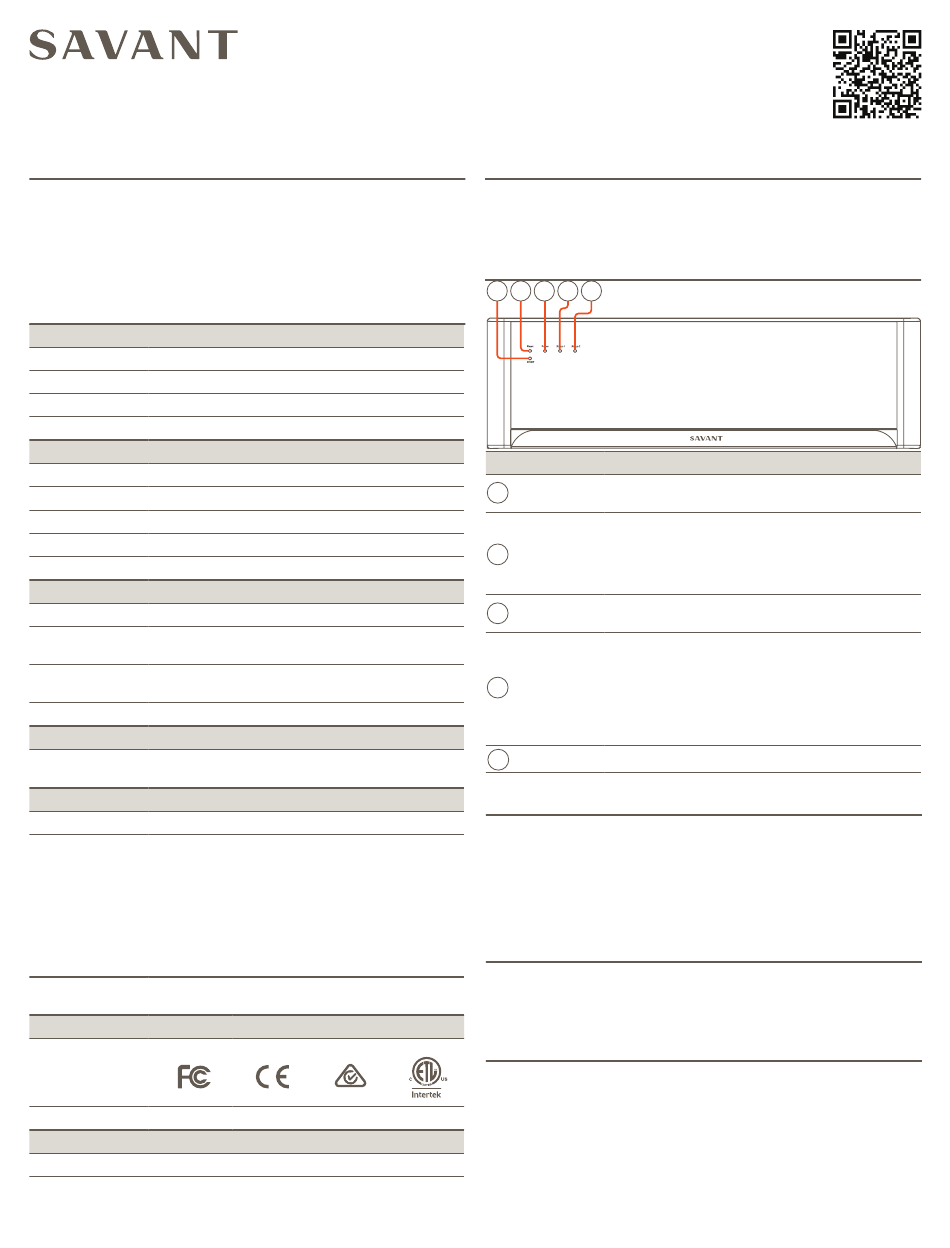

Front Panel
A B C D E
Item
On / Off
A
Button
B
Reset Button
C
Power LED
D
Status 1 LED
E
Status 2 LED
Network Configuration
To ensure that the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
Network Requirements
The A/V over IP device requires a Savant qualified 10G managed
switch. This switch must be configured for the A/V over IP devices. For
more information on this see the Savant Audio/Video over IP Network
Configuration Guide on the Savant Customer Community.
Installation
ETL
The Savant Audio/Video over IP 8-Port / 4-port Transmitter chassis
can be mounted using the included rack mounting ears and hardware
in a 3U rack style enclosure and is compatible with all standard 19-inch
National Electrical Manufacturers Association (NEMA) rack mounts.
For more information see the Savant Audio/Video over IP Deployment
Guide on the Savant Customer Community.
1 of 2
Description
Reboots the main board (mcu) and power cycles
the IP Video transmit (Tx) cards
Press and Release - Resets the IP Video transmit
(Tx) cards.
Press and hold – Clears the network settings.
Press and hold button for 5 seconds until Status
LED blinks red rapidly; then release.
Off – Device is off. No power applied.
Green – Main board is powered
Blinks Twice – Provisioned to the local network
and is currently connecting to the Host
Rapid Blink (green) – The reset button was
pressed and held for five seconds and the A/V
over IP unit is performing a factory reset. All
network settings are cleared.
Short Off Blink – Firmware is updating
Reserved for future use.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
For Product Info
| 508.683.2500
