Savant PAV-VIM8S Quick Reference Manual

Savant® ProAV 8 or 4 Input Transmitter 4K UHD with Control (PAV-VIM8S/PAV-VIM4S)
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch (PAV-VIM8S-00/PAV-VIM4S-00)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) Power Cord (part number varies based on country)
(16) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM8S
(8) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM4S
(1) Product Regulatory Insert (009-1677-xx)
Required Components
– Savant Audio/Video over IP Device (PAV-VOMVP1F/PAV-VOMVP1C)
– Savant System Host
–
Savant qualified 10G Managed Network Switch
– Savant User Interface
– Savant Design and Configuration Tools
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended
BTU 1365 BTU/hr
Dimensions and Weights
Height 5.21 in (13.23 cm)
Width 17.30 in (43.94 cm)
Depth 14.24 in (36.17 cm)
Weight Net: 14.5lb (6.57 kg) | Shipping 18.25lb (8.28 kg)
Rack Space 3U
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
Nominal N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Power International - 156VA - (.68 A @ 240V AC 50Hz)
Maximum N. America - 400VA - (4 A @ 120V AC, 60Hz)
Power International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.7
PAV-VIM8S-00/PAV-VIM4S-00 QRG | 009-1480-03
Copyright © 2020 Savant Systems, LLC | 200505
CE C-Tick ETL

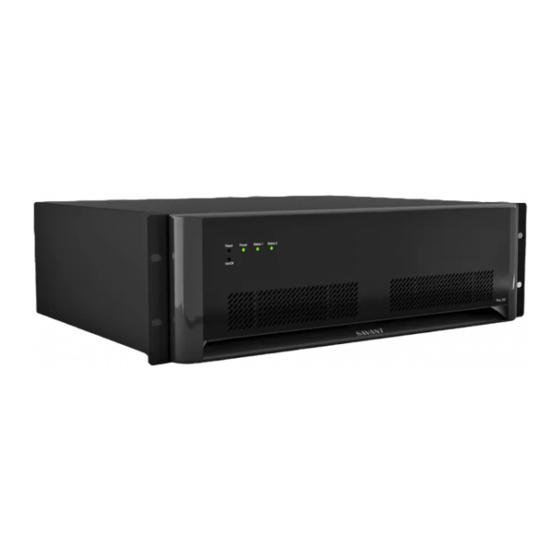

Front Panel
A B D
Reset Power Status 1 Status 2
On/O
C E
Item Description
On/Off Reboots the main board (mcu) and power cycles
A
Button the IP Video transmit (Tx) cards.
Press and Release - Resets the IP Video transmit
(Tx) cards.
Reset
B
Press and hold – Clears the network settings. Press
Button
and hold the button for 5 seconds until the Status
LED blinks red rapidly; then release.
Off – Device is off. No power applied.
Power
C
LED
Green – Main board is powered.
Blinks Twice – Provisioned to the local network
and is trying to connect to the Host.
Rapid Blink (green) – The reset button was
Status 1
D
pressed and held for five seconds, and the device
LED
is performing a factory reset. All network settings
get cleared.
Short Off Blink – Firmware is updating.
Status 2
E
Reserved for future use.
LED
Network Configuration
To ensure the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method, IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
Network Requirements
This A/V over IP device requires a Savant qualified 10G managed
switch. For more information on setting up any of the qualified 10G
switches, refer to the Savant IP Video Network Configuration Guide
(009-1552-xx) on the Savant Customer
Installation
The Savant Pro AV 8-Port / 4-port Transmitter chassis can be mounted
using the included rack-mounting ears and hardware in a 3U rack
style enclosure and is compatible with all standard 19-inch National
Electrical Manufacturers Association (NEMA) rack mounts. For more
information, see the Savant IP Video Deployment Guide (009-1551-xx)
on the Savant Customer
