Savant PAV-VIMAP8S2 Series Quick Reference Manual

IP Video 8 or 4 Input Transmitter 4K UHD with Audio Processing and Control
[PAV-VIMAP8S2-xx/PAV-VIMAP4S2-xx] Quick Reference Guide
Box Contents
(1) IP Video Input Transmitter
(PAV-VIMAP8S2-xx/PAV-VIMAP4S2-xx)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) 4 ft Power Cord (064-0443-xx N. America)
or 4ft Power Cord (International. Can vary.)
(16 or 8) 3-pin Control Connectors (028-9351-xx)
(1) Product Regulatory Insert (009-2261-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity
(non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended.
BTU 1365 BTU/hr
Dimensions and Weights
Device
Height 5.21 in(13.23 cm)
Width 17.30 in (43.94 cm)
Depth 14.24 in (36.17 cm)
Weight 14.5 lb (6.59 kg)
Rack Space 3U
Power
Input 100-240V AC 50/60Hz, (5A maximum)
Nominal N. America - 144VA (1.2 A @ 120V AC, 60Hz)
International - 156VA (.68 A @ 240V AC 50Hz)
Maximum N. America - 400VA (4 A @ 120V AC, 60Hz)
International - 432VA (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card.
Compliance
Safety and FCC Part 15
Emissions
RoHS Compliant
Supported Release
PAV-VIMAP8S2-00
da Vinci 10.1.2 and higher
PAV-VIMAP4S2-00
IP Video Input Transmitter Quick Reference Guide | 009-2219-01
Copyright © 2022 Savant Systems, Inc. | 220929
Shipping
22.0 in (55.88 cm)
22.0 in (55.88 cm)
10.0 in (25.4 cm)
18.25 lb (8.27 kg)
ETL CE UKCA
Required Components
– Savant System Host
– Savant IP Video Receiver
– Savant qualified 10G Managed Network Switch
– Savant User Interface (Pro App)
– Savant Development Environment (SDE)

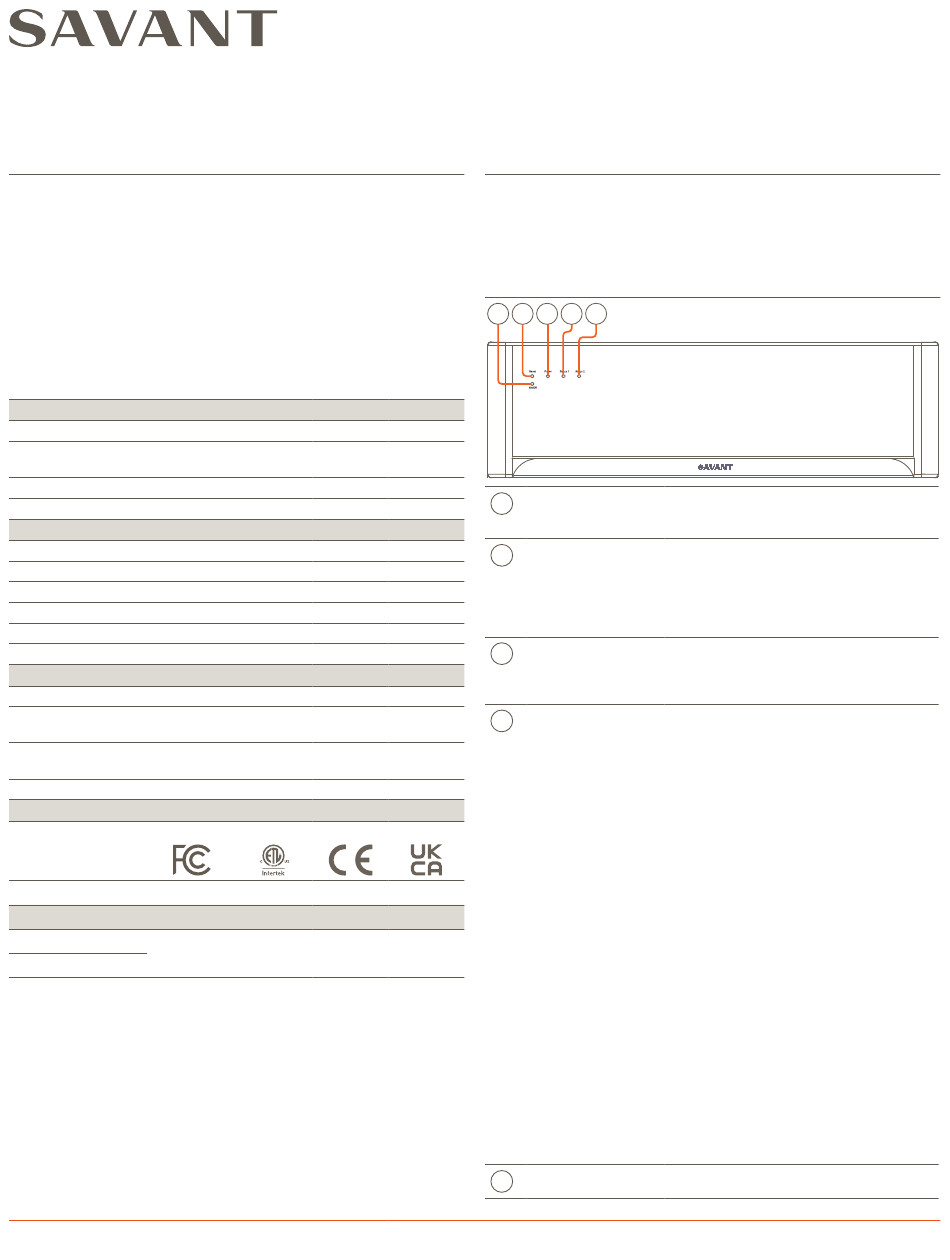

Front Panel
A B C D E
On / Off Button
A
Reset Button
B
Power LED
C
Status 1 LED
D
Status 2 LED
E
1 of 3
Reboots the main board (MCU) and
power cycles the IP Video transmit (Tx)
cards
Press and Release: Resets the IP Video
transmit (Tx) cards.
Press and hold: Clears the network
settings. Press and hold button for 5
seconds until Status LED blinks red
rapidly; then release.
Green: Main board is powered.
Amber: FPGA is currently being
updated.
Off: Device is off. No power applied.
Green: Host has established
communications with the embedded
system.
Green Blinking: Embedded system is
ready, but no communication has been
established with the host.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system
has a valid link local IP address and is
connecting to the host.
Red: Host has determined the firmware
needs to be updated, but a problem
occurred during the process that will
initiate a reset.
Red Blinking: Embedded firmware is
running, but has not received a DHCP IP
address.
Off: Embedded processor is resetting,
or is powered up, and is booting the
embedded firmware.
Hardware Failure: If a hardware failure
occurs, the status LED indication will be
interrupted every three seconds with a
solid red indication. For example, If the
LED is blinking green when a hardware
failure occurs, the LED will alternate
between blinking green and solid red at
three-second intervals.
Reserved for future use.
