Savant ProAV PAV-VIM8S Quick Reference Manual

Savant® ProAV 8 or 4 Input Transmitter 4K UHD with Control [PAV-VIM8S/PAV-VIM4S]
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch (PAV-VIM8S-xx/PAV-VIM4S-xx)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) Power Cord (part number varies based on country)
(16) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM8S
(8) 3-Pin Screw Down Connector (028-9351-xx) - PAV-VIM4S
(1) Product Regulatory Statement (009-1950-xx)
Required Components
– Savant Audio/Video over IP Output Receiver
– Savant System Host
– Savant qualified 10G Managed Network Switch
–
Savant User Interface
– Savant Design and Configuration Tools
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended.
BTU 1365 BTU/hr
Dimensions and Weights
Height
5.21 in
Device
(13.23 cm)
22.0 in
Shipping
(55.88 cm)
Rack Space 3U
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Nominal Power
International - 156VA - (.68 A @ 240V AC 50Hz)
N. America - 400VA - (4 A @ 120V AC, 60Hz)
Maximum Power
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card.
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Supported Releases
PAV-VIM8S-00
da Vinci 8.7 and higher
PAV-VIM4S-00
PAV-VIM8S-10
da Vinci 9.3.4 and higher
PAV-VIM4S-10
PAV-VIM8S-xx/PAV-VIM4S-xx QRG | 009-1480-04
Copyright 2021 Savant Systems, Inc | 210428
Width Depth Weight
17.30 in 14.24 in 14.5 lb
(43.94 cm) (36.17 cm) (6.59 kg)
22.0 in 10.0 in 18.25 lb
(55.88 cm) (25.4 cm) (8.27 kg)
CE C-Tick ETL

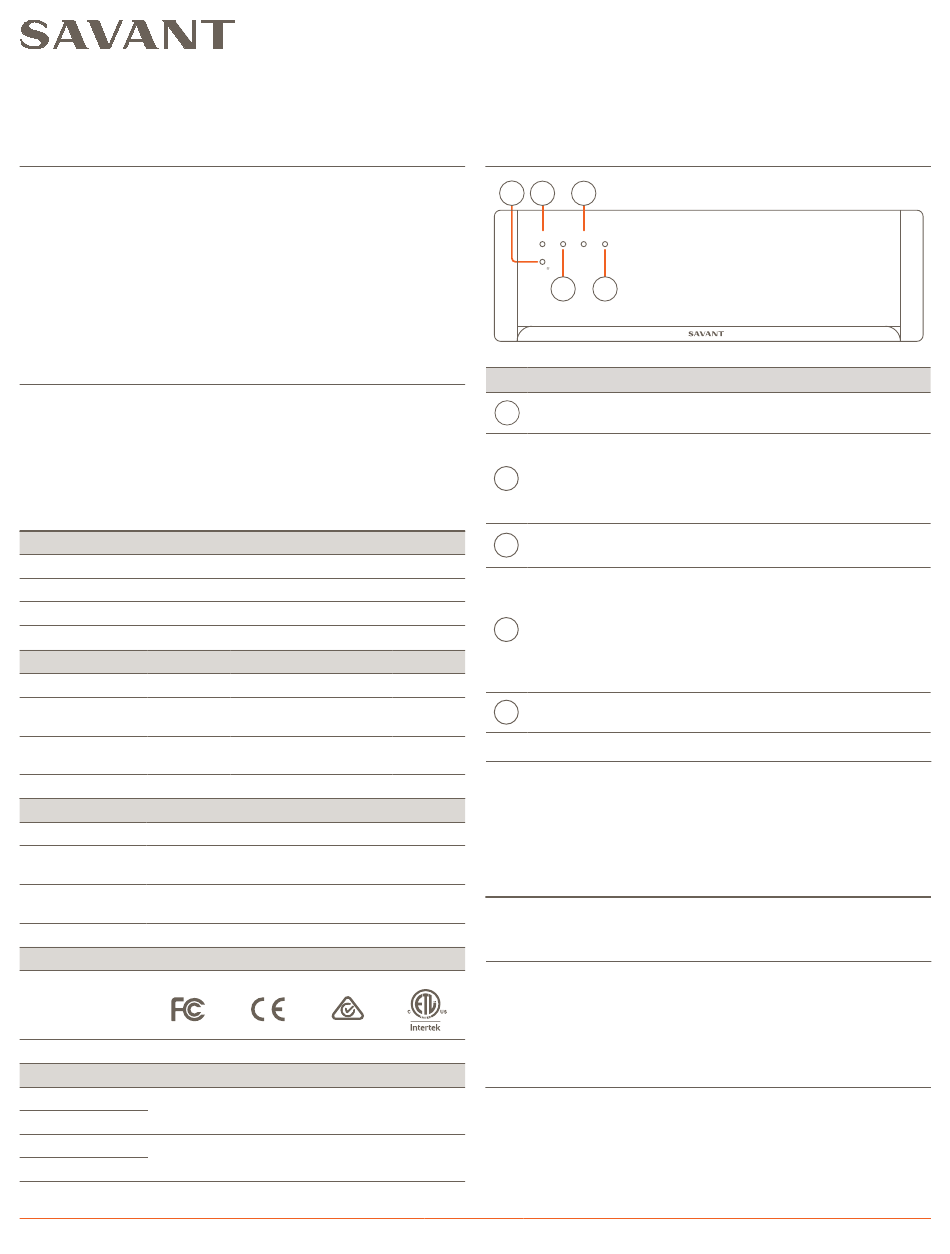

Front Panel
A B D
Reset Power Status 1 Status 2
On/O
C E
Item Description
On/Off Reboots the main board (mcu) and power cycles
A
Button the IP Video transmit (Tx) cards.
Press and Release - Resets the IP Video transmit
(Tx) cards.
Reset
B
Press and hold – Clears the network settings. Press
Button
and hold the button for 5 seconds until the Status
LED blinks red rapidly; then release.
Off – Device is off. No power applied.
Power
C
LED
Green – Main board is powered.
Blinks Twice – Provisioned to the local network
and is trying to connect to the Host.
Rapid Blink (green) – The reset button was
Status 1
D
pressed and held for five seconds, and the device
LED
is performing a factory reset. All network settings
get cleared.
Short Off Blink – Firmware is updating.
Status 2
E
Reserved for future use.
LED
Network Configuration
To ensure the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method, IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
Network Requirements
For more information, see the
the Savant Customer Community
Installation
The Savant Pro AV 8-port / 4-port Transmitter chassis can be mounted
using the included rack-mounting ears and hardware in a 3U rack
style enclosure and is compatible with all standard 19-inch National
Electrical Manufacturers Association (NEMA) rack mounts. For more
information, see the Savant IP Video Deployment Guide (009-1977-xx)
on the Savant Customer
Additional Information
See the following documents located on the Savant Customer
Community for more information.
– Savant IP Video Deployment Guide (009-1977-xx)
–
Savant IP Video Network Configuration Guide (009-1552-xx)
– Savant IP Audio Deployment Guide (009-1571-xx)
1 of 3
Savant Device Networking Guidelines
Community.
