Savant SmartLink HDBaseT HTX-SLN501 Quick Reference Manual

The Savant ® HTX-SLN501 SmartLink HDBaseT™ Transmitter Box is capable of
transmitting audio and video, IR and RS-232 control, Ethernet and Power up to 328 ft
(100 meters) via a single Cat 5e/6/7 cable. Endpoints can be a Savant HDBaseT
receiver or any HDBaseT-compliant receiver.
Box Contents
(1) SmartLink (HTX-SLN501)
(1) Installation Kit (075-0167-xx):
(1) Power Supply 12V 18 watt wall wart with multiple blades (025-0132-xx)
(2) M3 x 4 mm Screws (039-0302-xx)
(1) Wall Mounting Bracket (017-0872-xx)
(1) 4-Pin Screw Down Plug in Connector (028-9395-xx)
(1) Quick Reference Guide (this document)
Optional Accessories
• HRX-SLN501 SmartLink HDBaseT Receiver
• Infrared (IR) Emitter Single Pack (IRB-1000)
• Infrared (IR) Emitter 10 Pack (IRB-1010)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 25 cubic feet per minute (CFM) recommended.
Maximum BTUs 7 BTUs per hour
Dimensions and Weight Dimensions and Weight
Height 0.94 in (2.39 cm)
Width 4.56 in (11.58 cm)
Depth 3.18 in (8.07 cm)
Weight Shipping: 1.35 lb (0.61 kg)
Power Power
AC Input - 120V-230V AC 50 Hz - 60 Hz
External Power External Power
Maximum DC output 12V at 1.5 Amps
DC Input Power 1 Amp typical (1.5 A maximum) at 12V
Maximum Power
6 Watts (18 Watts when powering remote receiver)
Draw
Operational Parameters Operational Parameters
Audio Signals Passes up to Dolby TrueHD or DTS-HD Master Audio
Video Signals Up to 1080p@60Hz, 1920x1200
Supported Video Formats Supported Video Formats
HDMI™ Compliant—Supports 3D formats
High-bandwidth Digital Content Protection (HDCP)—
HDCP 1.3 supports encryption and decryption of audio and video
content.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p at 50/60 Hz, 1080p at 24 Hz 480i, 480p, 576i, 576p, 720p, 1080i, 1080p at 50/60 Hz, 1080p at 24 Hz
640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 960, 1920 x 1080, 1920 x 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 960, 1920 x 1080, 1920 x
1200 —all at 60 Hz 1200 —all at 60 Hz
3D Formats Supported 3D Formats Supported
1080p at 24 Hz Frame Packed/Top and bottom
720p at 50/60 Hz Frame Packed/Top and bottom
1080i at 50/60 Hz Side by side
Supported Audio Output Formats Supported Audio Output Formats
Supports Dolby® TrueHD™, DTS-HD® Master Audio, Dolby, Dolby Digital Plus, Supports Dolby® TrueHD™, DTS-HD® Master Audio, Dolby, Dolby Digital Plus,
DTS, and Stereo PCM digital audio formats. DTS, and Stereo PCM digital audio formats.
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
RoHS Compliant
Enclosure Enclosure
Metal enclosure with Savant's Design Signature, black Metal enclosure with Savant's Design Signature, black
Minimum Release Requirement: da Vinci 6.0.1 Minimum Release Requirement: da Vinci 6.0.1
Savant OS da Vinci 6.0.1
HTX-SLN501-00 | 009-1102-02 | 140502
SmartLink HDBaseT™ Transmitter Box
(HTX-SLN501)
Quick Reference Guide

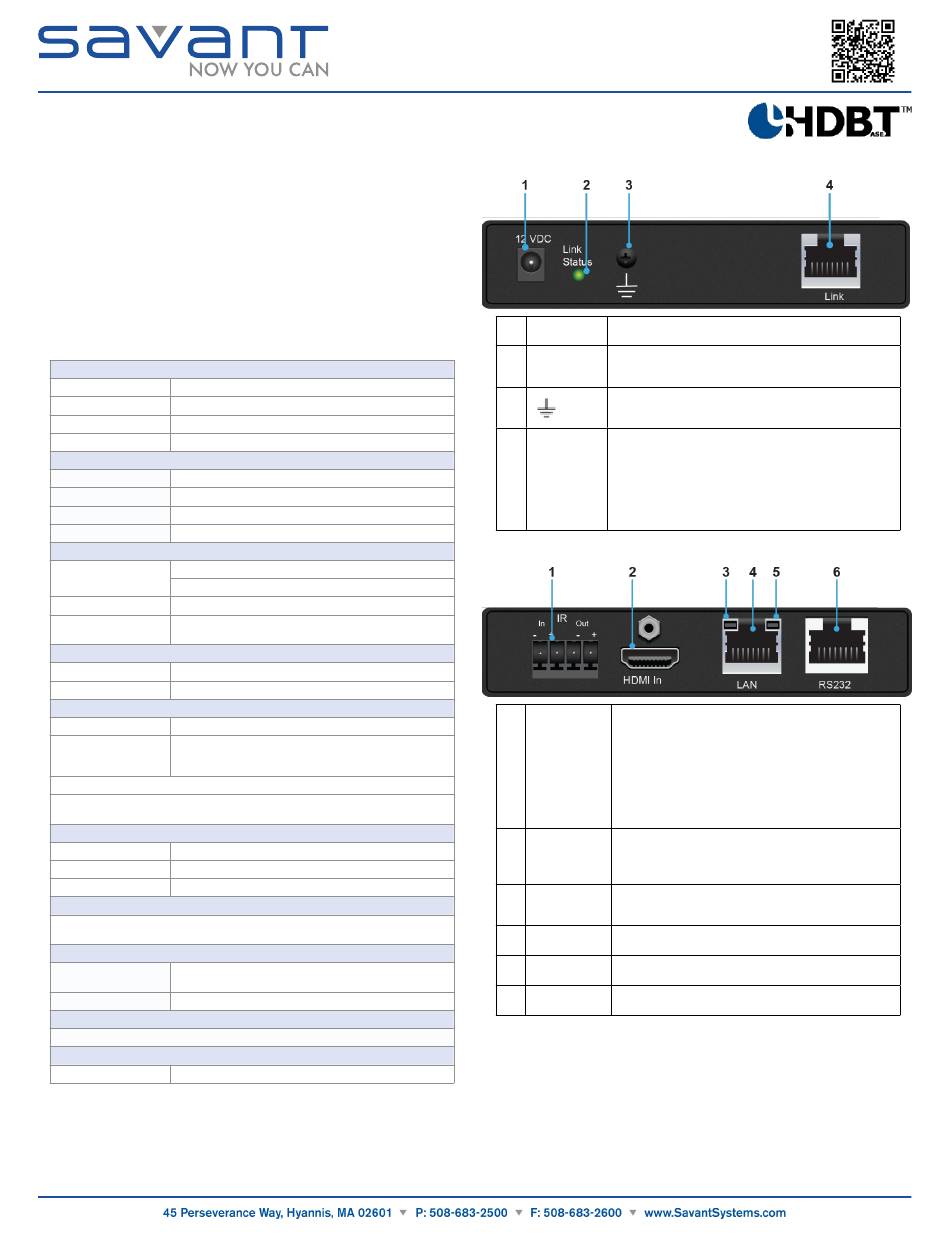

Front Panel
1 12V DC
2 Link Status LED
3
4 Link
Rear Panel
1 IR In/Out
2 HDMI In
Link Activity
3
LED
4 LAN
Link Speed
5
LED
6 RS232
Savant Confidential and Proprietary
Scan this QR code for
additional product
information.
Provides 12V DC, 120-230V AC, 50/60 Hz
Green - indicates the SmartLink connection is established.
Red - indicates power is present and the the SmartLink
connection is not established.
Ground Connector (optional)
Connect this terminal to a suitable ground surface.
Eight-pin RJ-45 female shielded
•
HDBaseT compliant - Connect to SmartLink inputs of
•
SmartLink receivers or to HDBaseT devices via single Cat 5e/
6/7 cable
Extends video and bidirectional RS-232, IR, and audio signals
•
through a single category cable
Female-connector ports used to transmit and receive serial
•
binary data
4-Pin Screw Down Plug in Connector (3.81mm).
IR IN receives IR Signals from a Savant or third party
controller to an HDBaseT receiver to control devices
located at the endpoint.
IR Out sends IR signals transmitted from an HDBaseT
receiver at the endpoint to control devices located near
the transmitter. This port can connect directly to a
devices IR IN or an IR Flasher.
NOTE: IR IN and OUT ports are 5V tolerant only.
• 19-pin type A HDMI female
• Digital video/audio inputs
• Signal types HDMI and DVI (DVI/D Compatible)
DVI requires DVI to HDMI adapter (not included)
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.
RJ-45 10/100 Base-T, auto-negotiating port with Link/
Activity LEDs.
Green indicates an Ethernet speed of 100 Mb.
RJ-45 female-connector ports used to transmit and
receive serial binary data.
1 of 2
