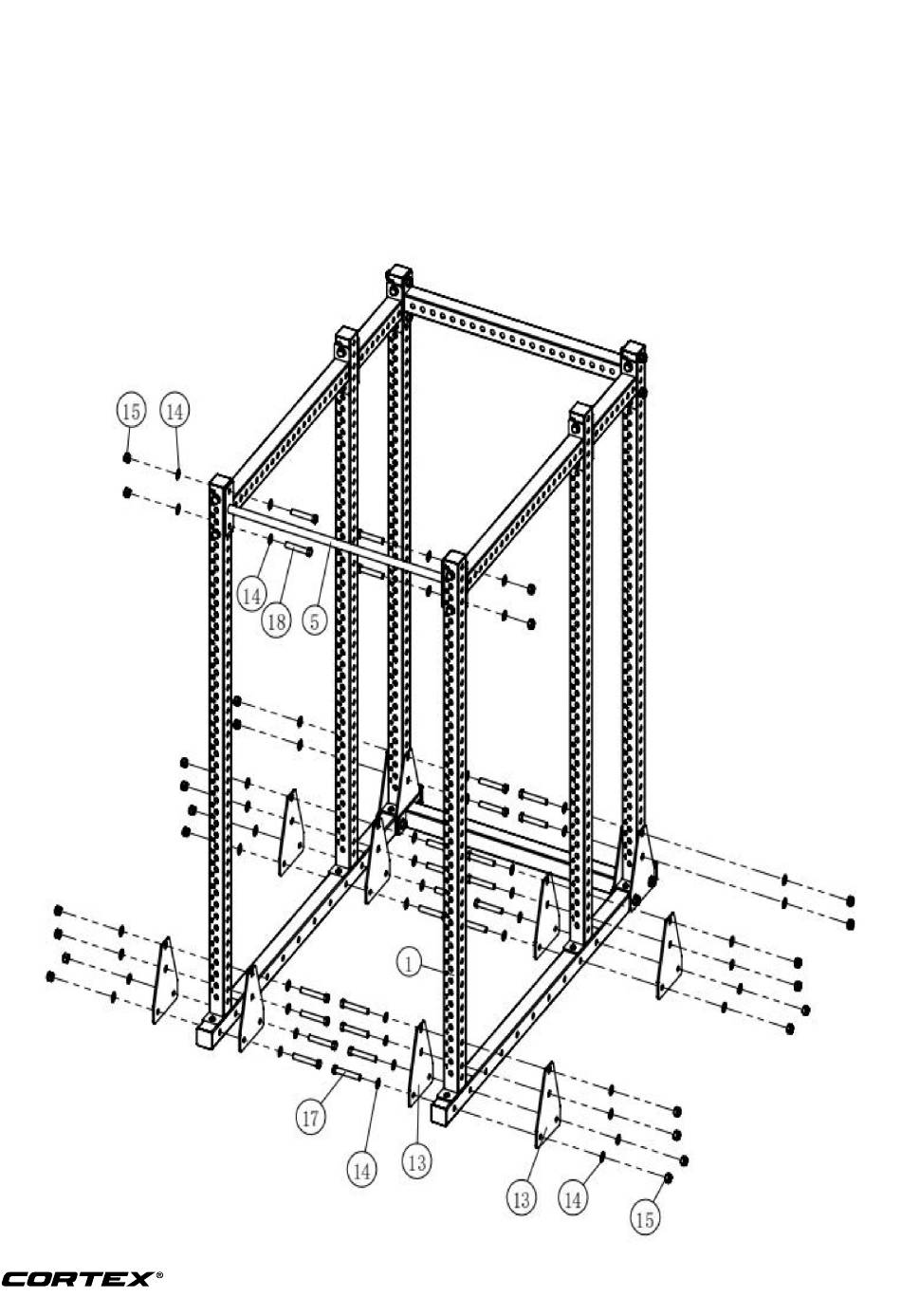

STEP 3
1. Attach Top handle framework (5) to The riser rack (1), Using Screw M20x110(18), Flat washer
Ф20 (14), Lock nut M20 (15).
2. Attach The bottom tube (12) to The riser rack (1), Using The fixed plate (13), Screw M20X120
(17), Screw M20X110 (18), Flat washer Ф20 (14), Lock nut M20 (15).
8
