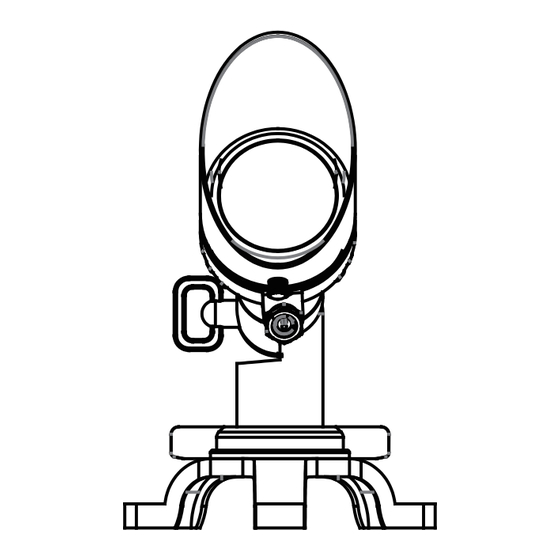

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® ForesterPro Downlight ® AAL-1015-40-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE ForesterPro Downlight ® AAL-1015-40-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Install Fixture
Package Contents A. (1) Fixture C. (3) Spacers B. (3) Screws Product Dimensions 6 5/8” 4.68” 4 1/8” Install Fixture Washer (optional, not supplied) Foot Determine the desired location for the fixture. Place the washers onto the self-tapping screws. Pass Self-tapping Screw the self-tapping screws through the holes of the feet of fixture and... - Page 4 INSTALLATION & MAINTENANCE GUIDE ForesterPro Downlight ® AAL-1015-40-B-BZ Wire Connections Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Pigtail Wire Connectors Main Supply Cable...
- Page 5 INSTALLATION & MAINTENANCE GUIDE ForesterPro Downlight ® AAL-1015-40-B-BZ Install/Replace Optic Remove Glare Guard Loosen the set screw and remove the glare guard from the fixture. Fixture Set Screw Glare Guard Remove Fixture Lens Turn the fixture lens counter- clocwise and remove it from the fixture.
- Page 6 INSTALLATION & MAINTENANCE GUIDE ForesterPro Downlight ® AAL-1015-40-B-BZ Replace Optic Loosen the screws, and remove the optic from the fixture. Fixture Install the new optic in the fixture LED Board and reverse Step 6 - Step 4. Confirm the optic is properly aligned over the LED board before tightening down.
- Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1015-40-B-BZ-ver2.pdf...
