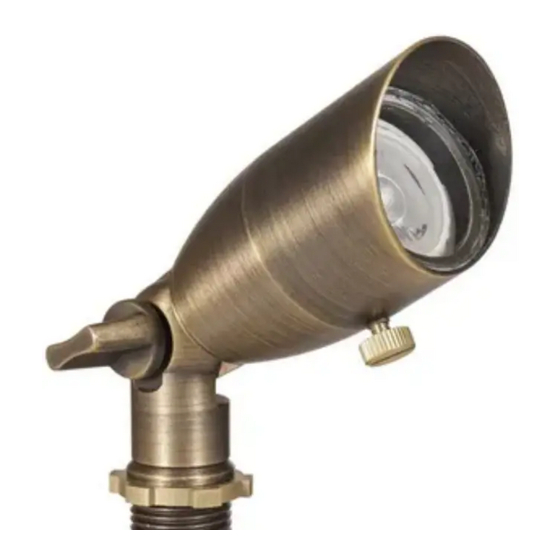

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® SleekPro MR11 Downlight (Lamp Ready) ® AAL-1034-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE ® SleekPro MR11 Downlight (Lamp Ready) AAL-1034-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and in-...
- Page 3 Package Contents A. Fixture Body B. Tool Parts Required (sold separately) A. Mounting Accessory B. (1) MR11 Bulb Product Dimensions 1.65” 2.1” 5” 3.75” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE ® SleekPro MR11 Downlight (Lamp Ready) AAL-1034-B-BZ Remove Glare Guard and Lens Loosen the set screw and remove the glare guard. Glare Guard Then twist and remove the lens from the fixture body. Lens Set Screw...
- Page 5 INSTALLATION & MAINTENANCE GUIDE ® SleekPro MR11 Downlight (Lamp Ready) AAL-1034-B-BZ Install Fixture Body to Mount Mount Lock Nut Fixture Body Supply Wire Pass the supply wire through the mount and thread the mount onto the fixture body. Tighten the lock nut against the mount and hand tighten until snug.
- Page 6 INSTALLATION & MAINTENANCE GUIDE ® SleekPro MR11 Downlight (Lamp Ready) AAL-1034-B-BZ Wire Connections UL Listed Wire Connectors Fixture Pigtail Main Supply Cable Strip both leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 7 Install/Replace Bulb Remove the glare guard and the lens to expose the MR11 bulb and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the lens and the glare guard. IMPORTANT: MR11 bulb must be protected from moisture and dust at all times.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1035-B-BZ-ver1.pdf...
