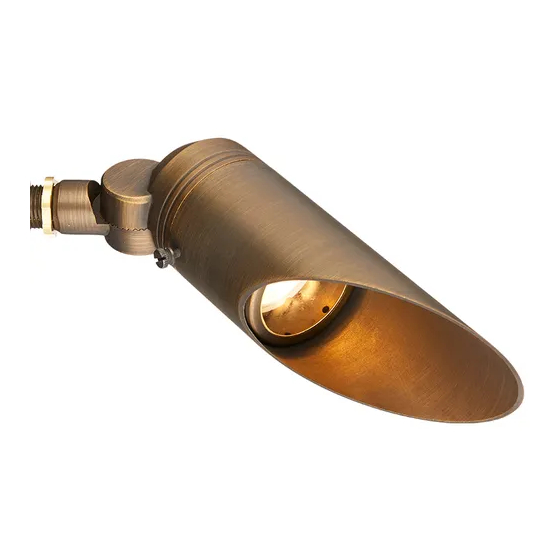

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® PinnaclePro Downlight ® AAL-1016-40-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE PinnaclePro Downlight ® AAL-1016-40-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body B. (1) Glare Guard C. (1) Allen Key Product Dimensions 2.5” 6.25” 7.63” 5” 3.25” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE PinnaclePro Downlight ® AAL-1016-40-B-BZ Install Fixture to Base Fixture Body Supply Wire Base Lock Nut Place the supply wire through the base and thread the base onto the fixture body. Make sure the gap on the base and the fixture body are in the same direction.
- Page 5 INSTALLATION & MAINTENANCE GUIDE PinnaclePro Downlight ® AAL-1016-40-B-BZ Wire Connection Wire Connectors Fixture Pigtail Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Remove Glare Guard Loosen the set screw and remove the glare guard from the fixture...
- Page 6 INSTALLATION & MAINTENANCE GUIDE PinnaclePro Downlight ® AAL-1016-40-B-BZ Install MR16 Bulb Insert the MR16 bulb with the correct wattage and type marked on the fixture label and secure Socket into place. CAUTION: Do not exceed maximum wattage marked on MR16 Bulb luminaire label.
- Page 7 Install Glare Guard Install the glare guard back onto Fixture Body the fixture body and secure with previously removed set screw. Hand tighten until snug. Set Screw Glare Guard Install Glare Guard Set Screw By using an Allen wrench, loosen Fixture Body the set screw on the knuckle and adjust the fixture body to...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1016-40-B-BZ-ver1.pdf...
