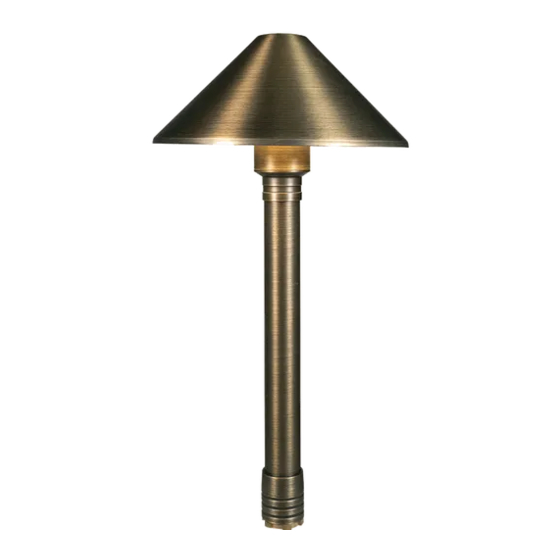

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Path Light with Light Ring ® AAR-X-I-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ Package Contents A. (1) Fixture Body Parts Sold Separately A. Mounting Accessory B. Hat Product Dimensions 9” 2.75” 22.5” customersupport@amplighting.com • 813.978.3900 - 3 -...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ Install Stake Determine the desired Board location for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the Stake stake, place a board on top of the stake while...
- Page 5 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ Wire Connections Fixture Wires Wire Connectors Main Supply Cable Strip both leads from the fixture wires. Using two UL listed wire connectors (sold separately), connect the leads from the fixture wires to the main supply cable leads. Install Spun Brass Hat (Option A) Remove the finial from Finial...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ Install Cast Brass Hat (Option B) Thread the hat of your choice onto the stem top. Hand tighten until snug. Note: For Cast Brass hats you will not need a finial to install the hat.
- Page 7 INSTALLATION & MAINTENANCE GUIDE Path Light with Light Ring ® AAR-X-I-B-BZ customersupport@amplighting.com • 813.978.3900 - 7 -...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2022, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 - 8 -...
