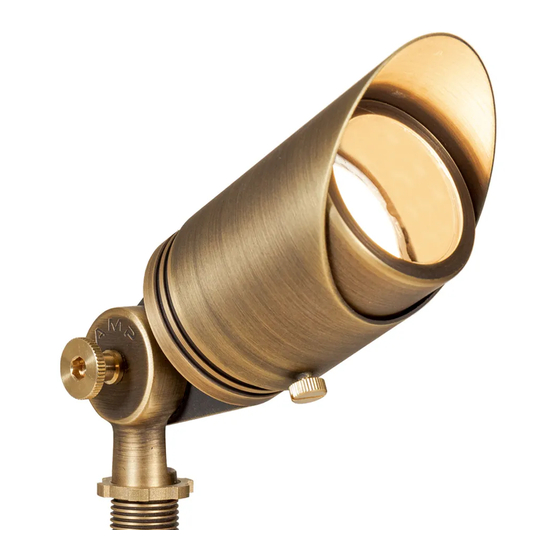

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® AggregatePro Spotlight ® AAL-1013-XX-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE AggregatePro Spotlight ® AAL-1013-XX-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture B. (1) Stake Product Dimensions 3” Remove Glare Guard Loosen the set screw and Glare remove the glare guard from the fixture. Guard Set Screw Fixture customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE AggregatePro Spotlight ® AAL-1013-XX-B-BZ Remove Lens Loosen the lens and remove it from the fixture. Lens Fixture Install Lamp Insert the lamp with the correct Socket wattage and type marked on the fixture label. CAUTION: Do not exceed maximum MR16 Lamp wattage marked on luminaire label.
- Page 5 INSTALLATION & MAINTENANCE GUIDE AggregatePro Spotlight ® AAL-1013-XX-B-BZ Install Lens Place the lens over the lamp and thread onto the fixture. Lens Fixture Install Glare Guard Attach the glare guard back onto the lens and secure with the set Glare screw.
- Page 6 INSTALLATION & MAINTENANCE GUIDE AggregatePro Spotlight ® AAL-1013-XX-B-BZ Install Stake Determine the desired location for Board mounting the fixture. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 7 Install Fixture to Stake Pigtail Main Supply Cable Wire Connectors Strip both the leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Install/Replace Lamp Loosen the set screw on glare guard, remove the glare guard and the lens to expose the lamp.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1013-XX-B-BZ-ver1.pdf...
