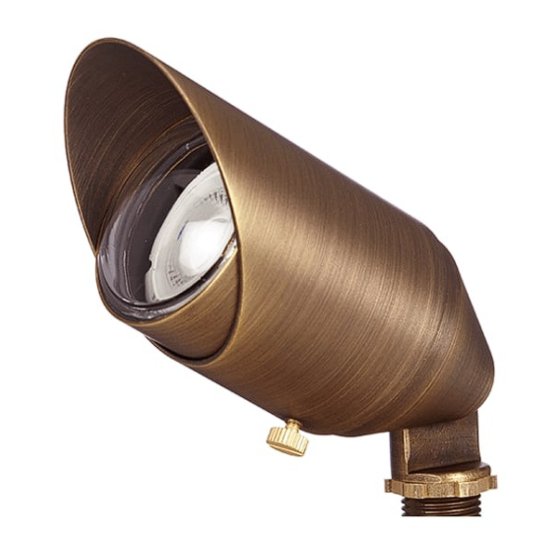

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® VariantPro Spotlight ® AAL-1010-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE Package Contents VariantPro Spotlight ® A. (1) Fixture AAL-1010-4-B-BZ B. (1) Stake Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and... - Page 3 INSTALLATION & MAINTENANCE GUIDE INSTALLATION & MAINTENANCE GUIDE VariantPro Spotlight ® VariantPro Spotlight ® AAL-1010-4-B-BZ AAL-1010-4-B-BZ Install Bulb Install Luminaire to Stake Insert the bulb with the correct Clear away an area in the ground Luminaire wattage and type marked on the at the wireway slot on top of the luminaire label.
- Page 4 INSTALLATION & MAINTENANCE GUIDE VariantPro Spotlight ® AAL-1010-4-B-BZ Install Glare Guard Place the glare guard onto the lens and secure it with the lock screw. Glare Guard Adjust the luminaire to the desired angle by using the set screw. Lock Screw...
- Page 5 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1010-4-B-BZ-ver1.pdf...
