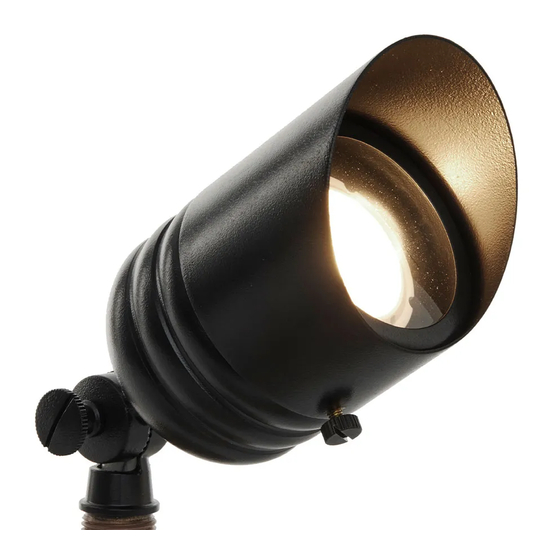

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® EcoPro MR16 Spotlight ® AAL-1012 Series Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE Package Contents EcoPro MR16 Spotlight ® A. (1) Fixture Body AAL-1012 Important Safety Instructions: Read Before Installation Product Dimensions This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the 2.72”... - Page 3 INSTALLATION & MAINTENANCE GUIDE Remove the Lens EcoPro MR16 Spotlight ® Unlock the set screw and remove AAL-1012 the lens from the fixture. Lens Install Fixture to Stake Set Screw Clear away an area in the ground at the wireway slot on top of the stake.
- Page 4 INSTALLATION & MAINTENANCE GUIDE Install/Replace Lamp EcoPro MR16 Spotlight ® Remove the glare guard and the lens to expose the MR16 lamp and replace it AAL-1012 with the correct wattage and type marked on the fixture label. Then, reinstall the lens and the glare guard. Install Lens IMPORTANT: MR16 lamp must be protected from moisture and dust at all Place the lens back onto the...
- Page 5 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1012 - 8 -...
