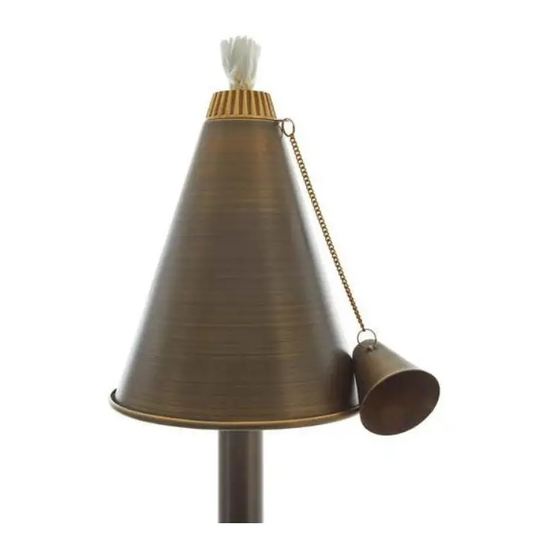

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® PolynesianPro ® AAR-3518-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE PolynesianPro ® AAR-3518-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Stem C. (1) Stake B. (1) Shade Assembly Product Dimensions 7.75” 11” 61” Install Stake Board Determine the desired location for mounting the luminaire. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION & MAINTENANCE GUIDE PolynesianPro ® AAR-3518-B-BZ Install Stem to Stake Clear away an area in the ground at the wireway slot on the top of the Stem stake. Lay the luminaire pigtail into the wireway slot and secure the stem onto the stake.
- Page 5 INSTALLATION & MAINTENANCE GUIDE PolynesianPro ® AAR-3518-B-BZ Install Bulb Insert the bulb with the correct wattage and type marked on the luminaire label. Bulb CAUTION: Do not exceed maximum Socket wattage marked on luminaire label. NOTE: DO NOT touch bulb with bare hands.
- Page 6 INSTALLATION & MAINTENANCE GUIDE PolynesianPro ® AAR-3518-B-BZ How to Fill Fuel Container Install Shade Remove the cap from the top end of the shade assembly. Shade Assembly Remove Shade Remove the washer with the cap and the shade from the fuel container by unscrewing the lid.
- Page 7 Fill Fuel Container Pour tiki fuel in the fixture’s fuel container as shown. Never use gasoline, kerosene, or other flammable fuels. Tiki Fuel Fuel Container Reinstall Shade and Cap Place the shade and the washer back onto the container. Insert the wick inside of the fuel container and tighten Wick the lid until snug.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021 AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAR-3518-B-BZ-ver1.pdf...
