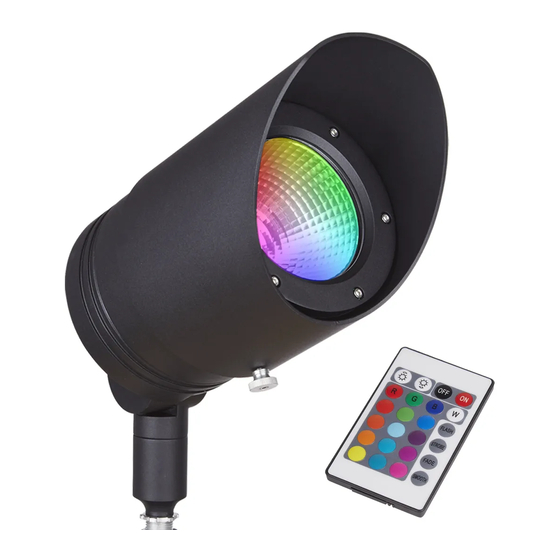

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body C. (1) IR Remote B. (1) Allen Wrench Products Model # Input Model Input Voltage Watt Current 15W Spotlight 1.2A Product Dimensions 10.5” 6.25” 5.6” customersupport@amplighting.com • 813.978.3900 –3–...
-
Page 4: Surface Mount
INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Surface Mount Mark points for Anchors Mark three points on the mounting surface using the holes on the base as guides. Fixture Body These marks will be used for anchors. -
Page 5: Wire Connection
INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Wire Connection Supply Wire Wire Connectors from Fixture Main Supply Cable Pigtail Strip both leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. - Page 6 INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Stake Mount Remove Base Unscrew the base and remove it from the fixture body. Fixture Body Base Install Stake and Conduit Ground Level Stabilizer Grid Conduit Stake Dig a hole in the ground for the conduit runs and the stake. Install the conduit.
- Page 7 INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Remove Cap from Stake Remove the cap from the stake Screw by loosening the set screws. Stake Install Cap to Fixture Thread the cap onto the fixture body and hand tighten until Fixture snug.
- Page 8 INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Wire Connection and Install Fixture to Stake Allow enough wire from the fixture for adjustment purposes. Strip both leads from the fixture pigtail. Using two UL listed wire Screw connectors (sold separately), UL Listed Wire...
- Page 9 INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK IR Remote An IR Remote is suitable for this fixture. Please refer to the following instructions for usage and battery replacement. Remove Plastic Film Remove the plastic film from the IR remote before use.
-
Page 10: Ir Remote Functions
INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK IR Remote Functions NOTE: When using the remote make sure it is pointed at the sensor on the back of the fixture so it operates properly. 1. On/Off 2. -
Page 11: Replace Battery
INSTALLATION & MAINTENANCE GUIDE RGBW Max PinnaclePro LED Spotlight (Dimmable) ® AAL-1037-A-BK Replace Battery Push the side of the battery bracket and carefully remove it from the IR remote. Replace the battery and then insert the IR Remote battery bracket back into the IR Backing remote. - Page 12 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1037-A-BK-ver1.pdf...
