Summary of Contents for AMP Lighting BulletPro MR8

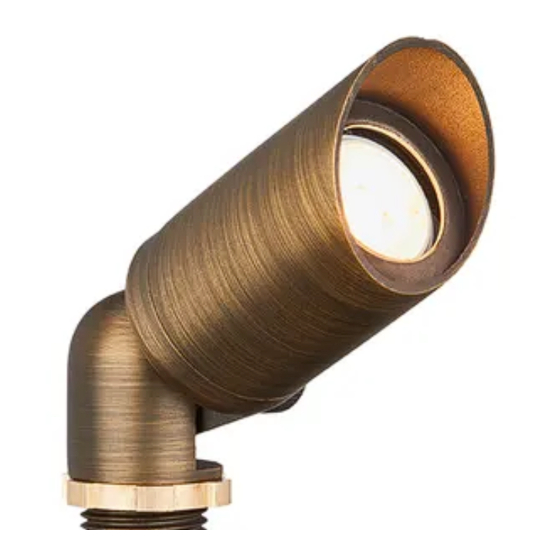

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® BulletPro MR8 Spotlight ® AAL-1033 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE BulletPro MR8 Spotlight ® AAL-1033 Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and in-...
- Page 3 Package Contents A. (1) Fixture Body Parts Required (sold separately) A. (1) MR8 Lamp Product Dimensions 1.4” 2.45” 3.4” 0.7” Install Stake Board Determine the desired location for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake Stake...
- Page 4 INSTALLATION & MAINTENANCE GUIDE BulletPro MR8 Spotlight ® AAL-1033 Install Fixture Body to Stake Pass the fixture wire through the center hole of the stake. Fixture Body Thread the fixture body onto Fixture Wire the stake and hand tighten until snug.
- Page 5 INSTALLATION & MAINTENANCE GUIDE BulletPro MR8 Spotlight ® AAL-1033 Remove Glare Guard Rotate the glare guard counter- clockwise to remove it from the Rotate fixture body. Glare Guard Fixture Body Install MR8 Bulb Insert the MR8 bulb with the correct wattage and type...
- Page 6 INSTALLATION & MAINTENANCE GUIDE BulletPro MR8 Spotlight ® AAL-1033 Adjust Direction Loosen the knuckle at the joint to adjust the luminaire to your de- Rotate Luminaire sired direction. Always tighten the knuckle once your desired direc- tion is achieved. Knuckle...
- Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1033-ver1.pdf...
