USER GUIDE
Atmel SAMDA1 Xplained Pro
Preface
The Atmel® SAMDA1 Xplained Pro evaluation kit is a hardware platform to evaluate the
SAMDA1J16A microcontroller.
Supported by the Atmel Studio integrated development platform, the kit provides easy
access to the features of the Atmel SAMDA1J16A and explains how to integrate the
device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board EmbeddedDebugger,
and no external tools are necessary to program or debug the SAMDA1J16A.
The Xplained Pro extension kits offer additional peripherals to extend the features of the
board and ease the development of custom designs
Advertisement
Table of Contents
Related Manuals for Atmel SAMDA1 Xplained Pro
Summary of Contents for Atmel SAMDA1 Xplained Pro
- Page 1 USER GUIDE Atmel SAMDA1 Xplained Pro Preface The Atmel® SAMDA1 Xplained Pro evaluation kit is a hardware platform to evaluate the SAMDA1J16A microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel SAMDA1J16A and explains how to integrate the device in a custom design.
-
Page 2: Table Of Contents
Serial Wire Debug .................. 16 4.3.2 Virtual COM Port ..................16 4.3.3 Atmel Data Gateway Interface ............... 16 Hardware Revision History and Known Issues ..........17 Identifying Product ID and Revision ..............17 ... -
Page 3: Introduction

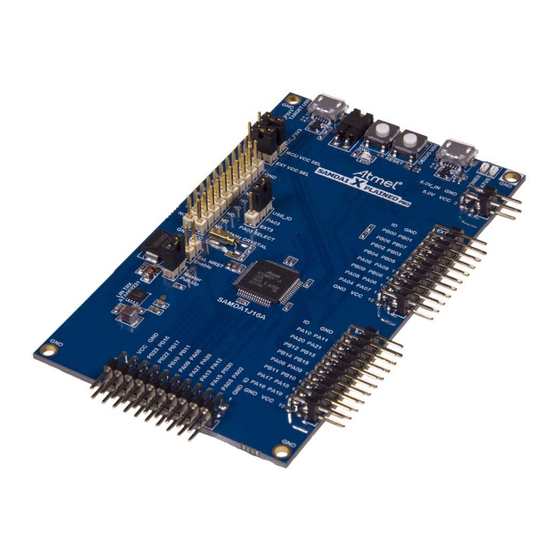

Kit Overview The SAMDA1 Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel SAMDA1J16A. The kit offers a set of features that enables the user to get started using SAMDA1J16A peripherals right away and to get an understanding of how to integrate the device in their own design. - Page 4 TARGET USB USER LED0 POWER PCB VCC SEL. HEADER HEADER EXT. VCC. SEL. HEADER HIGH VOLTAGE IO HEADER EXTENSION 1 HEADER PA3 SELECT JUMPER 32kHz CRYSTAL SAMDA1J16A-ABT EXTENSION 2 ATA663231FAQW LIN HEADER EXTENSION 3 HEADER Atmel SAMDA1 Xplained Pro [USERGUIDE]...
-
Page 5: Getting Started
Connect a Micro-B cable to the DEBUG USB port Connecting the Kit When connecting Atmel SAMDA1 Xplained Pro to your computer for the first time, the operating system will do a driver software installation. The driver file supports both 32-bit and 64-bit versions of Microsoft Windows ®... -
Page 6: Xplained Pro
When an Xplained Pro extension board is connected to an Xplained Pro MCU board the information is read and sent to Atmel Studio. The Atmel Kits extension, installed with Atmel Studio, will give relevant information, code examples and links to http://www.atmel.com/buy/default.aspx... -
Page 7: Power Supply
Power Source Selection The SAMDA1 Xplained Pro kit can be powered by: (1) USB, (2) an external power 5V or 3.3 VCC source through the 4- pin power header, marked PWR or by (3) a LIN 12VDC input connected to HV header VS_LIN pin. The 4-pin connector is described in “Xplained Pro Power Header”... -
Page 8: Measuring Sam Da1 Power Consumption
Table 3-4 below shows how MCU_VCC_SEL (MCU VCC Selection) and EXT_VCC_SEL (Extension VCC Selection) power headers can be used to select VCC source for SAMDA1J16A and EDBG MCUs. To select VS_LIN (12VDC) as the source of power for SAMDA1 Xplained Pro PCB connect pin1-2 on MCU_VCC_SEL header using a jumper. -
Page 9: Standard Headers And Connectors
Master out slave in line of Serial peripheral interface. Always SPI_MOSI implemented, bus type. Master in slave out line of Serial peripheral interface. Always SPI_MISO implemented, bus type. Clock for Serial peripheral interface. Always implemented, SPI_SCK bus type. Ground. Power for extension board. Atmel SAMDA1 Xplained Pro [USERGUIDE]... -
Page 10: Xplained Pro Power Header
Xplained Pro Power Header The power header can be used to connect external power to the SAMDA1 Xplained Pro kit. The kit will automatically detect and switch to the external power if supplied. The power header can also be used as a power supply for external peripherals or extension boards. -
Page 11: Hardware User Guide
4.1.1 I/O Extension Headers The SAMDA1 Xplained Pro headers EXT1, EXT2 and EXT3 offer access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. These headers all comply with the... - Page 12 The SERCOM4 module is shared between EXT1, 2 and 3 UART's, but uses different pins on EXT1 and EXT2/3 The SERCOM4 module is shared between EXT1, 2 and 3 UART's, but uses different pins on EXT1 and EXT2/3 Atmel SAMDA1 Xplained Pro [USERGUIDE]...
- Page 13 The SERCOM4 module is shared between EXT1, 2 and 3 UART's, but uses different pins on EXT1 and EXT2/3. The SERCOM4 module is shared between EXT1, 2 and 3 UART's, but uses different pins on EXT1 and EXT2/3. Atmel SAMDA1 Xplained Pro [USERGUIDE]...
-
Page 14: Peripherals
Crystal SAM DA1 The SAMDA1 Xplained Pro kit contains one crystal that can be used as clock source for the device. The crystal has a cut-strap next to it that can be used to measure the oscillator safety factor. This is done by cutting the strap and adding a resistor across the strap. -
Page 15: Mechanical Buttons
RESETN RESET PA15 4.2.3 There is one yellow LED available on the SAMDA1 Xplained Pro board that can be turned on and off. The LEDcan be activated by driving the connected I/O line to GND. External 32.768kHz Crystals Table 4-7. -
Page 16: Embedded Debugger Implementation
LIN nodes. Embedded Debugger Implementation SAMDA1 Xplained Pro contains an Embedded Debugger (EDBG) that can be used to program and debug the SAMDA1J16A using Serial Wire Debug (SWD). The Embedded Debugger also include a Virtual Com port interface... -
Page 17: Hardware Revision History And Known Issues
Part 15B) and EC in the EU (i.e. EN55022, EN55024 and AOC certificate). Note: In conjunction with the EC and FCC tests, SAMDA1 Xplained Pro was subjected to ESD testing. Upon ESD testing SAMDA1 Xplained Pro was restarted and resumed its normal operating condition. -
Page 18: Document Revision History
Document Revision History Document Date Comment revision XXXXXA 09/2015 Initial document release Atmel SAMDA1 Xplained Pro [USERGUIDE]... -
Page 19: Evaluation Board/Kit Important Notice
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns. - Page 20 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.
