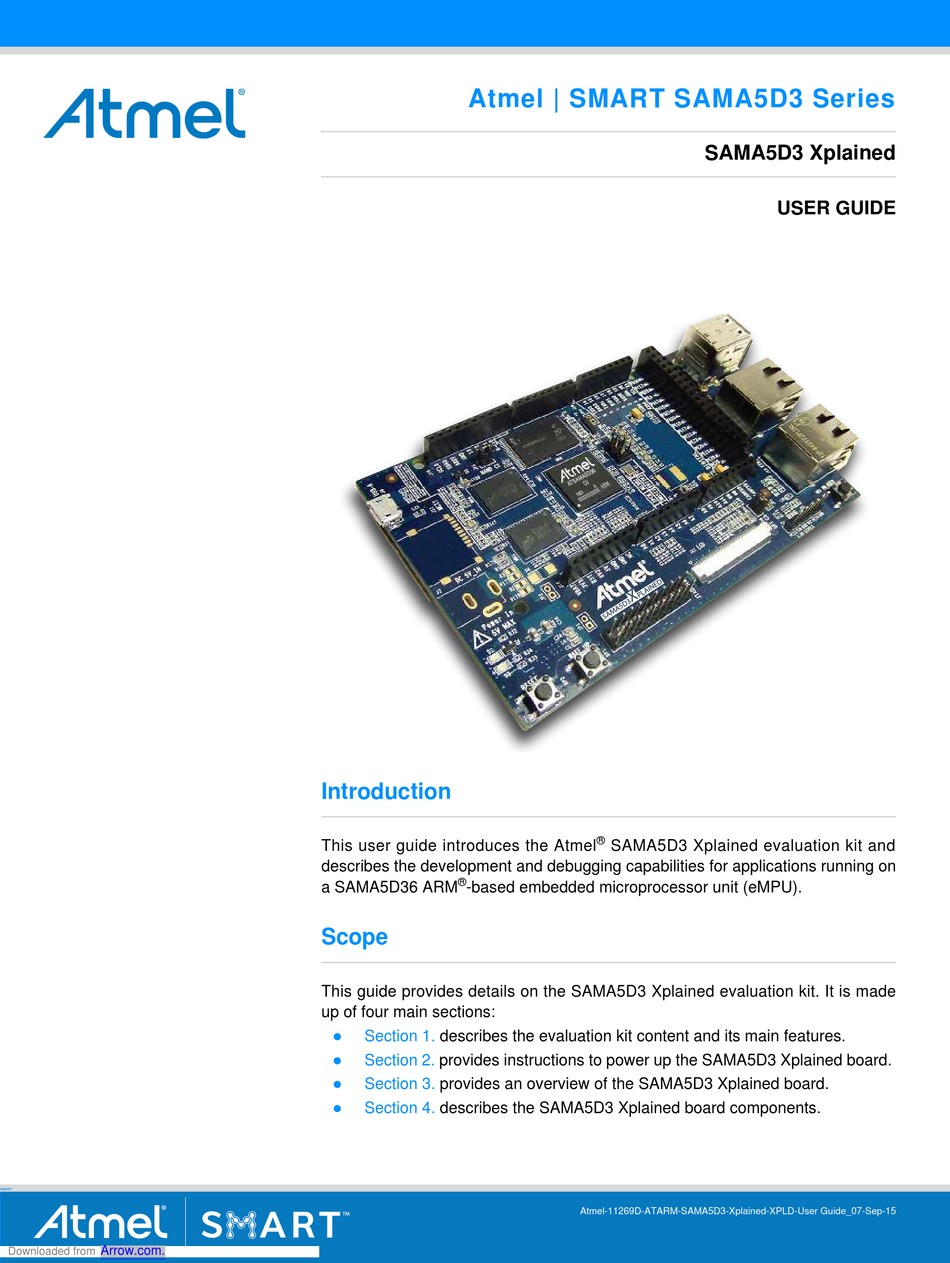

Atmel | SMART SAMA5D3 Series
Introduction
This user guide introduces the Atmel
describes the development and debugging capabilities for applications running on
®
a SAMA5D36 ARM
-based embedded microprocessor unit (eMPU).
Scope
This guide provides details on the SAMA5D3 Xplained evaluation kit. It is made
up of four main sections:
Section 1.
describes the evaluation kit content and its main features.
Section 2.
provides instructions to power up the SAMA5D3 Xplained board.
Section 3.
provides an overview of the SAMA5D3 Xplained board.
Section 4.
describes the SAMA5D3 Xplained board components.
SAMA5D3 Xplained
®
SAMA5D3 Xplained evaluation kit and
Atmel-11269D-ATARM-SAMA5D3-Xplained-XPLD-User Guide_07-Sep-15
USER GUIDE
