Owner's Guide
Thank you for purchasing your new Eureka vacuum!
Important instructions
For easy assembly, please take a few moments to read this
owner's guide.
If you have questions about your new vacuum, please
contact our customer service HELPLINE at 1-800-282-2886.
We're here to help!
www.eureka.com
Robotic vacuum cleaner; household type
NER650
Advertisement
Table of Contents
Related Manuals for Eureka NER650
Summary of Contents for Eureka NER650

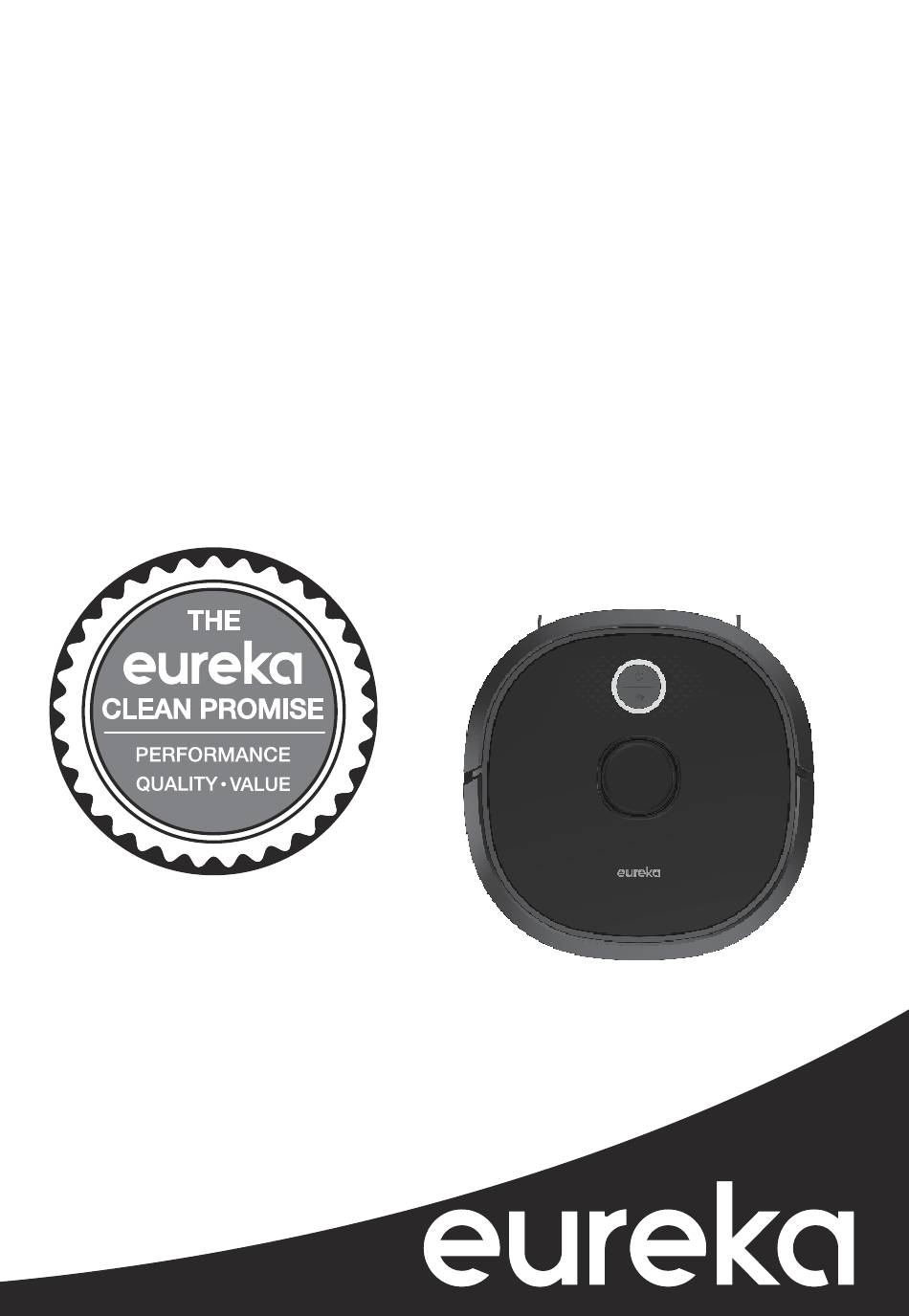

- Page 1 NER650 Robotic vacuum cleaner; household type Owner’s Guide Thank you for purchasing your new Eureka vacuum! Important instructions For easy assembly, please take a few moments to read this owner’s guide. If you have questions about your new vacuum, please contact our customer service HELPLINE at 1-800-282-2886.
-
Page 3: Table Of Contents
The Eureka limited warranty ........ -
Page 4: Important Safeguards
• Danger. Do not touch nozzle when heated surfaces. the vacuum cleaner is on. • This charger is not intended for use • Do not put any object into by travelers. openings. Do not use with any Eureka Customer Service HELPLINE 1-800-282-2886... - Page 5 Exposure to fire or • If a cell or a battery has leaked or temperature above 266°F may cause vented, it should be replaced explosion. immediately using protective gloves. • Follow all charging instructions and do not charge the battery pack or www.eureka.com...
- Page 6 • If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the charger. • Use only with eureka DC2106 docking station. • Docking station is only for use with the Eureka NER650 robot.
- Page 7 X is the symbol for the time/current characteristic as given in IEC 60127 [symbol IEC 60417-5032 alternating current ( 2002-10 )] [symbol IEC 60417-5172 class II equipment ( 2003-02 )] SAVE THESE INSTRUCTIONS Household use only www.eureka.com...
-
Page 8: Fcc Compliance Statement
- Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. Eureka Customer Service HELPLINE 1-800-282-2886... -
Page 9: Technical Data
TECHNICAL DATA Product Model: NER650 Host Charging Voltage: 16.7 V Host Rated Voltage:14.4 V Host Rated Power:55 W Docking Station Model:DC2106 Docking Station Input:100-240V~,50-60Hz, 24W Docking Station Output:16.7V , 1A Battery Model:BP14433A Battery Rated Voltage:14.4V Battery Capacity:3350mAh 48.24Wh Charging Limit Voltage:16.8V Midea America Corp 300 Kimball Drive Parsippany NJ 07054, U.S.A... -
Page 10: What Comes In The Box
Parts and Components What comes in the box Robot (Vacuum) Left Right Charging dock Charger 2 Spinning side brushes Owner’s Manual Filter Brush cleaning tool Owner’s manual (located on top of dustbin) Eureka Customer Service HELPLINE 1-800-282-2886... -
Page 11: How To Identify Parts Of Your Robot
3 seconds; the power indicator begins When the robot is on, to start the robot cleaning, to flash. The cleaner makes a chord sound, and when press the power button. the power indicator turns off, the robot shuts down successfully. www.eureka.com... -
Page 12: Assembling And Charging Robot
End B Connect the end of the charger into the port on the lower right side of the dock ensuring that it is securely attached. Then plug other end of the charger into a power outlet. Eureka Customer Service HELPLINE 1-800-282-2886... - Page 13 Once the robot has completed its mapping mission you can create cleaning zones if you would like to set up cleaning in special areas such as high traffic spots, add no-go zones and set cleaning schedules that correspond to the specific areas in your house. www.eureka.com...
-
Page 14: How To Use Your Robot
The robot will enter sleep mode after being in standby mode for more than 10 minutes. When in the sleep mode, press any key will wake up the robot. The power indicator flashes to signal that the battery is charging and is on continuously when the battery is fully charged. Eureka Customer Service HELPLINE 1-800-282-2886... -
Page 15: How To Set Up App, Connect Wi-Fi And Use App
3. Enable the Eureka robot skill 4. Your Eureka robot app will then open and you 4. Your Eureka robot app will then open and you will will login using your Eureka robot app credentials login using your Eureka robot app credentials 5. -
Page 16: How To Maintain Your Robot
How to maintain brushroll Washable brushroll – clean frequently Make sure robot is turned off and not plugged into a power source. Do not attempt to remove belt. Call the Eureka Customer Service HELPLINE at 1-800-282-2886. Cleaning tools Cleaning tools are located above the... - Page 17 Sensor and charging contact point cleaning (weekly cleaning recommended) Use soft cloth to slightly wipe the sensors and remove dust from its surface Use soft cloth to slightly wipe charger contact points to ensure normal charging www.eureka.com...
-
Page 18: The Eureka Limited Warranty
Eureka authorized resellers. Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. Repairs may be performed using new Eureka will, at its option, repair or replace a defective Battery Module or or refurbished parts that meet or exceed Eureka specifications for new... -
Page 19: Troubleshooting
Clean dust from the front sensors and bottom sensors on the robot. Robot speaker not - Turn off the silence mode in the App. - Turn up the volume in the Eureka App. working - Reconnect the robot to Wi-Fi. - Restart the router. - Page 20 - In "Setup" menu items, click "Device Info Item", then click "Sync Now" under the time zone section to ensure robot is programmed to your correct time zone. Eureka Customer Service HELPLINE 1-800-282-2886...
- Page 21 - Clean dust from radar sensors. - Turn over the robot, check whether anything is stuck or entangled in the wheels Robot goes in circles and remove it. www.eureka.com...
-
Page 22: Disposal Of Robot And Battery Pack
This product contains a lithium-ion battery. It must be disposed of properly. Local laws may prohibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options. Eureka Customer Service HELPLINE 1-800-282-2886... -
Page 23: How To Order Replacement Parts
Charger R2016 Charging dock R2017 Filter R2018 Side brush set R2019 Roller brush R2020 Free 3 months extension of the original limited warranty period! Just text proof of purchase to 844 224 1614 * The extension is for the three months immediately following the completion of the product’s original warranty period.
