Mac Plus – User and Installation Manual

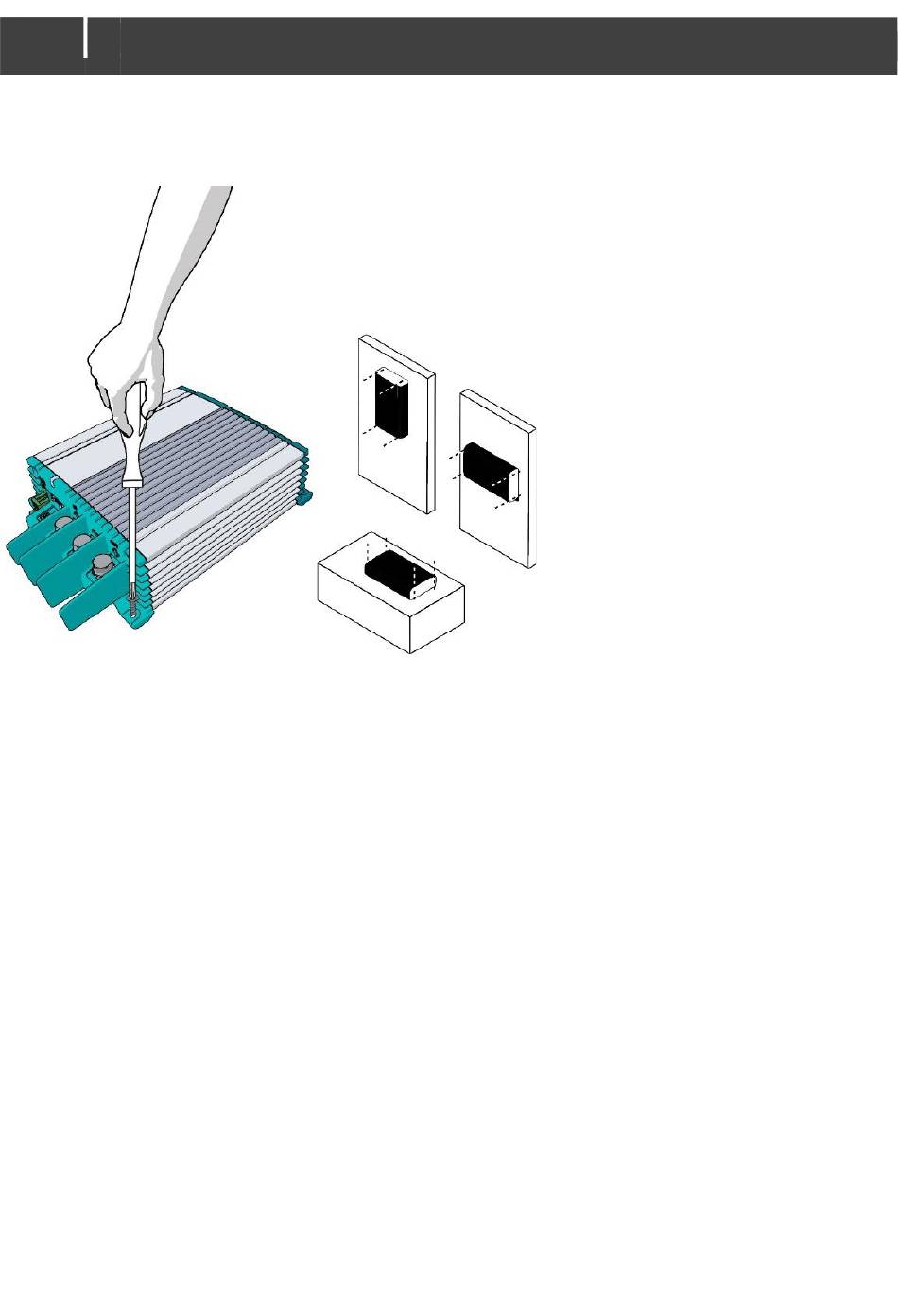

5. Placement and mounting

Mount the Mac Plus with four M5 screws to a solid flat surface.

Adding the Mac Plus to a MasterBus network

Precondition: This section assumes that a MasterBus network is already installed.
1. Disconnect a MasterBus cable or Terminator from the closest MasterBus device and connect it
to the Mac Plus.
2. Connect the new MasterBus cable to the other MasterBus device and then connect to the Mac
Plus.

Adding the Mac Plus to a CZone network

Precondition: This section assumes that a CZone backbone is already installed.
1. Disconnect the backbone at the closest backbone connection and add in a tee connector.
2. Reconnect the backbone connection(s) with the new tee connector in place.
3. Connect the RJ45 CZone/MB drop cable to the black coupler on the tee and then connect to the
Mac Plus.
