- Page 1 COMBIMASTER 230V Series INVERTER CHARGER COMBINATION WITH AC–IN SUPPORT USER AND INSTALLATION MANUAL 10000015079/03 To download this manual in other languages, please visit our website: www.mastervolt.com...
-
Page 2: Table Of Contents
CombiMaster 230V Series – User and Installation Manual TABLE OF CONTENTS 4.7 Installation step-by-step ........11 1 SAFETY INSTRUCTIONS .......... 3 4.8 Accessories connector (dry contacts) ....14 1.1 Intended purpose ..........3 4.8.1 Remote switch........14 1.2 General ............... 3 4.8.2 Alarm output ........... -
Page 3: Safety Instructions
To reduce risk of fire hazard, do not cover or obstruct the ventilation openings. Do not install the CombiMaster in a non-ventilated room, as overheating may result. Use of an accessory or spare part not recommended or sold by Mastervolt may result in a risk of fire, electric shock, or personal injury. -
Page 4: Grounding Instructions
Do not set a battery on top of the CombiMaster. Warning regarding life support applications Mastervolt products are not designed to be used as component of medical equipment, unless negotiated in the form of a written agreement between customer and/or manufacturer and Mastervolt. Such agreement will require the equipment manufacturer either to contract additional reliability testing of the Mastervolt parts and/or to commit to undertake such testing as a part of the manufacturing process. -
Page 5: General Information
Warranty The Mastervolt product warranty covers the CombiMaster 230V Series for the first two years after the purchase date, on the condition that the product is installed and used according to the instructions in this manual. Installation or use that do not comply with these instructions may result in under performance, damage or failure of the product and may void this warranty. -
Page 6: Product Description

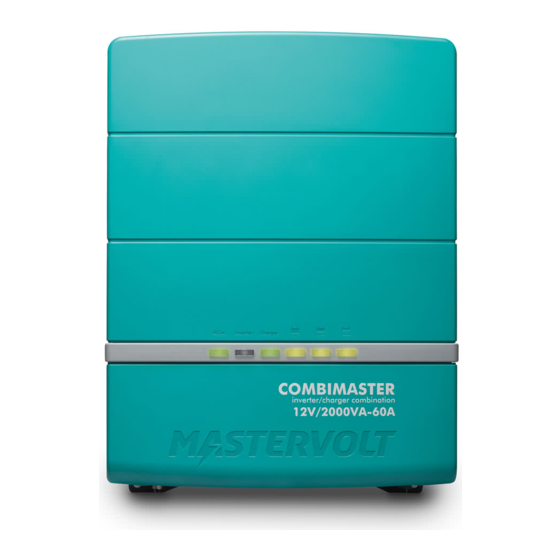

CombiMaster 230V Series – User and Installation Manual 3 PRODUCT DESCRIPTION The CombiMaster is a multifunctional charger inverter. It combines an inverter, a battery charger and an AC transfer switch. Overview of the connections Front side with open connection compartment... -
Page 7: Remote Control
CombiMaster 230V Series – User and Installation Manual • Power sharing mode: The CombiMaster automatically reduces its battery charger output when the load connected to AC OUT increases while the available power at AC IN is limited. This avoids the external AC circuit breaker from tripping. The power sharing level, i.e. -
Page 8: Installation
CombiMaster 230V Series – User and Installation Manual 4 INSTALLATION Unpacking The delivery includes: • CombiMaster • 1× Temperature sensor • 1× MasterBus terminator • 1× Drop cable CZone/MB (1m) • Mounting bracket • User and installation manual After unpacking, check the contents for possible damage. Do not use the product if it is damaged. If in doubt, contact your supplier. -
Page 9: Connection Example
CombiMaster 230V Series – User and Installation Manual Connection example Note: This schematic illustrates the general placement of the CombiMaster in a circuit. It is not meant to provide detailed wiring instructions for any particular electrical installation. Figure 3: Installation drawing CombiMaster... -
Page 10: Ac Wiring
MasterBus, use a MasterBus cable and daisy chain the CombiMaster to the other devices. Both networks need a terminating device on both ends of the network. Do not make ring networks. For more details on networks, please contact your Mastervolt supplier. -
Page 11: Installation Step-By-Step
CombiMaster 230V Series – User and Installation Manual • For CZone setup, an RJ45-M12 Drop cable CZone/MB (included) and a tee connector (not included). • For MasterBus setup, an RJ45 MasterBus cable (not included). • DC cables to connect the CombiMaster to the batteries and common negative. See section 4.5.1 for specifications. - Page 12 CombiMaster 230V Series – User and Installation Manual Step 5. Connect the M6 grounding lug to the central grounding point. Step 6. Open the connection compartment by loosening the two screws at the bottom and then lifting the front cover plate.
- Page 13 CombiMaster 230V Series – User and Installation Manual Step 9. Attach the battery temperature sensor to the casing of the battery bank. Then plug the temperature sensor cable into the “temp.sensor” jack. Note: Lithium-ion batteries require no temperature sensor. Step 10. On the left side of the CombiMaster check the jumper selecting the grounding system.
-
Page 14: Accessories Connector (Dry Contacts)
CombiMaster 230V Series – User and Installation Manual Accessories connector (dry contacts) The screw terminal at the bottom side of the CombiMaster, offers the following contacts: Remote switch input Alarm output 4.8.1 Remote switch By default, the upper two contacts (Remote) of the accessories connector are connected by a jumper to close the circuit. If desired, use these contacts to connect a remote switch that mimics the main On/Charge only switch. -
Page 15: System Integration (Czone/Masterbus)
Use an RJ45 MasterBus cable (not included) and daisy chain the CombiMaster to the other MasterBus devices, forming a local data network. Points to consider: ˗ Connections between the devices are made by standard MasterBus cables (straight UTP). Mastervolt can supply these cables. ˗ Up to 63 MasterBus devices can be connected together. -
Page 16: Settings
Energy saving mode on MasterBus configuration MasterBus is a CAN based data network for communication between Mastervolt devices. When the CombiMaster is connected, open MasterAdjust on a Windows laptop or notebook connected to the MasterBus network via a MasterBus USB interface. -
Page 17: Monitoring
5.2.4 Configuration Settings The configuration can be done in MasterAdjust, from a laptop or notebook connected to the CombiMaster via a Mastervolt USB Interface. See applicable user manuals for details. The following table lists the parameters as shown in MasterAdjust. -
Page 18: Events - System Automation
CombiMaster 230V Series – User and Installation Manual Value Meaning Default Adjustable Range Lock config. Option to lock the configuration (installer level) On, Off Factory reset Button to restore the configuration's default values On, Off button Inverter Energy save Option to enable Energy save mode... -
Page 19: Czone Configuration
CombiMaster 230V Series – User and Installation Manual Meaning Value Field Event x source Select an event that triggers an action, for example Battery pre low. See Event source list Event x target Select the device that should take action, for example the generator... -
Page 20: Operation
CombiMaster 230V Series – User and Installation Manual 6 OPERATION Switching On / Charge only The main switch on the bottom of the CombiMaster has two positions: • Inverter and charger on (I) • Charge only, inverter off (). Note: When the main switch is in this position (), it consumes 1mA DC power when not connected to AC. Switching off the inverter remotely, increases the DC power consumption. -
Page 21: Temperature Compensated Charging
WARNING The MLI charging voltages on this charger fit the Mastervolt Li-ion (MLI) batteries but do not necessarily fit other Li- ion batteries! Always follow the instructions provided by the battery manufacturer! -
Page 22: Reset The Thermal Fuse After An Overload
CombiMaster 230V Series – User and Installation Manual Reset the thermal fuse after an overload A 30A thermal fuse protects the transfer switch of the CombiMaster against overload. If the status LEDs indicate an overload, proceed as follows: Step 1. Turn AC power off. -
Page 23: Troubleshooting
CombiMaster 230V Series – User and Installation Manual 7 TROUBLESHOOTING If you cannot solve a problem using the fault finding table, contact your supplier or Mastervolt. Make sure you have the part and serial number at hand. Malfunction Possible cause... -
Page 24: Technical Data
CombiMaster 230V Series – User and Installation Manual 8 TECHNICAL DATA Specifications are subject to change without prior notice. Specifications inverter Model 12V/2000VA-60A 24V/2000VA-40A 12V/3000VA-100A 24V/3000VA-60A Part number/product code 35012000 35022000 35013000 35023000 Nominal battery voltage Inverter output voltage 230V... -
Page 25: Specifications Transfer System
CombiMaster 230V Series – User and Installation Manual Note: the following charge specifications are based on Mastervolt batteries. Specifications for a given chemistry of a different manufacturer may vary. If connecting batteries of a different manufacturer make sure the manufacturer's recommenda- tions are met. -
Page 26: Miscellaneous
CombiMaster 230V Series – User and Installation Manual Miscellaneous Model 12V/2000VA-60A 24V/2000VA-40A 12V/3000VA-100A 24V/3000VA-60A 378×284×155 378×284×155 448×284×155 448×284×155 Dimensions in mm Weight in kg Protection degree IP 23 vertical mounted, IP 21 horizontal mounted Safety class IEC protection class I... -
Page 27: Dimensions
CombiMaster 230V Series – User and Installation Manual Dimensions 12V/2000VA-60A and 24V/2000VA-40A 284 [11.2] 153 [6.0] 150 [5.9] 240 [9.5] 12V/3000VA-100A and 24V/3000VA-60A 153 [6.0] 284 [11.2] 150 [5.9] 240 [9.5] Figure 8: Dimensions in mm [inches]... - Page 28 N86 W12500 Westbrook Crossing 42 Apollo Drive, Rosedale 1105 AN AMSTERDAM Menomonee Falls, WISCONSIN 53051 AUCKLAND 0632 The Netherlands New Zealand +31 (0)20 34 22 100 +1 800 307 6702, Option 1 + 64 9 415 7261 info@mastervolt.com technical@marinco.com enquiries@bepmarine.com...
